LIFTING - Caldwell Main Catalogue

Section F

CALDDWELL 202109-197 copy.jpg

Load Leveling Slings

Plate Clamps

Clamps, Grabs & Tongs

Pipe & Manhole Handling

Bent Bar Products

Lifting Magnets

Lifting & Spreader
Beams

Special Applications

Synthetic Sling End
Fittings

RIG-MASTER®

Rigging Attachments


CALDDWELL 202109-198 copy.jpg

Index to Rig-Master® Rigging Attachments

Standard Applications


CALDDWELL 202109-199 copy.jpg

Quality & Engineering

The Caldwell Group has been manufacturing lifting equipment since 1954. It is our goal to manufacture high quality, long lasting lifting products that will safely increase productivity and reduce operating costs.


Benefits Your Company Receives With A Caldwell Lifter:
• Increased productivity.
• Low cost maintenance.
• Increased safety of an engineered product.
• Reliability and durability for long lasting service.


Caldwell Rigging Attachments Have:
• Identification nameplate.
• Rated capacity.
• Product safety labels.



Caldwell’s Standard Quality Assurance
To have your new Caldwell lifter proof tested and a certificate issued, please specify (there is a nominal charge).


Industry Standards
The American Society of Mechanical Engineers (ASME) has developed standards that apply specifically to these types of devices. ASME B30.20 provides detailed information on the classifications, marking, construction, installation, inspection, testing, maintenance and operation of below the hook lifting devices. ASME BTH-1 provides detailed information on the design criteria of below the hook lifting devices. ASME B30.9 provides detailed information on the fabrication, markings, usage, inspection and maintenance of lifting slings. These standards serve as a guide to government authorities, manufacturers, purchasers and users of lifting devices.

DISCLAIMER:
All product designs are subject to change without notice. Products pictures in this catalogue are a representation of a specific design. The product you purchase will be designed for your specific application and may not look exactly like the picture in this catalogue.











CALDDWELL 202109-200 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• New, compact & rugged design holds up to the work environment where barriers are used.
• Handles concrete barriers from 6” - 12” nominal width at the top of the barrier.
• Stainless steel Auto-Latch.
• Auto-Latch mounting insures proper alignment.
• Locating assembly orientates tong on barrier without operator intervention.
• Gripping pads pivot to conform with the load.
• Replaceable polyurethane pads protect barrier.
• Alloy steel dog-point pads bite into painted barrier surfaces (typical in coastal areas).
• Centering guide cut out on grab shoe helps to properly center tong over barrier for a level lift.
• Extended handles on each side keep operator away from load and can be adjusted as needed.
• Lifting eye allows for easy hook attachment, self-centers rigging, and will accommodate a fork.
• Designed and manufactured to ASME B30.20, BTH-1, design category B, service class 3.

Model BLG - Barrier Grabs

Operation

CALDDWELL 202109-201 copy.jpg

Clamps, Grabs & Tongs

OPTION FEATURES:
• Bolt in place for easy field installation and replacement
• Protects barrier from damaged caused by the grab,
increasing barrier life.

Model BLG - Barrier Grab Options

Optional Barrier Grab Rest Pad

OPTION FEATURES:
• Attach two Barrier Grabs, and expand your barrier handling capabilities.
• Handles barriers up to 40’ in length.
• Beams can be used for other material handling applications when Barrier Grabs are removed.

Each Stabilizing Kit Consists of:*
1 - Model 20 Lifting Beam
1 - Set of attaching hardware
*Barrier Grabs Sold Separately

Optional Stabilizing Kit

BLG-4.1/4-E Kit
Entire Unit Rated
Capacity: 17,000 lbs.
Designed for barriers
12' or longer.

CALDDWELL 202109-202 copy.jpg

Optional Stabilizing Kit

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• Heavy-duty design to withstand rugged, high-cycle environments.
• Infinitely adjustable within range.
• Fully adjustable stainless steel Auto-Latch.
• Locating assembly orientates grab on load without operator intervention.
• Replaceable polyurethane pads protect load from lifter damage.
• Color-coded decal indicates the amount of travel remaining for each adjustment.
• Position indicating decals for easy adjustment.
• Extended handles keep operator away from load and can be adjusted as needed.
• Optional hardened alloy steel dog points available.
• Lifting eye allows for easy hook attachment, self-centers rigging, and will accommodate a fork.
• Designed and manufactured to ASME B30.20, .63 BTH-1, service class 3.

Model ALG - Adjustable Lifting Grab

Optional Stabilizing Kit

6” Barriers

One-Sided

Inside

Round

Ingot

12” Barriers

Big Blocks

CALDDWELL 202109-203 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• Heavy duty design.
• These grabs provide an efficient method for handling wide flange beam sections and plate girders.
• Clamps have a recessed base to accept studs welded to a beam’s surface.
• Beam grabs eliminate the need for slings or chokers.
• Use only for vertical lifting.
• For longer beams or girders, use units in pairs in conjunction with a spreader/lifting beam.
• Complies with ASME standards.

Model F - Beam Grabs

Operation

Lower grab onto the beam and, if necessary, lift tong arms to allow them to slide under flanges of the beam. When the clamp is lifted, its center plate and gripping tongs work against each other... the heavier the beam, the greater the clamping pressure.

CALDDWELL 202109-204 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• Custom designed for your application.
• Heavy duty grab handles wide flange beam sections and plate girders.
• Dog points on base furnish positive grip between grab and beam.
• Hook design assures contact to the beam flange or girder.
• Both hooks have chain holes - attach chain slings and use for opening hooks.
• Adjustable hook positions fit a set range of flange widths.
• For long loads, use two heavy-duty beam clamps and one spreader beam.
• Complies with ASME standards.

Model F - Beam Grabs - Extended Capacity

For a price quote on your specific application,
please complete the above form and contact us

CALDDWELL 202109-205 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• These clamps provide an efficient method for handling wide flange beam sections and plate girders.
• Screw-spindle design ensures positive grip.
• Simple design ensures minimum maintenance.
• Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
• Jaw opening adjusts to a wide range of beam types and flange widths.
• Use only for vertical lifting.
• Complies with ASME standards.

Model BLG - Barrier Grabs

Operation

For lifting and positioning structural beams. Can be used in pairs in conjunction with a spreader beam for additional stability.

CALDDWELL 202109-206 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• Designed to accommodate side load applications.
• Full rated capacity at any lifting angle.
• Low headroom design.
• Securely grips beam web and flange.
• Use for lifting or hanging.
• Complies with ASME B30.20 and BTH-1.

Model BLG - Barrier Grabs

Operation

CALDDWELL 202109-207 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• Rated load capacities from 1 to 10 metric tons.
• Proof test with certificate.
• Lightweight and portable design.
• Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
• Lock nut prevents inadvertent loosening of clamp.
• Jaw opening adjusts to a wide range of beam types and flange widths.
• Use only for vertical loading.
• Built-in suspension pin provides lower headroom.
• Powder coated finish.
• Available with Large Bail option for oversized hoist hooks.
• 5:1 design factor meets portions of ASME B30.16.
• Complies with ASME B30.20 and BTH-1 standards.

Model BFC - Beam Flange Clamps

Operation

Allows for the capability of hanging hoists or rigging from an overhead load bearing structure.

For lifting and positioning structural beams. Can be used in pairs in conjunction with a spreader beam for additional versatility.

CALDDWELL 202109-208 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• Rated load capacity of one ton.
• Economical and convenient.
• Lightweight and portable design, high strength construction.
• Use only for vertical lifting.
• Complies with ASME standards.

Model BC - Beam Clamp

PRODUCT FEATURES:
• Tong provided with lifting shackle.
• Load must be balanced and controlled when lifting.
• Use only for vertical lifting.
• For added stability when handling longer loads, use in pairs with a spreader beam.
• Complies with ASME standards.

Model BC - Beam Clamp

CALDDWELL 202109-209 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• Rail Tongs are designed to handle all standard size rails.
• Tongs are provided with non-slip machined diamond face gripping pads.
• Load must be balanced and controlled when lifting.
• Complies with ASME standards.

Model RLT - Rail Tongs

PRODUCT FEATURES:
• Used for moving hard to reach loaded pallets from flat surfaces, such as truck trailers or loading docks.
• Extends reaching capability of the fork lift truck.
• Single scissor action.
• Heavy duty steel design.
• Not for overhead lifting.
• Working load limit 1,250 pounds.
• 3/8” proof coil chain.

Model MPP - Pallet Puller






CALDDWELL 202109-210 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• Designed for lifting dry slabs of concrete, stone, or metal that must be protected from scratching or marring.
• Use in construction work to position slabs.
• The curved pads give proper contact for gripping smooth surfaces and handling a large range of sizes.
• Polyurethane gripping surfaces are standard.
• A manual latch is standard and locks the tong arms for easy placement on the load.
• Complies with ASME standards.

Model ST - Slab Tongs

PRODUCT FEATURES:
• Designed for handling cured concrete products.
• Automatically adjusts to the load size.
• Easy to release manual latch.
• Pivoting pads align with load surface for proper contact.
• Polyurethane pads grip surface without damage.
• Complies with ASME standards.

Model 172 - Concrete Pressure Tong with Urethane Pads

CALDDWELL 202109-211 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• Designed for handling cured concrete products.
• Automatically adjusts to the load size.
• Easy to release manual latch.
• Serrated steel cams securely grip the load.
• Pads can be rotated for longer field life.
• Complies with ASME standards

Model 173 - Concrete Pressure Tong with Grip Teeth

PRODUCT FEATURES:
• Designed for handling cured concrete products.
• Multiple adjusting ranges.
• Pivoting pads align with the load surface for proper contact.
• Adjustable lifting point to ensure a balanced lift.
• Complies with ASME standards

Model 176 - Concrete Pressure Tong with Urethane Pads

CALDDWELL 202109-212 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• High quality lifting clamps designed to pick and place prefabricated wall panels used in housing and building construction.
• Designed to lift panels from a horizontal to a vertical position only.
• Locking mechanism prevents the clamp from releasing while loaded.
• The 50' release rope allows the operator to release the clamp from the top of the panel once the load is set and secured.
• Lower lifting plate has an open design so it will clear nails or bolts.
• Complies with ASME standards.

Model WP - Wall Pick

Operation

CALDDWELL 202109-213 copy.jpg

Clamps, Grabs & Tongs

PRODUCT FEATURES:
• This vertical drum grab is ideal for handling open or closed-headed steel* drums.
• No fasteners, binders, or rings to put around drum.
• Grab allows drums to be closely stored to maximize floor space.
• Grab will not damage drum.
• Complies with ASME standards.



Model VDG - Vertical Drum Grab

PRODUCT FEATURES:
• Vertically lift and transport metal drums.
• Lock secures clamp tightly to the drum.
• Built-in rim brackets for easy alignment.

Model VDC - Vertical Drum Clamp

The Model VDC is used for vertical lifting and transporting of metal drums. Equipped with a past center locking device which secures the clamp tightly to the drum. The Model VDC is capable of handling one drum at a time.

*Not recommended for open steel drums containing free flowing liquids or drums with removable lid affixed with a tension band.

CALDDWELL 202109-214 copy.jpg

Pipe & Manhole Handling

PRODUCT FEATURES:
• An efficient way to handle concrete water and sewer pipes.
• The Caldwell “Tea Cup” Pipe Carrier will save you time and money.
• Three sizes available, to handle from 3/4” to 1-1/2” cable, and lift up
to 18 tons.
• Optional “Spoon Handle” allows the PC-3/4 “Tea Cup” to be guided
into small diameter pipes.
• Complies with ASME standards.

Model PC - “Tea Cup” Pipe Carrier

Same quality engineering as the standard model plus:



PRODUCT FEATURES:
• Only wire rope needs to be inserted through pipe.

Model 176 - Concrete Pressure Tong with Urethane Pads



CALDDWELL 202109-215 copy.jpg

Pipe & Manhole Handling

OPTION LS - “Tea Cup” Lifting Sling

“Tea Cup” Pipe Carrier Options

OPTION SH - “Spoon Handle”

Operation

CALDDWELL 202109-216 copy.jpg

Pipe & Manhole Handling

The patented concrete Pipe Pick™ is a quicker, safer, and cleaner way of handling precast concrete pipe.

PRODUCT FEATURES:
• Simple and fast.
• No need to reach inside the pipe.
• Worker remains above the pipe at all times.

Model CPP - Pipe Pick™




CALDDWELL 202109-217 copy.jpg

Pipe & Manhole Handling

Simply insert the Pipe Pick™ into the lifting hole in the pipe — tilt — to engage the beveled edge — and lift up! You can now lift and set the pipe.

Model CPP - Pipe Pick™

To remove the Pipe Pick™ once the pipe is set, lower the Pipe Pick™; the counter weighted lift arm automatically falls straight and the Pipe Pick™ can be removed from the pipe.

CALDDWELL 202109-218 copy.jpg

Pipe & Manhole Handling

Lets you place and position concrete pipe up to 8' in length in one operation.

PRODUCT FEATURES:
• Stand-up leveling bail adjusts for varying pipe lengths.
• Adjustable bail stop makes repetitive lifts easy to handle.
• Pipe stop helps drive the pipe into position.
• Built-in laser target holder allows operator to set & laser position at the same time.*
• Positioning handle.
• Complies with ASME standards.

Model CPL - Leveling Pipe Lifter

Operation

CALDDWELL 202109-219 copy.jpg

Pipe & Manhole Handling

PRODUCT FEATURES:
• Handle concrete pipe efficiently without damage to concrete seat.
• Legs can be quickly positioned to safely balance the load.
• 2 or 3 leg models available.
• Handles 4" – 6" concrete wall thickness.
• Requires constant tension to maintain positive load contact.
• Complies with ASME standards.

Model MHL - Concrete Manhole Housing Lifter

Operation

CALDDWELL 202109-220 copy.jpg

Pipe & Manhole Handling

PRODUCT FEATURES:
• Quick and efficient way to place cast manhole sleeves.
• Easily attaches to and releases from the load.
• 2 or 3 leg models available.
• Complies with ASME standards.

Model MCL - Manhole Sleeve Lifter

Moving heavy manhole covers becomes a one-person operation, reducing the potential for injury on the job.

PRODUCT FEATURES:
• Handle extended for additional leverage & breaks down for
easy storage.
• Use for covers or grates.
• Features an adjustable 4-position safety latch hook and three
handle angle positions making this dolly the most ergonomic
on the market.

Model 176 - Concrete Pressure Tong with Urethane Pads

CALDDWELL 202109-221 copy.jpg

Pipe & Manhole Handling

PRODUCT FEATURES:
• Pipe Tongs are made of sturdy construction to handle pipe, round bars and cast pipe.
• Tongs are provided with steel curved gripping arms.
• Optional replaceable polyurethane pads available to protect smooth or polished surfaces.
• Load must be balanced and controlled when lifting.
• Use in pairs with a lifting/spreader beam for added stability.
• Complies with ASME standards.

Model PLT - Pipe Tongs

Operation

CALDDWELL 202109-222 copy.jpg

Pipe & Manhole Handling

PRODUCT FEATURES:
• Heavy duty automatic clamping design.
• Outriggers stabilize the pipe during lift.
• No blocking is required.
• The operator only has to guide the clamp into place.
• Pipes are handled quickly and efficiently when properly balanced.
• Excellent for cast iron, steel pipe, tubing, and other cylindrical objects.
• Pipe grab sizes listed handle ASA cast iron pipe - standard, extra strong, and double strong (all have same O.D.).
• Complies with ASME standards

Model C & S - Pipe Grabs

Operation

1. Lower the grab and place on pipe. As rope is loosened grab will open and seat on pipe.
2. Lift slowly with grab engaged to check for balance.
3.Load should be level when transported. Maximum of 15° angle when positioning pipe.

CALDDWELL 202109-223 copy.jpg

Pipe & Manhole Handling

PRODUCT FEATURES:
• Designed for lifting and carrying steel or cast iron pipe.
• Complies with ASME standards.

Model PH - Pipe Hooks

Operation





CALDDWELL 202109-224 copy.jpg

Load Leveling Slings

PRODUCT FEATURES:
• Allows crane hook to be over the load’s center of gravity in
unbalanced or non-symmetrical two point lifts.
• Quickly adjusts to center of gravity.
• Can be locked into place for constant lifts.
• Can be used in conjunction with spreader beams.
• Ideal for use in rigging applications and machinery moving.
• Complies with ASME standards.

Model AL2 - Adjust-A-Leg® Two Point Lift

Operation

For loads that are heavier on one end, with the center of gravity off-center.

For loads that are balanced and
symmetrical, but with lifting
points not located in a position
for a level lift.

For lifting loads at any desired
angle, simply by lifting with sling
legs at desired angle.

Many ways to use Model AL2 Adjust-A-Leg® Two Point Lifts

CALDDWELL 202109-225 copy.jpg

Load Leveling Slings

PRODUCT FEATURES:
• Allows crane hook to be over the center of gravity in unbalanced or
non-symmetrical four point lifts.
• Quickly adjusts to center of gravity.
• Can be locked into place for constant lifts.
• Can be used in conjunction with box type spreader beams.
• Ideal for use in rigging applications and machinery moving.
• Complies with ASME standards.

Model AL4 - Adjust-A-Leg® Four Point Lift

Operation

To achieve balance in one plane
and stability in another in a four
point lift.

To achieve balance in one plane
and stability in another in a three point lift.

Many ways to use Model AL4 Adjust-A-Leg® Four Point Lifts

CALDDWELL 202109-226 copy.jpg

Load Leveling Slings

PRODUCT FEATURES:
• Allows unbalanced loads to be lifted evenly.
• Allows full adjustment of sling length.
• Rated for up to Grade 100 Chain.
• Can use many different chain lengths with only one chain sling saddle ring.
• Can be used with various chain sling end fittings.
• Economical and easy to use.

Model CSS - Chain Sling Saddle Rings




CALDDWELL 202109-227 copy.jpg

Load Leveling Slings

PRODUCT FEATURES:
• Versatile assembly does many jobs.
• Easily adjustable to accommodate a wide
range of applications.
• Heat-treated alloy steel construction.
• Powder coating of Master Control Link helps prevent rust.
• Plate is permanently stamped with capacity and serial number.

Adjust-A-Link

Never substitute another chain or exceed the rated capacity. The load bearing chain must be seated at the base of adjusting slot of the Master Control Link. The Alloy Chain and Master Control Link shall not be used separately for general purpose lifting.

7/32, 9/32, and 3/8 Master Control Links use Grade 100 Chain.
1/2" Master Control Link uses Grade 80 Chain.
Not designed for angles less than 45°.

CALDDWELL 202109-228 copy.jpg

Bent Bar Products

PRODUCT FEATURES:
• Welded lifting eye.
• Heat Treated.
• Proof tested to 2:1 with certificate issued.
• Shot-blast finish with rust inhibitor.
• Serial number and capacity engraved on product.
• Custom designs available.

Model AJH / BJH / CJH - J-Hooks



CALDDWELL 202109-229 copy.jpg

Bent Bar Products

PRODUCT FEATURES:
• Welded lifting eye.
• Heat Treated.
• Proof tested to 2:1 with certificate issued.
• Shot-blast finish with rust inhibitor.
• Serial number and capacity engraved on product.
• Custom designs available.

Model FH - Foundry Hook

PRODUCT FEATURES:
• Shorter reach.
• Welded lifting eye.
• Heat Treated.
• Proof tested to 2:1 with certificate issued.
• Shot-blast finish with rust inhibitor.
• Serial number and capacity engraved on product.
• Custom designs available.

Model FHS - Short Foundry Hook


CALDDWELL 202109-239 copy.jpg
CALDDWELL 202109-230 copy.jpg

Bent Bar Products

PRODUCT FEATURES:
• Heat Treated.
• Proof tested to 2:1 with certificate issued.
• Shot-blast finish with rust inhibitor.
• Serial number and capacity engraved on product.
• Custom designs available.

Model SH - S-Hook

In addition to the standard Bent Bar Products Caldwell offers, we also have the ability to design and manufacture custom hooks, rings, links or other products from bar stock up to 2-3/4" material.

Special Applications

3/4" diameter L-Hooks with 6-1/4" reach, special 6" foot on hook, handle on the back, and a 250 pound working load limit at a specific angle.

3/8" diameter J-Hooks with an oversized eye, 30" long, and a 200 pound working load limit.

CALDDWELL 202109-231 copy.jpg

Custom Hook Application Evaluation

J-HOOK / FOUNDRY HOOK INFORMATION:

For a price quote on your specific application,
please complete the above form and contact us

CALDDWELL 202109-232 copy.jpg

Stirrup Hook Application Evaluation

For a price quote on your specific application,
please complete the above form and contact us

CALDDWELL 202109-233 copy.jpg

Bent Bar Products

PRODUCT FEATURES:
• Welded construction.
• Heat Treated.
• Proof tested to 2:1 with certificate issued.
• Shot-blast finish with rust inhibitor.
• Serial number and capacity engraved on product.
• Custom designs available.

Model MLO - Master Link

PRODUCT FEATURES:
• Welded construction.
• Heat Treated.
• Proof tested to 2:1 with certificate issued.
• Shot-blast finish with rust inhibitor.
• Serial number and capacity engraved on product.
• Custom designs available.

Model MLS - Sub-Assembly

CALDDWELL 202109-234 copy.jpg

Bent Bar Products

PRODUCT FEATURES:
• Welded construction.
• Heat Treated.
• Proof tested to 2:1 with certificate issued.
• Shot-blast finish with rust inhibitor.
• Serial number and capacity engraved on product.
• Custom designs available.

Model MLP - Pear Link

PRODUCT FEATURES:
• Welded construction.
• Heat Treated.
• Proof tested to 2:1 with certificate issued.
• Shot-blast finish with rust inhibitor.
• Serial number and capacity engraved on product.
• Custom designs available

Model MLR - Round Link

CALDDWELL 202109-235 copy.jpg

Custom Hook Application Evaluation

OBLONG INFORMATION:

For a price quote on your specific application,
please complete the above form and contact us

SUB-ASSEMBLY INFORMATION:

PEAR LINK INFORMATION:

ROUND RING INFORMATION:

CALDDWELL 202109-236 copy.jpg

Plate Clamps

The Model VLC is a vertical lifting tool for relatively light work. It is small and easy to handle in capacities through three tons. It incorporates a “Lock Closed” feature which facilitates attaching the clamp to the plate.

PRODUCT FEATURES:
• Designed to lift individual plates vertically.
• Positive locking mechanism ensures plate is gripped even when hoist is slack.
• Chain control on lock allows for ease in releasing cam.
• Complies with ASME standards.

Model VLC - Vertical Locking Clamp

CALDDWELL 202109-237 copy.jpg

Plate Clamps

The Model NLC is a vertical lifting clamp capable of turning a plate from horizontal to vertical and back through the same ninety-degree arc. It is small and easy to handle in capacities through three tons. The Model NLC incorporates a “Lock Closed” feature, which facilitates attaching the clamp to the plate.


PRODUCT FEATURES:
• Designed to turn plates 90°, lift and then set back through the same 90° arc.
• Positive locking mechanism ensures plate is gripped even when hoist is slack.
• Chain control on lock allows for ease in releasing cam.
• Complies with ASME standards.

Model NLC - Ninety-Degree Locking Clamp

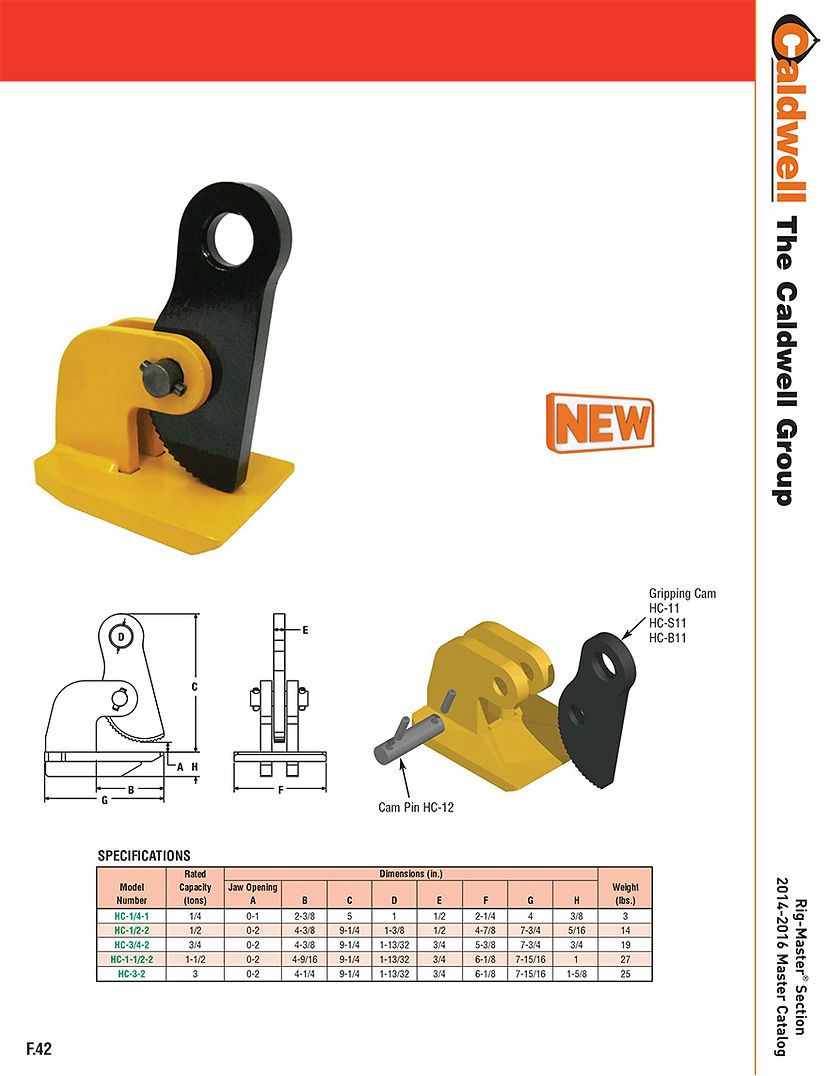

CALDDWELL 202109-238 copy.jpg

Plate Clamps

The Model HC is a horizontal lifting clamp intended to be used in pairs, sets of pairs or in a tripod arrangement for transporting steel plates horizontally.


PRODUCT FEATURES:
• Designed to lift individual sheets horizontally
• Cam operations ensures a tight grip on the load.
• Serrated gripping cam bites into load for positive grip.
• Clamps rest in position on edge of plate until tension is applied
to the load sling.
• Clamps must be used in single pairs (2), double pairs (4), or
tripod (3) configuration with a lifting sling.
• Complies with ASME standards.

Model HC - Horizontal Clamp

Lifting Magnets

PRODUCT FEATURES:
• For use on flat material only.
• 115 volts AC required.
• On, off, and release functions are recessed to protect against accidental operation.
• Easy to use.
• Complies with ASME standards

Model RELM - Round Electric Lift Magnets

Model VL - Permanent Lifting Magnets

PRODUCT FEATURES:
• Rare Earth Magnet with a Locking On/Off handle & “Test” load feature.
• Vertical Lift Capable using the optional Lift Lug attachment.
• Supports custom pole shoes.
• Lifts flat or round loads (see chart below).
• Stationary Lift Lug(s).
• Heat resistant up to 180°F (82°C).
• Complies with ASME standards.

CALDDWELL 202109-240 copy.jpg

Lifting Magnets

PRODUCT FEATURES:
• On/off powerful permanent magnetic.
• For use on flat or round material.
• Completely self contained.
• Simple level operation with safety lock.
• Permanent magnets holding power is not affected by power outages
or battery life.
• Complies with ASME standards.

Model CREM - Permanent Lifting Magnets

CALDDWELL 202109-241 copy.jpg

Lifting Magnets

PRODUCT FEATURES:
• Heat resistant up to 300°F (148°C)
• Lightweight Design
• Durable Stainless Steel Casing
• Large Lift Lug
• Full Width Cam Release

Model BL - Basic Lift Magnets

PRODUCT FEATURES:
• Permanent magnet is always on.
• For use on flat material only.
• Permanent magnets holding power not affected
by power outages or battery life.
• Non-marring roller cam release.
• Complies with ASME standards

Model CLM - Constant Lifting Magnets

CALDDWELL 202109-242 copy.jpg

Lifting & Spreader Beams

PRODUCT FEATURES:
• Beam length extends from 10' to 22'.
• Capacities in 1 and 2 ton.
• Lightweight.
• Faspin with lanyard allows for quick adjustment of spread in 1' increments.
• Hair pin cotter top rigging attachment.
• Complies with ASME standards

Model 14 - Modular Spreader Beam

OPTION R
Recommended Optional Top Rigging is two (2) double leg bridle round slings, each of different lengths, to be used in various beam configurations. Minimum rigging angle 45°, see Instruction Manual for details. (add “R” to model number ie: 14R-1-10/22)

OPTION C
Chain top rigging from beam to crane hook. (Add “C” to model number)



OPTION W
Wire rope top rigging from beam to crane hook. (Add “W” to model number)

CALDDWELL 202109-243 copy.jpg

Lifting & Spreader Beams

PRODUCT FEATURES:
• Adjustable lifting points.
• Handles both wide and unbalanced loads.
• Low headroom capability.
• Shackles included.
• Add chain top rigging for additional stability.
• Optional swivel hooks available.
• Optional chain top rigging available.
• Complies with ASME standards.


PRODUCT OPTIONS:
• OPTION S - Pair of swivel hooks
• OPTION C - Chain top rigging
• OPTION B1 - One cross beam*
• OPTION B2 - Two cross beams*
* Specify spreads

Model 16 - Adjustable Spreader/Lifting Beam

Operation

Standard
2 Point Lift

Custom
3 Point Lift

Custom
4 Point Lift

CALDDWELL 202109-244 copy.jpg

Lifting & Spreader Beams

PRODUCT FEATURES:
• Bail adjusts horizontally for lifting unbalanced loads.
• Provides clearance in low headroom applications.
• Spread adjusts in 6” increments along lifting beam.
• Shackles included.
• Optional swivel hooks available.
• Complies with ASME standards.



PRODUCT OPTIONS:
• OPTION S - Pair of swivel hooks

Model 17 - Adjustable Lifting Beam

Operation

CALDDWELL 202109-245 copy.jpg

Lifting & Spreader Beams

PRODUCT FEATURES:
• Designed to be used with slings in a basket hitch.
• Provides greatest clearance in low headroom applications.
• Two sets of bent bar hooks are standard on units with a spread of 6’ and greater.
• Spread 2 is 1/2 of spread 1.
• Hooks are designed to handle up to a 2” sling eye width.
• Complies with ASME standards

Model 18 - Fixed Twin Basket Sling Lifting Beam

Operation

CALDDWELL 202109-246 copy.jpg

Lifting & Spreader Beams

PRODUCT FEATURES:
• Provides clearance in low headroom applications.
• Eye hooks with hook latches standard.
• Fixed spread.
• Complies with ASME standards

Model 19 - Fixed Spread Lifting Beam

Operation

CALDDWELL 202109-247 copy.jpg

Lifting & Spreader Beams

PRODUCT FEATURES:
• Build your own spreader beam.
• Designed to work with a range of shackle sizes, both top and bottom.
• Complies with ASME standards when assembled to specifications using A53 Grade B, schedule 40 pipe.

Model BEF - Spreader Beam End Fittings

Assembly Information

The Caldwell Model BEF is designed to use A53 Grade B, schedule 40 pipe as the central structural element between the end fittings. This structural material is readily available at most steel service centers.


The Caldwell Model BEF-2 1/2 requires a 2-1/2" nominal size, the Model BEF-5 requires a 5" nominal size, and the BEF-8 requires an 8" nominal size A53 Grade B, schedule 40 pipe.


Other requirements are:
• The length of pipe used for this central element must be straight within 1/4" end to end.
• The pipe should have the ends cleanly cut square with its centerline.
• The A53 Grade B, schedule 40 pipe should not have any weld joint irregularities.
• Each end of the A53 Grade B, schedule 40 pipe must have the correct diameter holes drilled through both walls and both ends must be in line.
• The A53 Grade B, schedule 40 pipe used in this application does not need to pass any pressure testing.


The retaining bolts used to secure the Caldwell Model BEF 2-1/2 and 5 to the A53 Grade B, schedule 40 pipe must be a Grade 5 Hex Head Cap Screw 5/8-11 with minimum length of 4-1/2" and 8" respectively. The bolt for the BEF-8 is a Grade 5 Hex Head Cap Screw 1-8 with a minimum length of 11-1/2".


NOTE: Complete assembly instructions are provided with each set of end fittings.

CALDDWELL 202109-248 copy.jpg

Lifting & Spreader Beams

The same end fittings that build our high capacity spreader beams are available as end fittings only. This allows you to stock one or several sizes of end fittings; work with a local steel supplier to provide cut to length schedule 80 pipe; drill accordingly; and add the required top rigging. Now you can respond to your customers needs with a quickly built, ASME compliant spreader beam.

Model HC-BEF - High Capacity Beam End Fitting

Assembly Information

The Caldwell Model HC-BEF is designed to use A53 Grade B, schedule 80 pipe as the central structural element between the end fittings. This structural material is readily available at most steel service centers. See the above chart for the nominal A53 Grade B, schedule 80 pipe size required.


Other requirements are:
• The length of pipe used for this central element must be straight within 1/4" end to end.
• The pipe should have the ends cleanly cut square with its centerline.
• The A53 Grade B, schedule 80 pipe should not have any weld joint irregularities.
• Each end of the A53 Grade B, schedule 80 pipe must have the correct diameter holes drilled through both walls and both ends must be in line.
• The A53 Grade B, schedule 80 pipe used in this application does not need to pass any pressure testing.


Assembly pins are provided with the end fittings. The pins provided are only to be used to fasten the High Capacity Beam End Fitting (HC-BEF) to the properly sized A53 Grade B, schedule 80 pipe.


NOTE: Complete assembly instructions are provided with each set of end fittings.

PRODUCT FEATURES:
• Build your own spreader beam.
• Fittings only are available in 2 business days.
• Pivoting lower lugs allow for 75° to 90° lower rigging angle.
• Complies with ASME standards when assembled to specifications using designated pipe and rigging.

CALDDWELL 202109-249 copy.jpg

Lifting & Spreader Beams

PRODUCT FEATURES:
• Add flexibility to your spreader beam end fitting system.
• Securely joins two pipe lengths to create a longer spreader beam.
• Innovative design reduces sag in the spread system once assembled.
• Includes all connecting pin or bolts.
• Complies with ASME standards

Model BEF-PC - Beam End Fitting - Pipe Coupler

CALDDWELL 202109-250 copy.jpg

Special Applications

PRODUCT FEATURES:
• Rugged construction to lift and upend reels.
• Bearing included for easy rotation to unroll cable.
• One crane attachment point for both lifting and upending.
• Optional oblong can be added for large crane hooks.
• Special long arm option to lift and upend from outer flange.
• Bottom arm counterweighted for easy insertion in reel.
• Pull lanyard for pivoting bottom arm to lift.

Model RL - Reel Lifter

Applications

CALDDWELL 202109-251 copy.jpg

Special Applications

PRODUCT FEATURES:
• Latch prevents accidental unhooking of load.
• Latch is resistant to dirt, concrete, and ice.
• Stainless steel latch spring.
• Hook can be welded on without preheating.

Model WBH - Weld On Bucket Hook

Applications

Welding Instructions

• Before welding, surface must be thoroughly cleaned and prepared.
• Electrode is AWS/ASTM E7018-1, ISO E51 5 B120 20H.
• The base plate must be welded evenly all around (no gaps).
• Base plate is mild steel.
• Welding is to be done by a qualified welder.
• Instructions given by electrode manufacturer must be followed.

CALDDWELL 202109-252 copy.jpg

Special Applications

Turn your loader into a fork lift. Easy to attach, simply place the lip of the bucket in the slot, tighten the bolt, and lift—there is nothing to weld. Sturdy flame-cut handles make installation and removal fast and easy. The Caldwell Bucket Forks store easily and are very cost effective.

PRODUCT FEATURES:
• Easily attaches to almost any solid blade bucket.*
• Sturdy construction.
• Open fork design.

Model COF - Clamp-On Bucket Forks

Applications

CALDDWELL 202109-253 copy.jpg

Special Applications

PRODUCT FEATURES:
• An efficient way to lift containers from bottom lifting slot.
• Handle indicator shows lug is engaged for lift.
• Complies to use with ASME B30.9 sling capacities.


OPTION S - 8 1/2 ton shackle

Model LL - “Corky” Container Lifting Lug

Container Lifting Assemblies with “Corky” Hooks

Operation

Model CLS - Standard Wire Rope
Use in lifts where the load center is positioned in the center of the container.

Model CLS - Adjust-A-Leg®
Use in lifts where the load center is positioned away from the center of the container

CALDDWELL 202109-254 copy.jpg

Special Applications

PRODUCT FEATURES:
• Keeps fingers out of danger zones.
• Keeps load on bottom hook when load is slack.
• Keeps top hook on ring, hook, or trolley.
• Can be installed on any hook in minutes with only simple tools.
• Meets requirements: Sect. 1910.181 (a) (29) OSHA.

Model A through O - Universal Hook Latch

Operation

CALDDWELL 202109-255 copy.jpg

Special Applications

PRODUCT FEATURES:
• Rugged, all steel construction.
• Machined and heat treated, split load double reduction gears.
• Totally enclosed brake mechanism.
• Short handle allows for easy operation, even in those hard to reach areas.

Model LHHL - Heavy Duty Lever Hoist

CALDDWELL 202109-256 copy.jpg

Synthetic Sling End Fittings

Web-Trap® design keeps sling material in place, reducing wear and increasing sling life.


PRODUCT FEATURES:
• Forged steel (unless noted).
• For use with one or two-ply web slings.
• Plated for corrosion resistance.
• Complies with ASME B30.9 sling capacities.

Web-Trap® Steel Triangles & Chokers

CALDDWELL 202109-257 copy.jpg

Synthetic Sling End Fittings

PRODUCT FEATURES:
• Forged aluminum.
• Lightweight for one-ply capacity slings only.
• Non-sparking.
• Complies with ASME B30.9 sling capacities.

Aluminum Triangles and Chokers

CALDDWELL 202109-258 copy.jpg

Synthetic Sling End Fittings

PRODUCT FEATURES:
• Forged steel.
• Large crane hook opening for easier rigging.
• Web-Trap® design.
• Functions as both triangle and choker.
• Plated for corrosion resistance.
• Use with one or two ply web slings.
• Use with roundslings up to 5,300 pound rated capacity.
• Complies with ASME B30.9 sling capacities.

Unilink® Combination Triangle/Choker

CALDDWELL 202109-259 copy.jpg

Synthetic Sling End Fittings

PRODUCT FEATURES:
• Forged steel (unless noted).
• Can be used to make a Quick-Choke™ Pipe Lifting Sling.
• Couples web or round sling with hardware (oblongs or hooks).
• Splices two slings into longer length.
• Connects two slings with oblong and two hooks into bridle sling.
• Plated for corrosion resistance.
• Complies with ASME B30.9 sling capacities.

G-Link™ Coupler































CALDDWELL 202109-260 copy.jpg

Synthetic Sling End Fittings

PRODUCT FEATURES:
• Flame cut steel.
• Quick and easy choker with rigging.
• Sized for 2" and 3" wide slings.
• Ideal for handling pipe quickly and efficiently.
• Plated for corrosion resistance.
• Complies with ASME B30.9 sling capacities

Web Sling Quick Disconnects


CALDDWELL 202109-261 copy.jpg

Synthetic Sling End Fittings

PRODUCT FEATURES:
• Forged steel.
• Use with chain, wire rope or 1" nylon slings to lift drums or barrels.
• Ideally configured for use with an endless sling.
• Plated for corrosion resistance.
• Full 2-7/8" lip for positive grip.
• Lifts drums either vertically or horizontally.
• Complies with ASME B30.9 sling capacities.

Barrel/Drum Hooks

CALDDWELL 202109-262 copy.jpg

Care & Use

Rig-Master® Rigging Attachments have been designed for specific tasks to withstand the particular forces imposed. A summary of guidelines for installation, inspection, maintenance, repair, safe operation, and operator training of these attachments follow:

INSTALLATION
Below/Hook Lifters shall be assembled and installed in accordance with the manufacturer’s instructions, unless other specific arrangements have been approved in writing by  manufacturer. Check for specific maintenance and installation procedures in accordance with manufacturer’s instructions.



OPERATOR TRAINING
Lifters shall be operated in accordance with manufacturer’s operating instructions, and by personnel who have received instructions described in the “Operating Practices” section of these guidelines. Training shall also include instruction regarding:
1. Details of the lifting cycle.
2. Application of the lifter to the load including (according to the manufacturer’s instructions) adjustments to the lifter, if any, to adapt it to various sizes and kinds of loads.
3. Instruction in any special operations or precautions that may be required.
4. Recognition of proper load configuration. For example, preferred operation requires an orderly pattern of stacking.
5. Before assuming responsibility for using the lifter, an operator shall demonstrate his understanding of the lifting procedure to the instructor. The instructor should record, for your personnel evaluation, notes of operator’s demonstrated ability.



INSPECTION
The lifter shall be visually inspected by or under the direction of an appointed person on a daily or weekly schedule depending on the nature of the lifter and the severity of the service. Details to look for include but are not limited to:
1. Structural deformation.
2. Cracks in the structural frame, welds, hoist hook attachment
points, mechanically operating parts, any attached slings, clevises
and hooks.
3. Malfunctions during operation of a mechanically operating lifter.
4. Loose covers, fasteners and stops.
5. Faulty operation of automatic hold and release mechanisms.
6. Wear of hoist hooking points, load supporting clevises, pins, slings, linkages and mechanical parts.
7. Missing nameplates and markings. Contact Caldwell for replacements.



MAINTENANCE AND REPAIRS
1. A preventive maintenance program should be established for
each lifter by a qualified person based on recommendations made by its manufacturer.
2. A qualified person should have responsibility for repairs. Dated
records and details of repairs and parts replacement should be
carefully maintained by a qualified person, and copies kept in your possession.
3. Replacement parts shall be at least equivalent to the original
manufacturer’s specifications.
4. Keep products clean of dirt and debris to ensure proper and
safe operation.
5. Oil pins and moving parts as required.

Modifications or repairs performed on your lifting equipment without prior written approval from The Caldwell Group, Inc. voids your warranty. Refer to ASME standards for information regarding the liability of repaired or modified lifters.

OPERATING PRACTICES
DO’S

1. The operator shall receive, read and understand the manufacturer’s instruction manual.
2. The operator shall watch carefully that the lifter is performing
properly during the lifting procedure.
3. The operator shall know the standard crane hand signals.
4. The operator shall only respond to signals from an appointed
person. However, stop signals from anyone shall be obeyed.
5. The operator shall notify a designated person when he considers a load to be unsafe.
6. The operator shall observe the lifter before using. A defect
observed shall be examined by a qualified person to determine if it is a hazard.


DON’TS
1. The operator shall not operate a malfunctioning lifter or one with an “out of service” tag attached.
2. The operator shall not use the lifter for any purpose(s) other than those designated by the manufacturer’s instruction manual.
3. The operator shall not use a lifter when the capacity, weight or
product safety labels are missing or are no longer legible.
4. No one shall make alterations or modifications to lifters without
consulting the manufacturer.
5. No one shall obscure or paint over the manufacturer’s capacity,
weight, or safety markings.
6. Loads shall not be lifted higher than necessary or be left suspended unattended.
7. The lifter shall not lift a load that is not properly balanced for
safe lifting.



HANDLING THE LOAD
1. The lifter shall not be loaded in excess of its rated load.
2. Ensure the load can withstand forces applied by the lifter.
3. The combined weight of the lifter and load shall not exceed the
rated load of the crane or hoist.
4. The lifter shall be applied to the load in accordance with the
manufacturer’s recommended operating procedure.
5. Lifter ropes and chains shall not be kinked, and multiple part lines shall not be twisted about each other.
6. The lifter shall not touch obstructions during load movement.
7. The lifter shall not be loaded with loose material that might fall
during movement.
8. The operator or other personnel shall not place themselves or any part of their bodies beneath suspended loads.
9. The load or lifter shall not be slid on the floor or other surface.
10. The lifter shall not be used for loads for which it is not designed.
11. If suspended loads are moved manually, they shall be pushed,
not pulled.
12. A preliminary lift of a few inches shall be made to establish that the load is stable.
13. All loads shall be accelerated and decelerated smoothly and slowly.
