FALL ARREST - PETZL complete catalogue
In the realm of work at height, especially in areas related to progression on rope, performance and ergonomics are major issues.
At Petzl, we maintain a constant contact with professionals, which allows us to create solutions to meet these needs. For 2019,
we have focused our efforts on multiple product families. With the advent of the new VERTEX and STRATO helmets, Petzl introduces
a new line available in different configurations (VENT, HI-VIZ...) with an extensive selection of accessories (visors, nametag holder,
nape protector...). Also of note for rope access, the new I'D descenders with AUTO-LOCK function and the international versions
of the AVAO and ASTRO harnesses. For tree care, the line received a major overhaul: new SEQUOIA harnesses with accessories,
two versions of the ZIGZAG mechanical Prusik. Safety is a necessity for lighting as well, which is why we developed the PIXA Z1 headlamp for hazardous areas.
Happy reading.
Access the inaccessible.
Expertise and dedication to quality 6
​
VERTICALITY
General principles of work at height 12
Rope access and confined space 14
Tree care 20
Energy and networks 24
Framing and roofing 28
General rescue principles 32
Self-rescue 34
On-site rescue 36
Technical rescue 40
Ski lift evacuation 44
Harnesses 48
Helmets 68
Lanyards and energy absorbers 80
LIGHTING
A line for every activity 154
The Petzl difference 155
Petzl quality 156
Brightness and burn time 157
Environments and standards 158
Headlamp specifications 161
Performance headlamps 164
Compact, durable headlamps 170
Ultra-compact headlamps 176
Product index 182
From the Deep: The Petzl Adventure 184
​
​
Key new products for 2019
Helmets
New lines of VERTEX and STRATO helmets, accompanied by a range of entirely modular accessories that meet the varied needs of professionals.
Descenders
Self-braking I’D descenders now have an AUTO-LOCK function. New ZIGZAG mechanical Prusiks come with a range o f accessories that allow even greater efficiency when moving through trees.
Harnesses
New SEQUOIA tree care harnesses offer improved comfort and great mobility. AVAO BOD / AVAO BOD FAST and ASTRO BOD FAST harnesses are now available in international versions.
Connector
New Bm’D carabiner for connection to equipment such as descenders or positioning lanyards
Headlamp
Compact, durable PIXA Z1headlamp for use in ATEX hazardous areas, suitable for proximity lighting, movement and long-range vision
Access the inaccessible.
Petzl’s mission is to create innovative tools and services that allow men and women to progress, position, and protect themselves in vertical environments, as well as to light their way in the dark. We continually look for the best solutions for user needs in terms of performance, ergonomics, comfort, and reliability. The demands and the commitment of users are what guide our approach to supporting them in their pursuit of the inaccessible. We have stood by their side for over 40 years.
Paul Petzl
Petzl: a family's passion
Access the inaccessible.
The Petzl signature on a product has always represented the commitment of the Petzl family to produce the best tools for its users. The adventure began with Fernand Petzl's passion for caving, a passion to which he dedicated his talents as a craftsman. Petzl expertise began to grow with the design and crafting of solutions for ascending, descending, belaying and moving about in the dark. In 1970, the first "Fernand Petzl" brand products were produced in a workshop in Saint-Nazaire-Les Eymes, Isère, France. The Petzl company was created in 1975 and has grown into an international company that now employs over 800 people. Since its beginnings, it has preserved its family legacy and values: remaining independent and in control of its own decisions, developing a long-term vision, prioritizing people above all, and embracing its commitment to quality. Today, a family council, with Paul Petzl as president, ensures the continuity of the company.
A pioneering business
To attain the inaccessible, you need to know how to reinvent yourself. Since the development of the first rope ascenders and descenders, which laid the foundation for rope progression, Petzl has been at the forefront of change and the emergence of new techniques. Headlamp lighting, belaying, rescue, ice climbing, glacier travel... In these and other fields, Petzl's innovations have allowed equipment to evolve and practices to be reinvented. As proof of this dynamic activity, 700 patents have been
registered since 1970.
These advances always result from a dialogue with the user, in order to understand his/her expectations and to provide the elements s/he needs. Petzl has always remained true to this method. Petzl's philosophy for design and production is also based on accelerating change, transforming, and innovating in order to provide sports enthusiasts and professionals with the quality products they demand. Testing tower, experimentation center, individual inspections, LEAN manufacturing process - Petzl was a pioneer in all of these innovations.
Education, communication
From the beginning, we have sought to provide technical answers to our users' needs. The answers come in the form of product design, but also in the sharing of our experience with verticality. This experience can be found in the technical notices for products, and in the technical advice in our catalogs and at Petzl.com
The Petzl Solutions department is dedicated to education, through the sharing of our technical expertise. Petzl Solutions provides technical education modules and makes them available through a network of Petzl
Technical Institutes around the world.
In order to share our values, we collaborate with top athletes in different disciplines. Mountaineers, climbers, trail runners, cavers... they are the ambassadors of our company and of the passion for the inaccessible. Many are involved with the fine-tuning of our products. See them at Petzl events and through their stories on Petzl.com and on our social media platforms.
1936: Fernand Petzl starts exploring the Dent de Crolles, France, and invents the tools he requires
1968: Our first rope ascenders and descenders (BASIC, SIMPLE) under the name Produits Fernand Petzl (Fernand Petzl Products)
1973: First Petzl mountaineering headlamp is developed
1983: First Petzl harnesses
1991: GRIGRI®, first belay device with assisted braking
1998: TIBLOC®, ultra-compact rope clamp
2001: First TIKKA LED headlamp®
2004: ASAP® mobile fall arrester
2005: Petzl professional helmets
2006: EXO® personal escape system for New York City firefighters
2012: NAO® headlamp with REACTIVE LIGHTING technology
2013: SIROCCO helmet and ZIGZAG® mechanical Prusik for tree care
2015: SITTA harness for climbing and technical mountaineering
2017: GRIGRI® + belay device
2018: New DUO headlamps with FACE2FACE anti-glare technology
For over 40 years, Petzl has built on its expertise in the design and manufacture of products for verticality and lighting. Today, Petzl designs, produces and distributes millions of products around the world. Building a Petzl product requires expertise in a wide range of materials - textiles, metals, plastics - as well as in specific technologies: plastics processing, sewing, injection molding, forging, LEDs, electronics... This expertise allows us to design equipment that meets both the needs of users and the technical requirements for its use: resistance to impacts, abrasion, extreme temperatures...
Expertise and dedication to quality
Design
The Petzl research department in Crolles, France, integrates all the fields related to product design: mechanical, textile,
electronic, optical, computing and prototyping. Starting at the design and prototype phases, the reliability of the product and user safety are continually evaluated with a strong focus on risks to the user.
Testing
In Crolles, Petzl has labs dedicated to testing verticality products and headlamps. These tests often go above and beyond the required standards to help validate product reliability and user safety. Examples of tests: dynamic fall tests, impact resistance, cyclic testing, performance, headlamp beam quality and burn times. They are complemented by testing in the field for ergonomics and reliability.
SPECIAL INDUSTRIAL SUPPLIES PTY LTD.
Tel National: 0861040506
Tel International: +27117925226
Cell: +27832514312
​
Unit 21, Acacia Industrial Park
17 Arbeid Avenue, Strydom Park.
South Africa.
​
Production and
inspection
Petzl's production sites are based in Crolles, Eybens, and Rotherens, France, and in Rawang, Malaysia. This production infrastructure is complemented by longterm partnerships with key suppliers in Europe and Asia. Our purchasing and quality control teams work closely with suppliers to guarantee a standard of product reliability and quality that meets our strict requirements. During the manufacturing phase, quality control is present at every step of the production chain. It combines automated and human inspections.
Serving our communities
Providing solutions for users
Petzl serves communities of users committed to their activities. Our goals:
to assist them with products they can rely on, and to offer them our expertise.
Petzl is active in the following fields:
• outdoor activities: climbing, mountaineering, ski mountaineering, trail running, via ferrata, canyoning...
• work at height: rope access, tree care, energy and networks, framing and roofing...
• rescue: technical rescue, self-rescue, evacuation on mechanical lifts
• personal lighting for professionals,
for maintenance, for industrial worksites
• equipment for tactical operations units
• equipment for adventure parks
The Petzl Foundation
Finding new directions
In the depths of the Masaya volcano
In 2015, a lake of lava appeared in the Masaya volcano in Nicaragua. The proximity of a vast expanse of lava offered researchers the chance to study the gases emitted by the volcano, from their generation to their dissipation in the environment.
In July 2017, the International Volcano Monitoring Fund and the GeoArc Foundation association, experts in difficult-access scientific expeditions, assembled a multidisciplinary team of researchers and technicians who are skilled in work at height. Together, they designed and installed an aerial system to deploy sensors into the depths of the Masaya volcano's crater. 1.2 km of rope was required to set up an aerial tram spanning the 500-meter-wide crater in order to take samples at a depth of 400 meters. Using this device, sensors were positioned in the acid plume above the lava lake. Additional sensors, below the vent and around the sides of the volcano, yielded a profile that precisely evaluates the concentrations of toxic gases. This profile will provide a better measurement of the gases' impact on the surrounding villages and a large part of Nicaragua.
Supported partners: International Volcano Monitoring Fund and the GeoArc Foundation
Location: Nicaragua
Support: 20,300 € in 2017
Read about all Petzl Foundation projects at www.fondation-petzl.org
Climbing towards a summit or progressing in the vertical world gives rise to lasting passions that help women and men grow, thrive and dream. For over 10 years, the Petzl Foundation's mission has been to support or initiate projects of public interest through its activities in the mountain and vertical spheres, projects that help bring balance to humankind's place in its natural, cultural, and economic environments.
​
The Petzl Foundation:
- encouraging learning and risk management to avoid accidents
- promoting the preservation of hard-to-access ecosystems
- contributing to a better understanding of current practices and their environments
​
Petzl's expertise in vertical terrain is expressed by its line of products specifically designed for work at height and rescue professionals. These products address all of the issues faced by professionals every day: repeated and intensive use of equipment, weather, diverse terrain... They maximize usability, simplicity and ease of use, while meeting the highest quality standard.
Equipment inspection and individual
identification code
To ensure that your equipment is in good condition throughout its useful lifetime, it is necessary to inspect it regularly. Depending on the product's date of manufacture, the individual identification code can be structured in two ways, with 11 or 13 characters.
For more information, please see www.petzl.com
Special products in black
Certain products are also available in black; they are designed for professions where stealth is essential

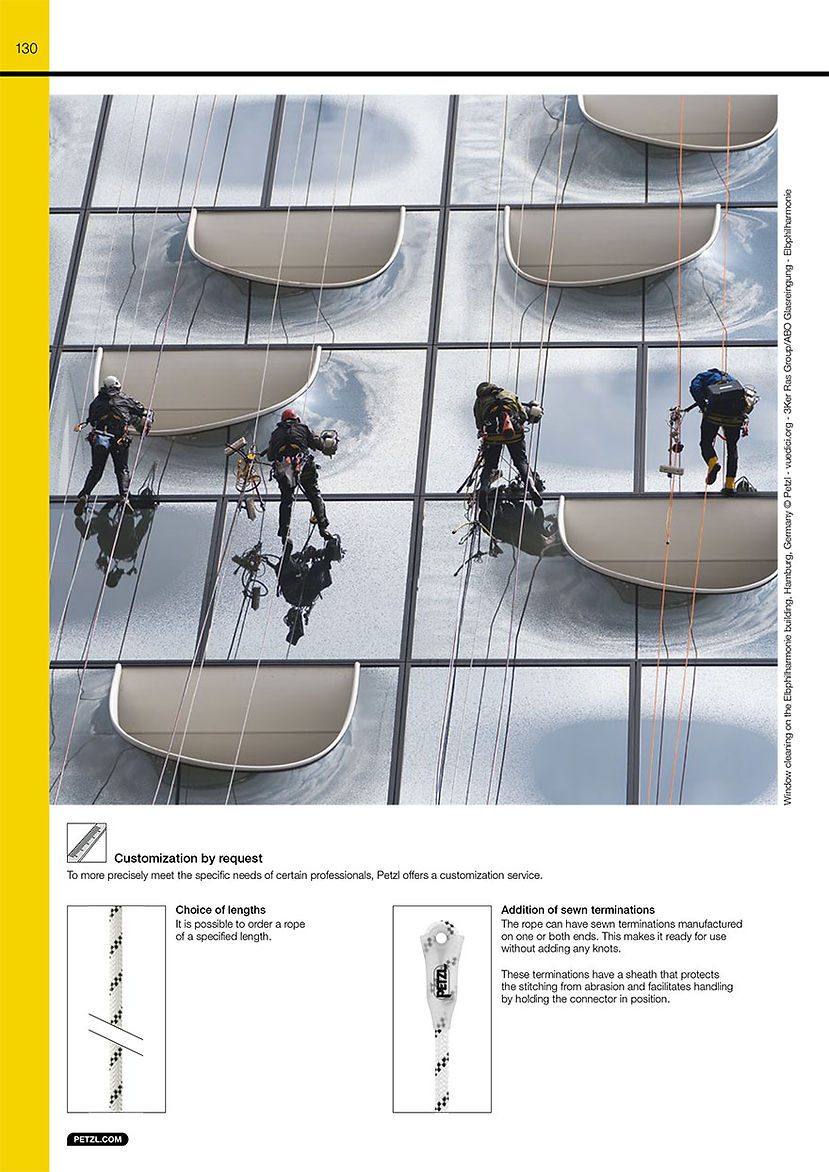

Product customization and adaptation
The Petzl Customization service is for professionals who have specific needs,outside of the standard product offering:
product marking and adaptation...
For more information: contact us
VERTICALITY
General principles for work at height
Warning
• You must have understood and retained the information from your products' Instructions for Use to be able to apply the techniques presented in this document
• Learning appropriate techniques and methods of protection is your own responsibility. Petzl solutions are given for information only, with no guarantee of their effectiveness in your specific working situation. The relevance of these solutions varies by context, so always do your own risk analysis in the field
• Mastering the techniques presented here requires specific training and practice; consult a specialized organization for all training activities
General information on falls
The risk of falling is a key concept to master when working at height. The severity of a fall depends on independent factors:
• The weight of the user, including equipment:
The greater the weight, the more energy to be dissipated during the fall.
• The length of the fall:
The longer the fall, the more energy to be dissipated during the fall. The risk of hitting an obstacle is also greater.
• The position relative to the anchor:
When the worker moves above his/her anchor, the severity of the potential fall increases. The fall factor concept is sometimes used to describe the worker's position relative to the anchor and the severity of the fall. This concept applies to climbing, restraint, or work positioning situations, when a dynamic rope lanyard is used.
Precautions for the type of system used:
The Instructions for Use specify the limitations for use of equipment, particularly in terms of fall distance and the worker's position relative to the anchor.
Restraint
A restraint system limits the work zone, keeping the worker from entering an area that may present a risk of falling. This system is not designed to arrest a fall from height.
Fall arrest
The fall arrest system is a belay system that is independent of the means of progression or work positioning. The fall arrest system prevents the user from falling to the ground in case of a fall. Its role is to arrest the fall while limiting the impact force experienced by the user. It must therefore be used with enough clearance to allow for a free fall.
Work positioning
A work positioning system supports the user and allows him/her to be precisely positioned with weight on his/her feet. This system is not designed to arrest a fall; the user must keep his/her body weight on the positioning system. The work positioning system must be supplemented with a fall arrest system.
Suspension
The user is working in suspension when s/he no longer has weight on his/her feet,
but is supported primarily by the harness.
The load is thus shared between the waistbelt and the leg loops/seat
Impact force
A fall arrest system allows the impact force experienced by the user to be limited.
It is typically composed of an energy absorber that tears in order to limit the forces over a specific stopping distance.
A dynamic rope lanyard has a low capacity for energy absorption. Its use requires great precautions: reducing the potential fall distance and staying in a work position below the anchor.
A webbing lanyard or a cable, with no capacity for energy absorption, can not be used to arrest a fall.
Clearance
Clearance is the minimum amount of clear space below the user that prevents the user from hitting an obstacle in case of a fall.
Clearance takes into account:
- the user's weight
- the length of the fall
- the tearing length of the energy absorber
- the average height of the user
- a safety margin of 1 meter
Clearance value
The tearing length of the energy absorber, depending on the the fall, can only be known based on the manufacturer's information; this is why a clearance estimate is suggested in the Instructions for use for each fall arrest device.
Anticipating the means of rapid evacuation
• Limiting the effects of inert suspension:
In case of a fall where the worker loses consciousness or is incapacitated, inert suspension in the harness presents a mortal danger requiring an urgent response. Work teams must be equipped and trained to quickly evacuate an injured team member.
• Evacuating a victim without assistance:
Procedures for evacuating workers should be determined whenever a new worksite is established.
Releasable systems can be created during installation of working ropes
to allow evacuation from below.
Working alone must be prohibited: a worker may find him/herself alone at height, but at least one person trained in evacuations should be present and equipped on site.
Rope access and confined space
Rope access work situations often involve environments at significant height. They can be inside or outside, even confined, and are not suited for the use of collective protection. Work done in confined spaces carries additional difficulties related to
the lack of space, and to the lack of means of autonomous progression.
Examples of operations:
• placement of rockfall or stabilization nets over a road
• structural inspection (bridge pilings...)
• exterior window cleaning on skyscrapers
• inspection of tanks
Technical specifics:
• the work area is accessed with ropes by specialized workers trained in rope access techniques
• access from above is preferred as it is safer and simpler to set up
I'D S and Open auxiliary brake
The self-braking I’D S descender is designed for work at height and rope access work. It has an ergonomic handle that allows convenient descent control. The integrated anti-panic function and anti-error catch limit the risk of an accident due to user error. The AUTO-LOCK system allows users to easily position themselves at the work station without having to manipulate the handle or tie off the device. The open auxiliary brake may be used to increase braking friction, depending on the load and on the rope diameter.
Rope access
Installing ropes
Load-sharing anchors with the rope.
Installing a lifeline with the ASAP mobile fall arrester.
Rope access
Gated ventral attachment point on ASTRO harnesses
The ventral attachment point on ASTRO harnesses is gated for optimal integration of equipment
Serving our communities
1. Combined lowering/raising system
• Advantage: quick transitions between modes (lowering/raising)
• Disadvantage: rope length is four times the travel distance
2. Independent lowering/raising systems
• Advantage: the length of the rope equals the travel distance
• Disadvantage: rigging is required to transition between lowering and raising
ZIGZAG PLUS and CHICANE
Serving our communities
Not all tree work can be done using exterior means such as elevated platforms or ladders. In this case, to move and work, the arborist uses rope progression techniques.
Examples of operations:
• ornamental tree trimming, to adapt the tree to its environment or to change
its overall aesthetic
• maintenance trimming to remove dead wood and dying branches
• tree removal (progressive cutting of the trunk from the top) if diseased or presenting a hazard...
Technical specifics:
• access from the base of the tree generally starts by throwing a weighted bag with line attached. This line is used to install the access rope on an anchor up in the tree
• while moving about on the branches, the arborist keeps his/her weight on the work rope, for greater stability and to reduce the potential fall distance
• when using any cutting tool (hand saw, chainsaw), the arborist must use two independent belay systems
The ZIGZAG PLUS mechanical Prusik allows the user to move around efficiently in a tree. The friction chain provides precision and fluidity when moving around. The pulley allows the slack to be taken up easily. Can be used on either doubled ropes or a single rope, providing great versatility. The lower attachment hole with high-efficiency swivel ensures stable and correct positioning of the mechanical Prusik and optimal rope glide through the device. The CHICANE auxiliary braking device allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes. It provides continuous additional friction on descents.
Tree access
Tree care
Doubled rope ascent technique
The arborist ascends the access rope (purple). In case of a hornet attack (or other problem) s/he can self-evacuate with the work rope (blue). A mule knot, or releasable knot, secures the ZIGZAG. This versatile ascent technique is adaptable to many situations and allows an access rope to be available during work.
Single rope ascent technique
The access rope is attached to the base of the tree and runs through an appropriate anchor in the tree. It will also be used for work. On single rope,
the ZIGZAG must only be used with the CHICANE. This technique allows for rapid rescue and efficient climbing with the KNEE ASCENT knee ascender.
Movement within the tree
Movement on doubled rope
The work rope is set up doubled through a false crotch,
on a suitable anchor near the top of the tree. This technique allows for easy travel in any direction and provides the arborist with good support when limb walking
Movement on single rope
The rope setup does not change between access and work; if the top anchor is reliable and verified, the arborist does not necessarily need to
climb to the top and can go directly to the work station. The rope does not run during movement, the arborist can thus move anywhere in the tree
with no loss of efficiency.
VERTEX VENT HI-VIZ and VIZIR
Energy and networks
These fields are characterized by structures such as towers, antennas and windmills. The modes of progression are varied, and directly related to the structure itself.
Examples of operations:
• work on high tension lines
• tower construction
• maintenance operations in wind farms...
Technical specifics:
• the user generally progresses using lifeline, cable or rail type permanent fall arrest systems
• lacking these, the user must ensure his/her own safety using personal protective equipment:
energy-absorbing lanyard or mobile fall arrester on rope
The VERTEX VENT HI-VIZ helmet is very comfortable, thanks to its six-point textile suspension and ENTERFIT and FLIP&FIT systems, which guarantee that the helmet fits securely on the head. It has ventilation holes with sliding shutters to allow airflow through the helmet. The high visibility version features a fluorescent outer shell with phosphorescent clips and reflective bands, for optimal visibility of the worker, day or night. The VIZIR eye shield protects the eyes against projectile hazards. It is easy to install with the EASYCLIP attachment system.
Energy and networks
Backed-up ascent using a double lanyard with integrated energy absorber
Ascent protected by a fall arrest trolley attached to a rail
The trolley is fixed to the harness's ventral fall arrest attachment point (LADDER CLIMB), distributing the load on the waistbelt and ensuring optimal comfort during progression. In case of a fall, this attachment point moves upward to a sternal position to ensure a vertical post-fall body position.
Backed-up progression using a double lanyard with integrated energy absorber
To reduce the risk of a fall, the two arms of the energy- absorbing lanyard are attached on both sides of the user.
Belaying with the ASAP LOCK for tower access
Belaying the climber's ascent
AVAO BOD FAST international version
Framing and roofing
In this type of work situation, the risk of slipping and falling is higher. A safety device must be installed to guard against these hazards.
Examples of operations:
• framing a building under construction
• roof repair or waterproofing
• roof inspection on industrial sites...
Technical specifics:
• when the situation allows, accessing the work area is done using an elevated work platform.
The worker secures him/herself with an energy-absorbing lanyard
• lacking collective protection, the worker is required to use a fall arrest system
• fall arrest systems are also required when installing collective
protection
The AVAO BOD FAST fall arrest, work positioning and suspension harness is designed for greater comfort in all situations. Wide, semi-rigid waistbelt and leg loops give excellent support. The lightweight, breathable construction maximizes air flow. The shoulder straps have a system for stowing the fall arrest lanyard connectors and keeping them within reach. The harness has a fall indicator on the dorsal attachment point.
Framing and roofing
1. Roof access
Installing a rope with releasable
anchor; backed up ascent with
the ASAP.
2. Long-term use
With individual positioning system and collective protection.
3. Occasional use
With individual fall arrest system
General rescue principles
Inert suspension in a harness, even for a short time, can cause
serious physiological harm. In case of an accident, it is important
to respond quickly with the appropriate technique.
Self-rescue
On sites where the main access could be cut off by fire, people must be ready to quickly evacuate the building. They have evacuation kits. These kits are either portable or installed permanently on the structure. Where there is no identified anchor possibility, a hook-based system can be used. In both cases, teams must be regularly trained so as not to panic in case of a fire.
On-site rescue
When a worksite is being set up, the company must establish a risk prevention plan (inventory of risk situations):
1. It must protect the personnel from falls from height.
The solutions chosen, whether collective or individual, must protect the team members while they work.
2. In the case of an incident, the company must be prepared with rescue systems for accessing, releasing and evacuating the victim.
These solutions are established with:
- ready-to-use rescue kits, adaptable to many situations and simple to use
- personal equipment for the worker at height (solution requiring experienced and well-trained teams)
In both cases, the teams undergo regular training so they can respond quickly in case of an accident.
Technical rescue
Technical rescue teams must be able to respond quickly in any
situation. They must choose the quickest, most effective way to access the victim.
- When access is easy or possible by motorized means, they can easily transport the rescue equipment
- In more difficult access situations, they may use rope access
techniques, from above or below. They thus have lightweight,
versatile equipment
- Finally, the helicopter can be a means that is used when victim
access is complicated and/or remote, for example in the mountains
Ski lift evacuation
Ski lift evacuation operations follow an evacuation plan. Rescue
kits are put together to meet the specific needs of each ski
center.
​
​
1. Accessing the victim
Accessing the victim can sometimes be complicated. Rope access techniques are used in such a case. When access is possible from above, rescuers use rope descent techniques. If an access rope is in place, rescuers can ascend the rope using ventral rope clamp techniques. In other situations, rescuers are obliged to use climbing techniques to reach the victim.
2. Releasing the victim Raising
This involves using a mechanical advantage pulley system in order to easily raise the victim. A rescuer working alone uses a mechanical advantage system to reduce effort. The disadvantage is that a long rope is required. If there are enough rescuers, a lower mechanical advantage is used to speed up the operation.
Counterbalance technique
This is a counterweight system. The rescuer is on one side, the victim on the other. The rescuer unweights the rope on the victim's side by pulling upward. The victim ascends and the rescuer descends. The advantage of this system is that it is easy to do with little equipment. Engaging the counterweight is the step
that demands the most energy. After that, it is important to be careful to keep the system under control. Be careful when there is a significant weight difference between the rescuer and the victim.
3. Evacuating the victim
Downward, the evacuation is done with a descender. This is the easiest technique currently in use. When downward evacuation is impossible, the victim is evacuated upward or horizontally. Upward, rescuers use either a counterweight or hauling technique. Horizontally, one or more ropes are tensioned. One rope is used for carriage, another is used as a back-up belay, and another to move the litter.
EXO AP HOOK
Self-rescue
The typical scenario is of a firefighter trapped inside a burning
structure. S/he needs to be able to ensure his/her own rescue and thus must have the appropriate
equipment.
Technical specifics:
• in this situation, the firefighter must be able to take advantage of any available anchor point inside the building, or as a last resort, a window sill
• the exit generally takes place in an extremely hot, smoke-filled, and hostile environment, adding to the limitations
• the maneuvers must be as simple as possible, for quick action even under intense duress
EXO AP HOOK is a personal escape system with anchor hook
adapted for locations where the possibility of finding an anchor point is uncertain. It has a self-braking system with anti-panic function for quickly moving horizontally, climbing through a window and controlling and stopping a descent. If the user pulls too hard on the handle, the anti-panic function brakes and stops the descent automatically.
JAG RESCUE KIT
The ready-to-use reversible JAG RESCUE KIT is designed to easily unhook and lower a victim. It contains a JAG SYSTEM haul kit, a RING OPEN gated ring, an I’D EVAC descender, a CONNEXION FIXE 150 cm anchor strap, a BUCKET bag and an AXIS 11 mm rope with two sewn terminations.
On-site rescue
If a victim is not able to self-rescue, the on-site work team has to respond immediately and move him/her to safety.
​
Examples of operations:
• a team member accesses the victim, unhooks him/her, then lowers the victim unaccompanied
• a team member accesses the victim, unhooks him/her, then rappels down with the victim
• the victim is suspended on a pre-installed evacuation system that does not require a team member to access him/her directly
Technical specifics:
• unaccompanied evacuation can generally be done using a ready to- use rescue kit
• accompanied descent requires proper training, as it implies a mastery of advanced rope access techniques
• in all cases, the rescue method should be as rapid as possible, in order to reduce the risk of suspension trauma, especially when the victim is unconscious
Release and rescue using a reversible rescue kit
• Unaccompanied evacuation (when victim doesn't require monitoring or for a free-hanging evacuation):
1. Victim suspended by a lanyard, with the energy absorber torn by the fall.
2. Hauling (allows the victim to be released).
3. Lowering the victim.
STRATO VENT HI-VIZ
Technical rescue
Technical rescue teams respond when the situation is especially difficult and requires significant
resources to be deployed.
Examples of rescues:
• following a vehicle roll-over into a ravine, the victims are rescued via motorized means
• evacuation of an injured worker from a location that is difficult to access
• helicopter rescue operations in mountainous terrain...
Technical specifics:
• technical rescue teams operate in any terrain. They have complete mastery of all progression and belay techniques on rope
• when the terrain allows, downward evacuation is preferred because of the gravity-assist
• upward evacuation is a team effort that requires perfect coordination by everyone involved. It demands techniques which are sometimes particularly complex: raising systems, creating a hauling system using lightweight pulleys, counterweight techniques...
The STRATO VENT HI-VIZ helmet is very lightweight and comfortable, thanks to its CENTERFIT and FLIP&FIT systems,
which guarantee that the helmet fits securely on the head.
It has ventilation holes that allow airflow through the helmet.
The high visibility version features a fluorescent outer shell with phosphorescent clips and reflective bands, for optimal visibility of the worker, day or night.
Technical rescue
Upward and horizontal evacuation in a confined space
1. Raising the NEST litter by a rescuer in counterbalance on rope clamps. A rescuer controls the raise. A third person gives a back-up belay with a second rope.
2. The rescuer below gives slack with a descender. The back-up belayer hauls the NEST litter, allowing it to tilt to a horizontal position with the help of the STEF tilting device.
3. Recovery of the NEST by team members.
Upward and horizontal evacuation by simultaneous traction on two lines
The ropes are used as both work and safety rope.
AUTO LOCK
The AUTO-LOCK system locks the load automatically and returns the handle to the stop position.
Once locked, the rope can be taken up without having to manipulate the handle.
I’D EVAC
Ski lift evacuation
If ski lift equipment fails, the person in charge must evacuate passengers according to the evacuation plan. This evacuation must be done within a predefined time frame, and is generally conducted by the operations staff.
Technical specifics:
• accessing the passengers is done by moving along the cable, from the towers
• these operations are managed
simultaneously by multiple autonomous teams, generally
composed of:
- a person suspended on the cable who evacuates passengers and whose movements are protected by a team member on the tower
- a person on the ground who receives passengers and guides
the movement of the team member on the cable
• the success of these operations
hinges largely on the instruction,
training and practice of the
operations staff (at least once
a year)
The I’D EVAC self-braking descender is designed for lowering from an anchor. The ergonomic handle is specifically oriented for managing a load from the anchor and offers comfortable descent control. The integrated anti-panic unction and anti-error catch limit the risk of an accident due to user error. The AUTO-LOCK system allows the rope to be automatically locked without having to manipulate the handle or tie off the device. The closed auxiliary brake increases the friction as required for the load weight and the rope diameter and provides a constant redirect of the rope.
Ski lift evacuation
Ski lift evacuation with rescuer on cable
Techniques for evacuation from a ski lift differ significantly from one situation to another. A technique is chosen based on the slope of the cable, the clearance above, the distances between pylons, the number of passengers to evacuate, the recovery zone...
To be completed properly and on time, this operation requires training.
​
1. Rescuer accessing the chair
Back-up belay may be done from the pylon. This allows for a mutual verification of the system before the rescuer moves onto the cable. The rescuer is suspended on the ROLLCAB, and the GRILLON lanyard is slightly slack to allow descent along the cable.
​
Detail of products making up the rescue kit:
- BERMUDE
- I’D EVAC
- CONNEXION VARIO
- ROLLCAB
- SWIVEL OPEN
- PAW S
- JANE
- GRILLON
- MGO OPEN
- GO x 4
- Am’D x 4
- CAPTIV x 3
- AXIS 11 mm with sewn termination
2. Evacuating the passenger
The rescuer descends on the GRILLON lanyard to the chair. S/he installs the BERMUDE rescue triangle on the victim, then evacuates the victim with an I’D EVAC descender.
Self-locking buckles
These buckles do not require re-threading to be locked: they adjust easily in seconds.
Harnesses
To give each user the best possible fit, Petzl harnesses are adjustable at the waist, shoulders and leg loops. They are equipped with different types of buckles:
Automatic buckles
Automatic buckles open and close simply and quickly, even when wearing gloves, without loss of adjustment.
General purpose harnesses
Fall arrest harnesses
Fall arrest harnesses with a simple,
lightweight design.
Fall arrest and work positioning harnesses
Fall arrest and work positioning harnesses
that are comfortable and easily donned.
Harnesses for fall arrest, work positioning and suspension
Versatile and very comfortable harnesses
for fall arrest, work positioning and suspension.
Rope access harnesses
Very comfortable harnesses,
with integrated ventral rope clamp
to facilitate ascending a rope.
Tree care harnesses
Very comfortable harnesses,
with attachment bridge for greater
freedom of movement in the trees
Rescue harnesses
Lightweight harnesses suitable
for various rescue environments.
Litter and evacuation triangles
Equipment designed for rope rescue
(confined space, ski lifts...).
Specialized harnesses
Fall arrest harnesses
• Great simplicity
NEWTON harnesses have color-coded straps (yellow/black) that allow rapid identification of the upper and lower parts of the harness before donning.
• Quick donning
The NEWTON EASYFIT harness is quickdonning,
thanks to a vest that helps keep its shape. It is equipped with FAST automatic buckles on the leg loops, allowing the harness to be easily donned with both feet on the ground.
• For high visibility
The NEWTON EASYFIT HI-VIZ harness has a fluorescent-colored vest with reflective strips,
making the worker highly visible. It makes the worker more visible on a worksite, road or industrial site regardless of the lighting conditions.
Fall arrest harnesses
The NEWTON fall arrest harness is comfortable for work and easy to use. It is certified to European and Russian standards.
NEWTON European version
Fall arrest harnesses
The NEWTON fall arrest harness is comfortable for work and easy to use. It offers ergonomic stowage of MGO connectors and has fall indicators. It is certified to North American, European and Russian standards.
NEWTON International version
Easy-to-don fall arrest harness
The NEWTON EASYFIT fall arrest harness is easily donned thanks to its EASYFIT design: a vest ensures the harness keeps its shape and the FAST automatic buckles (sternal and leg loop) allow the harness to be donned with both feet on the ground. It is certified to European and Russian standards.
NEWTON EASYFIT European version
Easy-to-don fall arrest harness
The NEWTON EASYFIT fall arrest harness is easily donned thanks to its EASYFIT design: a vest ensures the harness keeps its shape and the FAST automatic buckles (sternal and leg loop) allow the harness to be donned with both feet on the ground. It offers ergonomic stowage of MGO connectors and has fall indicators. It is certified to North American, European and Russian standards.
​
NEWTON EASYFIT International version
Fall arrest harness with high-visibility vest that is easy to don
The NEWTON EASYFIT HI-VIZ fall arrest harness has a fluorescent-colored vest with reflective strips, making the worker highly visible. It is easily donned thanks to its EASYFIT design. A vest ensures the harness keeps its shape, and the FAST automatic buckles (sternal and leg loop) allow the harness to be donned with both feet on the ground. It offers ergonomic stowage of MGO connectors and hasfall indicators. It is certified to North American, European and Russian standards.
NEWTON EASYFIT HI-VIZ
• For work on towers and antennas
The VOLT and VOLT LT harnesses have a wide waistbelt with equipment loops on the back for easy organization of work tools
Fall arrest and work positioning harnesses
• For work inside wind turbine towers
The VOLT WIND and VOLT WIND LT harnesses have dorsal wear protectors, to reduce wear on the straps when moving about inside a wind turbine tower.
Fall arrest and work positioning harness with attachment point for vertical progression on rail or cable
The VOLT fall arrest and work positioning harness is very easily donned, thanks to its EASYFIT design: a vest ensures the harness keeps its shape, and the FAST automatic buckles on the waistbelt and leg loops allow the harness to be donned with both feet on the ground. The VOLT harness' anatomical design and wide, semi-rigid waistbelt ensure comfort throughout the workday. Its LADDER CLIMB attachment point allows for ventral attachment of the fall-arrest trolley, thus ensuring optimal comfort during progression. It is certified to European and Russian standards (also available in a model certified to European and Canadian standards; comes with OXAN connector).
VOLT®
Fall arrest and work positioning harnesses
The VOLT LT fall arrest and work positioning harness is very easily donned thanks to its EASYFIT design: a vest ensures the harness keeps its shape and the FAST automatic buckles on the waistbelt and leg loops allow the harness to be donned with both feet on the ground. The VOLT LT harness' anatomical design and wide, semi-rigid waistbelt ensure comfort throughout the workday. It is certified to North American and European standards.
​
VOLT® LT
Fall arrest and work positioning harness for the wind power industry with attachment point for vertical progression on rail or cable
The VOLT WIND fall arrest and work positioning harness is very easily donned thanks to its EASYFIT design: a vest ensures the harness keeps its shape and the FAST automatic buckles on the waistbelt and leg loops allow the harness to be donned with both feet on the ground. The VOLT WIND harness' anatomical design and wide, semi-rigid waistbelt ensure comfort throughout the workday. Its LADDER CLIMB attachment point allows for ventral attachment of the fall-arrest trolley, thus ensuring optimal comfort during progression. It has wear protectors on the waistbelt and below the dorsal point to limit wear when moving about inside the wind turbine tower. It is certified to European and Russian standards (also available in a model certified to European and Canadian standards; comes with OXAN connector).
VOLT® WIND
Fall arrest and work positioning harness for the wind power industry
The VOLT WIND LT fall arrest and work positioning harness is very easily donned, thanks to its EASYFIT design: a vest ensures the harness keeps its shape, and the FAST automatic buckles on the waistbelt and leg loops allow the harness to be donned with both feet on the ground. The VOLT WIND LT harness' anatomical design and wide, semi-rigid waistbelt ensure comfort throughout the workday. It has wear protectors on the waistbelt and below the dorsal point to limit wear when moving about inside the wind turbine tower. VOLT WIND LT is certified to North American and European standards.
VOLT® WIND LT
Seat for VOLT and VOLT LT harnesses for more comfort in suspension
The seat for VOLT harnesses installs in the two side slots of the harness, for increased comfortduring prolonged suspension
Seat for VOLT® harnesses
• A complete solution, with dorsal attachment point
The AVAO BOD and AVAO BOD FAST fullbody
harnesses are equipped with a dorsal attachment point for attaching a fall arrest
system. In case of a fall on this attachment point, a shortened adjustment of the waistbelt to leg loop length means the load is taken up on the leg loops, allowing the user to remain suspended longer while awaiting rescue.
Harnesses for fall arrest, work positioning and suspension
• A lightweight and flexible solution
Combining a seat harness with a separate chest harness is a more lightweight solution, if the user does not need a dorsal attachment point. It is also a solution for hard-to-fit body types, as it allows combining different seat and chest harness sizes.
Comfortable harness for fall arrest, work positioning and suspension
The AVAO BOD fall arrest, work positioning and suspension harness is designed for greater comfort in all situations. Wide, semi-rigid waistbelt and leg loops give excellent support. Its lightweight, breathable construction maximizes air flow. The shoulder straps have a system for stowing the fall arrest lanyard connectors and keeping them within reach. The DOUBLEBACK self-locking buckles at the rear of the harness, between the waistbelt and the leg loops, allow for a shorter adjustment when the dorsal attachment point is used. The harness also facilitates the carrying and organizing of work tools, with multiple equipment loops and retainers for attaching CARITOOL tool holders and TOOLBAG tool-holder pouches. The harness is fastened by a SCREW-LOCK manual locking
carabiner and is certified to European and Russian standards. AVAO BOD features leg loops with DOUBLEBACK self-locking buckles; AVAO BOD FAST has leg loops with FAST LT automatic buckles.
​
AVAO® BOD / AVAO® BOD FAST European version
Chest harness for seat harness
The TOP chest harness transforms AVAO SIT, AVAO SIT FAST, FALCON, FALCON MOUNTAIN
and SEQUOIA SRT seat harnesses into fall arrest harnesses. The foam shoulder straps are widely spaced to reduce neck chafing. When the waistbelt is loaded, they help distribute the load over the shoulders. They also have a system for stowing the fall-arrest lanyard connectors and keeping them within reach.
TOP
Comfortable harness for fall arrest, work positioning and suspension
The AVAO BOD fall arrest, work positioning and suspension harness is designed for greater comfort in all situations. Wide, semi-rigid waistbelt and leg loops give excellent support. Its lightweight, breathable construction maximizes air flow. The shoulder straps have a system for stowing the fall arrest lanyard connectors and keeping them within reach. The DOUBLEBACK self-locking buckles at the rear of the harness, between the waistbelt and the leg loops, allow for a shorter adjustment when the dorsal attachment point is used. The harness also facilitates the carrying and organizing of work tools, with multiple equipment loops and retainers for attaching CARITOOL tool holders and TOOLBAG tool-holder pouches. The harness has an integrated fall indicator on the dorsal
attachment point and is fastened with a TRIACT-LOCK automatic locking carabiner. It is certified to North American and European standards. AVAO BOD features leg loops with DOUBLEBACK self-locking buckles; AVAO BOD FAST has leg loops with FAST automatic buckles.
AVAO® BOD / AVAO® BOD FAST international version
Comfortable seat harness for work positioning and suspension
The AVAO SIT work positioning and suspension seat harness is designed for greater comfort in a variety of situations. Wide, semi-rigid waistbelt and leg loops give excellent support. Its lightweight, breathable construction maximizes air flow. The harness also facilitates the carrying and organizing of work tools, with multiple equipment loops and retainers for attaching CARITOOL tool holders and TOOLBAG tool-holder pouches. This seat harness is designed to be converted into a fall arrest harness when combined with a TOP chest harness, or into a rope access harness when combined with a TOP CROLL S or L chest harness. The AVAO SIT has leg loops with DOUBLEBACK self-locking buckles; AVAO SIT FAST leg loops have FAST automatic buckles.
AVAO® SIT / AVAO® SIT FAST
• A complete solution, with dorsal attachment point
ASTRO BOD FAST full-body harnesses are equipped with a dorsal attachment point for
attaching a fall arrest system. In case of a fall
on this attachment point, a shortened adjustment of the waistbelt to leg loop length means the load is taken up on the leg loops, allowing the user to remain suspended longer while awaiting rescue.
Rope access harnesses
• A lightweight and flexible solution
Combining a seat harness with a separate
chest harness is a more lightweight solution,
if the user does not need a dorsal attachment point. It is also a solution for hard-to-fit body types, as it allows combining different seat and chest harness sizes
Ultra-comfortable rope access harness
With an integrated CROLL L ventral rope clamp, the ASTRO BOD FAST harness is designed for greater efficiency and comfort during rope ascents. The gated ventral attachment point allows optimal integration of equipment (rope clamp, lanyard, seat...). Wide, semi-rigid waistbelt and leg loops give excellent support. They are contoured and lined with breathable foam padding for comfort when suspended. The DOUBLEBACK self-locking buckles at the rear of the harness, between the waistbelt and the leg loops, allow for a shorter adjustment when the dorsal attachment point is used. The harness also facilitates the carrying and organizing of work tools, with multiple equipment loops and retainers for attaching CARITOOL tool holders and TOOLBAG tool-holder pouches. It is certified to European and Russian standards. The ASTRO BOD FAST European version features leg loops with FAST LT automatic buckles.
​
ASTRO® BOD FAST European version
Ultra-comfortable rope access harness
With an integrated CROLL L ventral rope clamp, the ASTRO BOD FAST harness is designed for greater efficiency and comfort during rope ascents. The gated ventral attachment point allows optimal integration of equipment (rope clamp, seat...). Wide, semi-rigid waistbelt and leg loops give excellent support. They are contoured and lined with breathable foam padding for comfort when suspended. The DOUBLEBACK self-locking buckles at the rear of the harness, between the waistbelt and the leg loops, allow for a shorter adjustment when the dorsal attachment point is used. The harness also facilitates the carrying and organizing of work tools, with multiple equipment loops and retainers for attaching CARITOOL tool holders and TOOLBAG tool-holder pouches. It has a fall indicator on the dorsal attachment point and is certified to North American and European standards. ASTRO BOD FAST international version features leg loops with FAST automatic buckles.
ASTRO® BOD FAST European version
Chest harness for seat harness, with integrated CROLL S ventral rope clamp
The TOP CROLL S integrates a CROLL S ventral rope clamp to transform ASTRO SIT FAST, AVAO SIT, AVAO SIT FAST, FALCON and FALCON ASCENT harnesses into rope access harnesses. The textile sternal attachment point optimally reduces weight and bulk. The foam shoulder straps are widely spaced to reduce neck chafing. When the waistbelt is loaded, they help distribute the load over the shoulders. The rear connection, on each side of the waistbelt, offers excellent stability.
TOP CROLL® S
Chest harness for seat harness, with integrated CROLL L ventral rope clamp
The TOP CROLL L integrates a CROLL L ventral rope clamp to transform ASTRO SIT FAST, AVAO SIT,AVAO SIT FAST, FALCON, FALCON ASCENT and SEQUOIA SRT harnesses into rope access harnesses. The foam shoulder straps are widely spaced to reduce neck chafing. When the waistbelt is loaded, they help distribute the load over the shoulders.
TOP CROLL® L
Ultra-comfortable rope access seat harness
The ASTRO SIT FAST rope access seat harness features a gated ventral attachment point that allows optimal integration of equipment (rope clamp, lanyard, seat...). Wide, semi-rigid waistbelt and leg loops give excellent support. They are contoured and lined with breathable foam padding for comfort when suspended. The harness also facilitates the carrying and organizing of work tools, with multiple equipment loops and retainers for attaching CARITOOL tool holders and TOOLBAG tool-holder pouches. This seat harness is designed to be converted into a full body harness when combined with a TOP CROLL S or L chest harness. The ASTRO SIT FAST features leg loops with FAST LT automatic buckles.
ASTRO® SIT FAST
Seat for prolonged suspension
The PODIUM provides optimal comfort during prolonged suspension. The wide seat offers excellent stability. Rigid sides prevent the webbing straps from cutting into the thighs. The easy-to-use seat has two equipment loops and a rear hook, making it easier to store in order to facilitate movement. It connects to ASTRO BOD FAST and ASTRO SIT FAST harnesses with two shackles (find a description of the shackles on page 63).
PODIUM
• For single rope ascent techniques
The SEQUOIA SRT features a ventral attachment point for installing a ZIGZAG mechanical Prusik with the CHICANE and KNEE ASCENT accessories.
Tree care harnesses
• For doubled rope ascent techniques
The SEQUOIA harness waistbelt is equipped
with a FAST automatic buckle for quick and
simple opening and closing, without loss of
adjustment, even while wearing gloves.
Tree care seat harness for single rope ascent techniques
The SEQUOIA SRT is a tree care seat harness for ascents on a single rope. It has a ventral attachment point that allows a ZIGZAG or ZIGZAG PLUS mechanical Prusik to be installed with the CHICANE and KNEE ASCENT accessories. The extra-wide, semi-rigid waistbelt and leg loops provide comfort for the arborist. It is equipped with DOUBLEBACK PLUS self-locking buckles on the waistbelt and FAST LT PLUS automatic buckles on the leg loops. The gated attachment points allow the user to easily connect a ZILLON or MICROFLIP lanyard,
or to install several attachment bridges and accessories directly on the bridge. The harness also facilitates the carrying and organizing of work tools, with multiple equipment loops and retainers for attaching CARITOOL tool holders.
SEQUOIA SRT
Tree care seat harness for doubled-rope ascent techniques
The SEQUOIA is a tree care seat harness for doubled-rope ascent techniques. The extra-wide, semi-rigid waistbelt and leg loops provide comfort for the arborist. The waistbelt is equipped with a FAST automatic buckle for quick and simple opening and closing, without loss of adjustment, even while wearing gloves. The leg loops have FAST LT PLUS automatic buckles. The gated attachment points allow the user to easily connect a ZILLON or MICROFLIP lanyard, or to install several attachment bridges and accessories directly on the bridge. The harness also facilitates the carrying and organizing of work tools, with multiple equipment loops and retainers for attaching CARITOOL tool holders.
SEQUOIA
Shoulder straps (only for SEQUOIA SRT)
Shoulder straps for SEQUOIA SRT seat harness designed for taking the load from the waistbelt and redistributing it to the shoulders for improved comfort. They connect to the ventral attachment point of the harness and to the two slots at the rear of the waistbelt.
​
Seat
Wide seat for a comfortable working position during suspension. It has an adjustable width to reduce bulk and facilitate movement within the tree. It connects to the two gated points on the SEQUOIA and SEQUOIA SRT arborist seat harnesses, using the two shackles.
Adjustable attachment bridge
Adjustable attachment bridge for SEQUOIA and SEQUOIA SRT harnesses allows quick and precise adjustment of the position of progression tools installed on the bridge.
Attachment bridge
Attachment bridge for connection to the two gated attachment points of the SEQUOIA and SEQUOIA SRT arborist seat harnesses, to optimize lateral mobility.
​
RING
The RING connection ring can be used to create multiple anchors or be installed directly onto the SEQUOIA and SEQUOIA SRT harnesses' attachment bridges to improve the arborist's lateral mobility.
Shackles
Shackles for connecting a seat. Find a description of the shackles on page 63.
• For work in suspension
The metal ventral attachment point on the FALCON harness distributes the load between the waistbelt and the leg loops during suspension.
Rescue harnesses
• For efficiency when ascending a rope
The two-part ventral attachment point of the FALCON ASCENT harness increases the efficiency of rope ascents when using a CROLL ventral rope clamp.
• For operations using climbing techniques
The textile bridge construction of the FALCON MOUNTAIN harness favours progression with climbing techniques and makes for comfortable walking.
Lightweight seat harness for suspended rescue
FALCON is a lightweight seat harness with a metal ventral attachment point that distributes the load between the waistbelt and the leg loops during suspended rescue. It has a waistbelt and leg loops that are semi-rigid for comfort and equipped with self-locking DOUBLEBACK buckles for quick and easy adjustment. The rear buckle allows a TOP or TOP CROLL chest harness to be installed.
FALCON
Lightweight seat harness for rescue operations involving rope ascent
FALCON ASCENT is a lightweight seat harness featuring a two-part ventral attachment point that fastens with an OMNI carabiner. This attachment point makes it more efficient during rescue operations involving rope ascent. The FALCON ASCENT harness features a semi-rigid waistbelt and leg loops for maximum comfort and self-locking DOUBLEBACK buckles for quick and easy adjustment. The rear buckle allows a TOP CROLL chest harness to be installed.
FALCON ASCENT
Very lightweight seat harness for rescue operations involving technical climbing
FALCON MOUNTAIN is a very lightweight seat harness for rescue operations involving technical climbing. It features a bridge construction that favorus progression with climbing techniques and makes it comfortable when walking. It has a waistbelt and leg loops that are semi-rigid for comfort and equipped with self-locking DOUBLEBACK buckles for quick and easy adjustment. The rear buckle allows a TOP chest harness to be installed.
FALCON MOUNTAIN
Chest harness for seat harnesses
The CHEST’AIR chest harness transforms FALCON, FALCON MOUNTAIN, AVAO SIT and SEQUOIA SRT seat harnesses into fall arrest harnesses. Connects simply to the harness ventral attachment point for rapid installation. It adapts easily to all body types with its DOUBLEBACK self-locking buckles on the shoulder straps and ventral strap.
CHEST’AIR
Litter for confined spaces
The NEST litter was developed in partnership with the French national caving rescue organization. It allows a victim to be transported horizontally, vertically or at an angle. It is therefore suitable for all technical rope rescue, particularly in confined spaces.
NEST
Litter and evacuation triangles
Rescue litter
Evacuation triangles
Tilting device for NEST litter
The STEF device joins the three connection points of the NEST litter and allows it to be easily tilted according to the terrain.
STEF
Bag for NEST litter
Evacuation triangle with shoulder straps
The PITAGOR is an evacuation triangle with shoulder straps that are easily donned and adjusted thanks to the DOUBLEBACK self-locking buckles.
PITAGOR
Evacuation triangle without shoulder straps
The BERMUDE is an evacuation triangle without shoulder straps that is easily put on and adapts without adjustment to different sizes.
BERMUDE
Spreader for NEWTON harness (European version)
Spreader for NEWTON harness (European version) allows upright descent (for confined spaces).
LIFT
Harness accessories
Harness tool holder
The CARITOOL tool holder provides one-handed tool access and storage. It slips onto the harness straps and stays in place, thanks to its stabilizing clip. The gate has a protective feature that limits accidental snagging. It is available in two sizes.
CARITOOL
Tool pouch
The TOOLBAG tool pouch allows the user to organize his/her tools during suspended work. The cord lock allows the pouch to be closed easily during transport or when moving about. The pouch attaches easily to any type of harness. Available in three sizes: XS, S and L.
TOOLBAG
Multidirectional gated ring
See page 102 for details on the RING OPEN gated ring
RING OPEN
Shackles for connecting a seat.
Connection to the gated ventral attachment point of the harnesses ensures optimal integration of equipment.
Shackles
General purpose harnesses
Specialized harnesses
Helmets
Comfortable helmets
Helmets with webbing suspension for optimal comfort.
Lightweight helmets
Lightweight, compact helmet with hybrid construction liner (EPP and EPS foams).
Protective eye and face shields
Protective eye and face shields for VERTEX and STRATO helmets.
Hats and balaclava
Hats and balaclava for protection against rain and cold.
Helmets
• Comfortable construction
VERTEX helmets have a six-point webbing suspension system, conforming to the shape of the head for maximum comfort. Shock absorption is achieved through deformation of the external shell
Helmets
• Lightweight construction
The liner of STRATO helmets is designed in two parts: EPP (expanded polypropylene) and EPS (expanded polystyrene), for reduced weight. Shock absorption is achieved through deformation of the liner.
Comfortable helmet
The VERTEX helmet is very comfortable, thanks to its six-point textile suspension and CENTERFIT and FLIP&FIT systems, which guarantee that the helmet fits securely on the head. The adjustable-strength chinstrap makes it ideal for both work at height and on the ground. The unventilated outer shell protects against electrical hazards, molten metal splash and flames. With its potential for integration of a Petzl headlamp, hearing protection, and multiple accessories, it is an entirely modular helmet, thus meeting the specific additional needs of professionals.
VERTEX®
Comfortable high-visibility helmet
The high visibility version features a fluorescent outer shell with phosphorescent clips and reflective bands, for optimal visibility of the worker, day or night.
VERTEX® HI-VIZ
Comfortable ventilated helmet
The VERTEX VENT helmet is very comfortable, thanks to its six-point textile suspension and CENTERFIT
and FLIP&FIT systems, which guarantee that the helmet fits securely on the head. The adjustable-strength chinstrap makes it ideal for both work at height and on the ground. It has ventilation holes with sliding shutters to allow airflow through the helmet. With its potential for integration of a Petzl headlamp, hearing protection, and multiple accessories, it is an entirely modular helmet, thus meeting the specific additional needs of professionals.
VERTEX® VENT
Comfortable, ventilated high-visibility helmet
The high visibility version features a fluorescent outer shell with phosphorescent clips and reflective bands, for optimal visibility of the worker, day or night.
VERTEX® VENT HI-VIZ
Lightweight helmet
The STRATO helmet is very lightweight and comfortable, thanks to its CENTERFIT and FLIP&FIT systems, which guarantee that the helmet fits securely on the head. The adjustable-strength chinstrap makes it ideal for both work at height and on the ground. The unventilated outer shell protects against electrical hazards, molten metal splash and flames. With its potential for integration of a Petzl headlamp, hearing protection, and multiple accessories, it is an entirely modular helmet, thus meeting the specific additional needs of professionals.
STRATO
Lightweight high-visibility helmet
The high visibility version features a fluorescent outer shell with phosphorescent clips and reflective bands, for optimal visibility of the worker, day or night.
STRATO HI-VIZ
Lightweight ventilated helmet
The STRATO VENT helmet is very lightweight and comfortable, thanks to its CENTERFIT and FLIP&FIT
systems, which guarantee that the helmet fits securely on the head. The adjustable-strength chinstrap
makes it ideal for both work at height and on the ground. It has ventilation holes that allow airflow
through the helmet. With its potential for integration of a Petzl headlamp, hearing protection, and multiple accessories, it is an entirely modular helmet, thus meeting the specific additional needs of professionals.
STRATO VENT
Lightweight, ventilated high-visibility helmet
The high visibility version features a fluorescent outer shell with phosphorescent clips and reflective bands, for optimal visibility of the worker, day or night.
STRATO VENT HI-VIZ
Eye shield with EASYCLIP system for VERTEX and STRATO helmets
The VIZIR eye shield protects the eyes against projectile hazards. It is easy to install on VERTEX and STRATO helmets with the EASYCLIP attachment system. It also has scratch-resistant and anti-fog coatings.
VIZIR
Helmets
Protective eye and face shields
Tinted eye shield with EASYCLIP system for VERTEX and STRATO helmets
The VIZIR SHADOW eye shield provides eye protection against projectile hazards. It is easy to install on VERTEX and STRATO helmets with the EASYCLIP attachment system. It has a level 2.5 solar protection filter, and anti-scratch and anti-fog treatments.
VIZIR SHADOW
The protector for VIZIR and VIZIR SHADOW protects the eye shields from scratches. It is installed directly on the VIZIR and VIZIR SHADOW eye shields. It allows a Petzl headlamp to be worn, thanks to a mounting slot on the protector.
Protector for VIZIR and VIZIR SHADOW
Face shield for protection against electric arc hazards, with EASYCLIP system for VERTEX and STRATO helmets
The VIZEN face shield protects against electric arc hazards. This full-coverage shield offers face and eye protection while preserving peripheral vision. It is easily installed on VERTEX and STRATO helmets, thanks to the EASYCLIP attachment system. It also has scratch-resistant and anti-fog coatings.
VIZEN
Face shield for tree care for VERTEX and STRATO helmets, with EASYCLIP system
The VIZEN MESH face shield protects against flying wood chips and shavings. This full-coverage shield offers complete face protection while ensuring good visibility. It is easily installed on VERTEX and STRATO helmets, thanks to the EASYCLIP attachment system.
VIZEN MESH
Mounting clips allow a Bollé welding mask to be installed.
Mounting clips for welding mask
Mounting clip allows a Bollé welding face shield to be installed.
Mounting clip for welding face shield
The nametag holder for VERTEX and STRATO helmets allows quick identification of the worker. It is easy to install and provides effective rain protection for business cards.
Nametag holder for VERTEX® and STRATO helmets
Accessories
The nape protector for VERTEX and STRATO helmets provides effective sun and rain protection for the nape of the neck. Fluorescent colors give the worker optimal visibility, night and day. Available in two colors.
Nape protector for VERTEX® and STRATO helmets
The protector for the VERTEX helmet is easy to install and protects the shell from soiling and splash.
Protector for VERTEX® helmet
The protector for the STRATO helmet is easy to install and protects the shell from soiling and splash.
Protector for STRATO helmet
Storage bag to protect VERTEX and STRATO helmets during storage and transport. Thanks to a closed interior compartment, accessories are also protected.
Storage bag for VERTEX® and STRATO helmets
This chinstrap allows the chinstrap of VERTEX and STRATO helmets to be changed or replaced. It allows the worker to modify chinstrap strength in order to adapt the helmet to different environments: work at height or on the ground. Available in two colors and in a longer version.
DUAL chinstrap for VERTEX® and STRATO helmets
Headband with comfort foam for VERTEX and STRATO helmets (pack of 5)
Ready to install headband with comfort foam (standard or absorbent), to extend the life of a VERTEX or STRATO helmet
Headband with comfort foam for VERTEX® and STRATO helmets
Helmets
Accessories
Comfort foam (standard or absorbent), ready to install on headband of a VERTEX or STRATO helmet, to prolong its life.
Comfort foam for VERTEX® and STRATO helmets
Upper foam installs on the liner of the STRATO helmet, to extend its life. It is comfortable, absorbent and machine-washable
Upper foam for STRATO helmet
Transparent stickers allow VERTEX and STRATO helmets to be personalized using a permanent marker or laser printer
Transparent stickers for VERTEX® and STRATO helmets
Reflective stickers for increased visibility of VERTEX helmets.
Reflective stickers for VERTEX®
Reflective stickers for increased visibility of STRATO helmets.
Reflective stickers for STRATO
Breathable cap for wicking perspiration
LINER is a breathable cap for wicking perspiration and drying quickly. The seamless fitted design makes it comfortable to wear under a helmet, without getting in the way
LINER
Protective cap for cold and wind
BEANIE is a cap that protects the head on cold and windy days. The design, specific to each zone, optimizes thermal insulation and regulates moisture. The seamless fitted design and side vents make it comfortable to wear under a helmet, without getting in the way.
BEANIE
Balaclava for protection against cold and wind
BALACLAVA protects the head, the face and the neck on cold, windy days. The design, specific to each one, optimizes thermal insulation and regulates moisture. The seamless fitted design and multiple side vents make it comfortable to wear under a helmet, without getting in the way.
​
BALACLAVA
Helmets
Lanyards and energy absorbers
Work positioning lanyards
Adjustable lanyards used to make work positioning systems, to complement a fall-arrest system. Their length can be very easily and precisely adjusted as necessary for comfortable positioning at a specific work station.
General purpose lanyards
Fall arrest lanyards
Lanyards with an energy absorber, used when there is a fall hazard. Petzl offers three types of lanyards with an absorber:
- single (ABSORBICA-I) or double (ABSORBICA-Y) lanyards with a compact, integrated energy absorber. In case of a fall, the absorber's progressive tearing reduces the deceleration on lightweight users
- lanyards that can be combined with an ABSORBICA energy absorber to create a single or double energy-absorbing lanyard with a maximum length of two meters
​
Rope access lanyards
Fixed-length or adjustable progression lanyards, available in single or double versions.
Specialized lanyards
Tree care lanyards
Adjustable positioning lanyards that allow comfortable positioning for tree care work.
Helivac lanyards
Lanyards for helicopter drop-off and recovery.
• Work positioning lanyards
GRILLON lanyards are sold without connectors, so that they can be combined with any type of connector, depending on the user's requirements.
Work positioning lanyards
• With MGO connector
GRILLON lanyards, in combination with an MGO auto-locking connector, are ideal for connection to metal structures or to large-diameter cables and bars.
• With HOOK connector
GRILLON HOOK lanyards are equipped with a HOOK auto-locking connector, ideal for connections using the harness side attachment points.
Adjustable lanyard for work positioning
The GRILLON adjustable lanyard is used to make work positioning systems, to complement a fall-arrest system. Its length can be very easily and precisely adjusted as necessary for comfortable positioning at the work station. Depending on the configuration, it can be used in single or double mode. GRILLON is available in seven lengths (2, 3, 4, 5, 10, 15 and 20 m), and also in black. It is certified to North American, European and Russian standards.
​
GRILLON
Adjustable work positioning lanyard with high abrasion resistance
The GRILLON PLUS lanyard is used to make work positioning systems, to complement a fall arrest system. Its length can be very easily and precisely adjusted as necessary for comfortable positioning at the work station. The aramid fiber rope provides excellent abrasion resistance. Depending on the configuration, it can be used in single or double mode. GRILLON PLUS is available in two lengths: 2 and 3 m, and is certified to North American, European and Russian standards.
​
GRILLON PLUS
Adjustable work positioning lanyard with HOOK connector
The GRILLON HOOK adjustable lanyard is used to make work positioning systems, to complement a fall-arrest system. Its length can be very easily and precisely adjusted as necessary for comfortable positioning at the work station. Its HOOK connector is ideal for using the lanyard in double mode on the harness side attachment points. GRILLON HOOK European version is available in four lengths (2, 3, 4 and 5 m) and is certified to European and Russian standards.
​
GRILLON HOOK European version
Adjustable work positioning lanyard with HOOK connector
The GRILLON HOOK adjustable lanyard is used to make work positioning systems, to complement a fall-arrest system. Its length can be very easily and precisely adjusted as necessary for comfortable positioning at the work station. Its HOOK connector is ideal for using the lanyard in double mode on the harness side attachment points. GRILLON HOOK international version is available in four lengths (2, 3, 4 and 5 m) and is certified to North American and European standards.
​
GRILLON HOOK international version
Adjustable lanyard for work positioning
GRILLON
Adjustable work positioning lanyard with MGO connector
The GRILLON MGO lanyard is used to make work positioning systems, to complement a fall arrest system. Its length can be very easily and precisely adjusted as necessary for comfortable positioning at the work station. Connector with large gate opening is ideal for connection to metal structures or to large-diameter cables and bars. GRILLON MGO is available in two lengths: 2 and 3 m, and is certified to North American and European standards.
BALACLAVA
MGO OPEN 60
Auto-locking directional connector with large gate opening, and a gated connection point
See page 101 for details on the MGO OPEN 60 connector.
MGO OPEN 60
• For continuous protection without passage of intermediate anchors
ABSORBICA-I single lanyards are designed
particularly for protection on a horizontal lifeline
or on an elevated platform
Fall arrest lanyards
• For continuous protection when passing intermediate anchors
The ABSORBICA-Y lanyards with two arms
allow for continuous protection when passing
an intermediate anchor, by successively
detaching and re-attaching the two arms
Single lanyard with integrated energy absorber
Single lanyard with a compact, integrated energy absorber designed for protection on a horizontal lifeline (rope or cable) or on an elevated platform. It is available in 80 or 150 cm versions (without connectors). It can accept different types of connectors on the lanyard end and is certified to European and Russian standards
​
ABSORBICA-I European version
Single lanyard with integrated energy absorber and captive carabiners
Single lanyard with a compact, integrated energy absorber designed for protection on a horizontal lifeline (rope or cable) or on an elevated platform. It is available in 80 or 150 cm versions (without connectors). Equipped with two captive carabiners, it is certified to North American and European standards.
​
ABSORBICA-I International version
Adjustable single lanyard with integrated energy absorber
Adjustable single lanyard with a compact, integrated energy absorber designed for protection on a horizontal lifeline (rope or cable) or on an elevated platform. This lanyard features the VARIO adjustment system, allowing the lanyard length to be adjusted in order to reduce the potential fall height. ABSORBICA-I VARIO is certified to European and Russian standards.
​
ABSORBICA-I VARIO
Double lanyard with integrated energy absorber
Double lanyard with a compact, integrated energy absorber, for continuous protection when passing intermediate anchors. It is available in 80 or 150 cm versions (without connectors). The 150 cm version has elasticized arms, to avoid hindering progression. Available with or without MGO large-opening connectors, it is certified to European and Russian standards.
​
ABSORBICA-Y European version
Double lanyard with integrated energy absorber, captive carabiner and MGO connectors
Double lanyard with a compact, integrated energy absorber, for continuous protection when passing intermediate anchors. It is available in 80 or 150 cm versions (without connectors). The 150 cm version has elasticized arms, to avoid hindering progression. Equipped with a captive carabiner and two MGO large-opening connectors, it is certified to North American and European standards.
​
ABSORBICA-Y International version
Double lanyard with integrated intermediate tie-back rings and energy absorber, captive carabiner and MGO connectors
Double lanyard with integrated intermediate tie-back rings and compact energy absorber. Designed for continuous protection on very large structures and when passing intermediate anchor points. The TIE-BACK system allows the lanyard ends to be reconnected to fit around structures with a very large cross-section. The arms are elasticized to avoid hindering progression. Equipped with a captive carabiner and two MGO large-opening connectors, it meets North American, European and Russian
standards.
​
ABSORBICA-Y TIE-BACK
Lanyards
Auto-locking directional connector with large gate opening, and a gated connection point
See page 101 for details on the MGO OPEN 60 connector.
​
MGO OPEN 60
Fall arrest lanyards - assembly required
Rope access lanyards
Non-adjustable dynamic rope lanyard
Non-adjustable dynamic rope lanyard combines with an ABSORBICA energy absorber to create an I or Y energy-absorbing lanyard that helps hold the connector in position, with abrasion protection for the ends.
​
JANE
Auto-locking directional connector with large gate opening, and a gated connection point
See page 101 for details on the MGO OPEN 60 connector.
​
MGO OPEN 60
Compact energy absorber
ABSORBICA is a compact energy absorber, for use in combination with a JANE lanyard to make a fall arrest lanyard. Equipped with tear-webbing inside a zippered fabric pouch, the energy absorber is protected from abrasion while allowing for regular inspection. It has two options for installation on the harness, according to the frequency of manipulation.
​
ABSORBICA
Double adjustable progression lanyard
PROGRESS ADJUST is a double adjustable progression lanyard that enables continuous connection for all types of progression (rope ascent, movement along a lifeline...). Thanks to the ADJUST rope adjuster, the length of the adjustable arm can be quickly and easily adjusted. The connectors are held in the correct position for ease of clipping.
​
PROGRESS ADJUST
Single adjustable progression lanyard
PROGRESS ADJUST-I is a single adjustable progression lanyard that allows, when combined with another lanyard, continuous connection for all types of progression (rope ascent, movement along a lifeline...). Thanks to the ADJUST rope adjuster, the length can be quickly and easily adjusted. The connector is held in the correct position for easy clipping.
​
PROGRESS ADJUST-I
Progression lanyard
The PROGRESS progression lanyard allows continuous connection during rope ascents. The connectors are held in the correct position for ease of clipping.
​
PROGRESS
Tree care lanyards
Reinforced adjustable positioning lanyard for tree care work
MICROFLIP is a reinforced adjustable lanyard designed for positioning in tree care work. Its cable core reduces the risk of severing the lanyard and facilitates moving about on the trunk. Yellow color for excellent visibility. MICROFLIP lanyard ropes are also available individually.
​
MICROFLIP
Adjustable work positioning lanyard for tree care
The ZILLON work positioning lanyard for tree care adjusts easily with only one hand, even when loaded. It is designed for use in double mode on the harness side attachment points, or in single mode on the ventral attachment point with the hand on the free end. Yellow color for excellent visibility. ZILLON lanyard ropes are also available individually.
​
ZILLON
Replacement cam-loaded rope clamp for MICROFLIP
Replacement rope clamp for MICROFLIP, featuring an ergonomic cam and integrated cam spring.
MICROGRAB
Helivac lanyard with securing of the drop-off/recovery phases
The LEZARD lanyard is designed for helivac at altitude. It allows the drop-off/recovery phases to be secured thanks to an adjustable arm that can be instantly ejected to free the victim, the rescuer and the helicopter if the latter needs to suddenly leave its stationary position. Manipulating the LEZARD helivac lanyard is easy thanks to the instant identification of the color-coded attachment elements and the very quick and precise adjustment of the adjustable arm with the ADJUST rope adjuster.
​
Helivac lanyard for ground drop-off/recovery
The IGUANE lanyard is designed for ground helivac. Manipulation is easy thanks to the instant identification of the attachment elements by color coding. Lanyard available in two lengths.
​
GUANE
Carabiner for progression lanyard
See page 101 for details on the VERTIGO TWIST-LOCK carabiner.
VERTIGO TWIST-LOCK
Lanyard-end connectors
Carabiner with gated connection point for double lanyard and work positioning lanyard
See page 101 for details on the EASHOOK OPEN carabiner.
EASHOOK OPEN
Auto-locking directional connector with large gate opening, and a gated connection point
See page 101 for details on the MGO OPEN 60 connector
MGO OPEN 60
Auto-locking directional connector with very large gate opening
See page 101 for details on the MGO 110 connector.
MGO 110
Lanyards
Helivac lanyards
LEZARD
Mobile fall arresters
Mobile fall arresters
Installed on a safety rope, mobile fall arresters will lock in the case of shock or sudden acceleration.
• For protection against falls
Mobile fall arresters.
• For rope access
Mobile fall arrester with locking function.
Ropes for mobile fall arresters
Ropes with sewn termination, allowing the ASAP / ASAP LOCK to meet the requirements of the EN 353-2 or ANSI Z359.15 standard.
​
Absorbers for mobile fall arresters
Energy absorbers are connected to mobile fall arresters to limit the impact force on the user in case of a fall.
​
• For protection against falls
The ASAP mobile fall arrester can be combined
(or not) with an ASAP’SORBER energy-absorber.
Mobile fall arresters
• For rope access
The ASAP LOCK has a locking function to reduce the potential fall distance. Additionally, it is drop-resistant when passing intermediate anchors. It is used with an ASAP’SORBER energy-absorber.
Mobile fall arrester with OK carabiner
With its unique locking system, the ASAP sets the standard in fall protection for workers at height. In normal use, the device moves freely along the rope without any manual intervention and follows the user in all his/her movements. In case of shock or sudden acceleration, the ASAP locks on the rope and stops the user. The ASAP may also be combined with an energy absorber to work at a distance from the rope. Equipped with an OK TRIACT-LOCK carabiner, it is certified to European and Russian standards.
​
ASAP® European version
Mobile fall arrester with OXAN carabiner
With its unique locking system, the ASAP sets the standard in fall protection for workers at height. In normal use, the device moves freely along the rope without any manual intervention and follows the user in all his/her movements. In case of shock or sudden acceleration, the ASAP locks on the rope and stops the user. The ASAP may also be combined with an energy absorber to work at a distance from the rope. Equipped with an OXAN TRIACT-LOCK carabiner, it is certified to North American and European standards.
​
ASAP® international version
Mobile fall arrester with locking function
The ASAP LOCK mobile fall arrester is designed to facilitate handling during rope ascents. In normal use, the device moves freely along the rope without any manual intervention and follows the user in all his/her movements. In case of shock or sudden movement, the fall arrester locks on the rope and stops the user. The integrated locking function allows the user to immobilize the device in order to reduce the potential fall distance. The connection arm makes the system drop resistant when passing intermediate anchors. The ASAP LOCK is used with an energy absorber to work at a distance from the rope. It is certified to North American, European, and Russian standards.
​
ASAP® LOCK
Lanyards
Absorbers for mobile fall arresters
Energy absorber for ASAP European version or ASAP LOCK
The ASAP’SORBER energy absorber connects to the ASAP (European version) or ASAP LOCK mobile fall arrester to allow the user to work at a distance from the rope, in order to protect it during certain work phases. Equipped with tear-webbing inside an openable pouch, the absorber is protected from abrasion while allowing for regular inspection. It is available in two lengths, to provide the best balance between distance from the rope and reduced fall length. It is certified to European and Russian standards.
​
ASAP’SORBER European version
Energy absorber for ASAP international version or ASAP LOCK
The ASAP’SORBER energy absorber connects to the ASAP (international version) or ASAP LOCK mobile fall arrester to allow the user to work at a distance from the rope, in order to protect it during certain work phases. Equipped with tear-webbing inside a pouch that opens on each end, the absorber is protected from abrasion, while allowing for regular inspection. It is available in two lengths, to provide the best balance between distance from the rope and reduced fall length. It is certified to North American and European standards.
​
ASAP’SORBER international version
Energy absorber for ASAP or ASAP LOCK
The ASAP’SORBER AXESS energy absorber connects to the ASAP or ASAP LOCK mobile fall arrester to allow the user to work at a distance from the rope, in order to protect it during certain work phases. Equipped with tear-webbing inside a pouch that opens on each end, the absorber is protected from abrasion, while allowing for regular inspection. It can be used in two-person rescue situations for a maximum load of 250 kg. It is certified to North American, European, and Russian standards.
​
ASAP’SORBER AXESS
Low stretch kernmantel rope with sewn termination and good handling, for work at height
See page 133 for details on the AXIS 11 mm rope with sewn termination.
AXIS 11 mm with sewn termination
Static rope with sewn termination for ASAP (international version) or ASAP LOCK
The RAY 12 mm static rope with sewn termination is designed for use with an ASAP (international version) or ASAP LOCK mobile fall arrester. The standard diameter ensures a good grip for easier handling. It has low stretch when put under tension, allowing it to meet the requirements of North American fall protection standards. The sewn termination with protective sheath helps keep the connector in position and facilitates handling. Rope available in five lengths.
​
RAY 12 mm with sewn termination
Ropes for mobile fall arresters
Avoids the risk of snagging
To ensure optimal efficiency, all Petzl carabiners use the Keylock system: the body/gate interface does not have a hook that could snag on anchors, ropes, harness equipment loops...
Connectors
Visual locking indicator
To facilitate equipment checks, SCREW-LOCK
manual locking carabiners have a red band that is visible only when the carabiner is not locked.
Lightweight carabiners
Aluminum carabiners designed for workers at height.
Ultra-lightweight carabiners
Compact aluminum carabiners for workers at height looking to reduce weight to a minimum.
High-strength carabiners
Steel carabiners suitable for difficult environments, primarily used for setting up anchors and for connecting to metal structures.
Lanyard-end connectors
Connectors designed for lanyard ends
Special carabiners
Aluminum carabiners designed for specific uses: with groups, at the end of a lanyard, for additional braking with a descender, and for harness fastening.
Semi-permanent connectors
Connectors designed for semi-permanent connection of equipment
Connector positioning accessories
Accessories that keep the carabiner correctly positioned in devices and at the end of a lanyard.
• For connecting to equipment having a large cross-section
The OK carabiner has a symmetrical oval shape for optimal loading of devices with a large cross section, such as pulleys, rope clamps or mobile
fall arresters.
Connectors
Lightweight carabiners
• For connection to equipment such as descenders or positioning lanyards
The Am'D carabiner has an asymmetric D shape that is ideal for attaching equipment such as descenders or positioning lanyards.
• For connection of multiple items
The WILLIAM has an asymmetric pear shape,
with a large capacity for attaching multiple
elements, and a large gate opening to facilitate their installation.
Lightweight oval carabiner
The lightweight OK carabiner is made of aluminum. It has an oval shape that allows optimal loading of devices with a large cross-section, such as pulleys, rope clamps, and mobile fall arresters. The fluid interior design and Keylock system facilitate handling. It is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK, or the manual SCREW-LOCK. OK can be connected to the CAPTIV bar to favour positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
​
OK
Lightweight asymmetrical carabiner
The Am’D lightweight asymmetrical carabiner is made of aluminum. It has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. The fluid interior design and Keylock system facilitate handling. The Am’D carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system. Am'D may be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
​
Am’D
Lightweight asymmetrical large-capacity carabiner
The lightweight WILLIAM large-capacity asymmetrical carabiner is made of aluminum. It has a pear shape that is practical for easily connecting multiple items. The fluid interior design and Keylock system facilitate handling. The WILLIAM carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK, or the manual SCREW-LOCK. WILLIAM can be used with the CAPTIV bar to favour positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
​
WILLIAM
Connectors
Ultra-lightweight carabiners
Ultra-lightweight asymmetrical carabiner
The compact Sm'D asymmetrical aluminum carabiner is recommended for workers at height looking to reduce weight to a minimum. D shape makes it especially suitable for attaching devices. It is available in two locking systems (automatic TRIACT-LOCK system or manual SCREW-LOCK system), or without a locking system.
​
Sm’D
High-strength oval carabiner
OXAN is a high-strength steel carabiner designed for use in difficult environments. The oval, symmetrical shape allows optimal loading of the carabiner when setting up anchors or connecting to metal structures. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system. OXAN TRIACT-LOCK is available in European or international versions. OXAN can be combined with the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated
with the device.
​
OXAN
High-strength carabiners
High-strength asymmetrical carabiner with large capacity
VULCAN is a high-strength steel carabiner designed for use in harsh environments. The large-capacity asymmetrical shape is ideal for setting multiple anchors. The VULCAN carabiner is available in two locking systems: automatic TRIACT-LOCK system or manual
SCREW-LOCK system. VULCAN TRIACT-LOCK is available in European or international versions.
​
VULCAN
Lightweight asymmetrical high-strength carabiner
The Bm’D lightweight asymmetrical carabiner is made of aluminum. It has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. The fluid interior design and Keylock system facilitate handling. The Bm’D carabiner has the TRIACT-LOCK automatic locking system. The sleeve is reinforced for greater front and lateral gate strength. Bm'D may be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
​
Bm’D
Lanyard-end connectors
Carabiner for progression lanyard
The VERTIGO TWIST-LOCK carabiner is designed for use on progression lanyards. The excellent grip and automatic locking system facilitate handling when passing intermediate anchors. The wide opening and the Keylock system allow the carabiner to be easily connected.
​
VERTIGO TWIST-LOCK
Carabiner with gated connection point for double lanyard and work positioning lanyard
The EASHOOK OPEN carabiner is designed for use at the ends of a double lanyard or work positioning lanyard. The gated connection point allows for direct attachment of the carabiner to the lanyards. If the lanyard is damaged, the connector can thus be reused. The excellent grip and automatic locking system facilitate handling when passing intermediate anchors.
​
EASHOOK OPEN
Auto-locking directional connector with large gate opening, and a gated connection point
MGO OPEN is an auto-locking directional connector with a large gate opening for connection to metal structures or to large-diameter cables and bars. It has a gated connection point for attachment to different types of lanyards. If the lanyard is damaged, the connector can thus be reused.
​
MGO OPEN 60
Auto-locking directional connector with very large gate opening
MGO 110 is an auto-locking directional connector with very large gate opening for connection to metal structures or to very large-diameter cables and bars.
​
MGO 110
Asymmetrical aluminum carabiner, unlocks with a tool
The Am'D PIN-LOCK asymmetrical aluminum carabiner is designed for use with groups. It secures the connection of the user thanks to its PIN-LOCK system, which can only be opened by the operator with a specific unlocking tool. Am'D PIN-LOCK may be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
​
Am’D PIN-LOCK
Carabiner with friction spur for descenders
The FREINO is ideal for adding or adjusting friction during the descent.
FREINO
Multidirectional semi-circle carabiner
Multidirectional semi-circle OMNI carabiner for fastening the FALCON ASCENT harness and for attaching a CROLL ventral rope clamp. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
​
OMNI
Special carabiners
Semi-permanent connectors
Multidirectional gated ring
The RING OPEN gated ring is designed for the semi-permanent connection of equipment. Round shape ensures optimal functioning in all directions. It has a large opening that allows installation of ropes with sewn terminations.
​
RING OPEN
Triangular steel quick link
When closed with a wrench, this steel quick link becomes a semi-permanent anchor ring.
DELTA
Oval steel quick link
When closed with a wrench, this steel quick link becomes a semi-permanent anchor ring
GO
Semi-circle aluminum alloy quick link
When closed with a wrench, this aluminum quick link is used to fasten harnesses that have
two attachment points that must be joined with a connector.
​
Connector positioning accessories
Connector positioning bar (pack of 10)
The CAPTIV positioning bar promotes loading of the carabiner on the major axis, limits the risk of rotation and keeps it integrated with the device or lanyard. CAPTIV is compatible with OK, Am’D, Am’D PIN-LOCK, WILLIAM, OXAN, Bm’D carabiners and the ROLLCLIP A
pulley carabiner.
​
CAPTIV
Connector positioning bar (pack of 10)
The CAPTIV positioning bar promotes loading of the carabiner on the major axis, limits the risk of rotation and keeps it integrated with the device or lanyard. CAPTIV is compatible with OK, Am’D, Am’D PIN-LOCK, WILLIAM, OXAN, Bm’D carabiners and the ROLLCLIP A
pulley carabiner.
​
CAPTIV
Connector positioning bar (pack of 10)
The CAPTIV positioning bar promotes loading of the carabiner on the major axis, limits the risk of rotation and keeps it integrated with the device or lanyard. CAPTIV is compatible with OK, Am’D, Am’D PIN-LOCK, WILLIAM, OXAN, Bm’D carabiners and the ROLLCLIP A
pulley carabiner.
​
CAPTIV
DEMI ROND
Descenders
Self-braking descenders
Self-braking descenders with ergonomic handle and AUTO-LOCK system allow a comfortably controlled descent and easy positioning at the work station. These devices are designed for work at height, rope access, and technical rescue and evacuation
Mechanical Prusiks for tree care
Mechanical Prusiks allow the user to move around efficiently in a tree while benefiting from the handling
of a classic Prusik pulley system.
​
Personal escape system
Rescue device that allows a single person to get him/herself out of a building or structure in case of an emergency. It has a multi-purpose anchor hook adapted for locations where the possibility of finding an anchor point is uncertain.
Standard descenders
Descenders with a simple design, using the friction between the rope and the device to brake a descent. The speed of the descent is regulated by varying the grip on the free end of the rope.
• With anti-panic function and anti-error catch
Designed for work at height, rope access, and technical rescue and evacuation, these devices are equipped with an anti-panic function and an anti-error catch, limiting the risk of an accident due to user error. They are also compatible with auxiliary brakes, in order to increase the braking friction for descents with heavy loads.
​
Descenders
Self-braking descenders
• Compact and lightweight
The RIG descender is compact and lightweight,
and designed for experienced rope access workers.
Self-braking descender with anti-panic function for work at height and rope access work
The self-braking I’D S descender is primarily designed for work at height and rope access work. It has an ergonomic handle that allows convenient descent control. The integrated anti-panic function and anti-error catch limit the risk of an accident due to user error. The AUTO-LOCK system allows users to easily position themselves at the work station without having to manipulate the handle or tie off the device. Once locked, the rope can be taken up without having to manipulate the handle. The safety gate allows the rope to be installed with the device remaining connected to the harness. I'D S is compatible with 10 to 11.5 mm ropes and allows handling of loads up to 250 kg.
​
I’D® S
Self-braking descender with anti-panic function for technical rescue
The I’D L self-braking descender is primarily designed for technical rescue. It has an ergonomic handle that allows convenient descent control. The integrated anti-panic function and anti-error catch limit the risk of an accident due to user error. The AUTO-LOCK system allows users to position themselves without having to manipulate the handle or tie off the device. Once locked, the rope can be taken up without having to manipulate the handle. The safety gate allows the rope to be installed with the device remaining connected to the harness. I'D L is compatible with 12.5 to 13 mm ropes and allows handling of loads up to 280 kg.
​
I’D® L
Self-braking descender with anti-panic function for lowering from an anchor
The I’D EVAC self-braking descender is primarily designed for lowering from an anchor. The ergonomic handle is specifically oriented for managing a load from the anchor and offers comfortable descent control. The integrated anti-panic function and anti-error catch limit the risk of an accident due to user error. The AUTO-LOCK system allows the rope to be automatically locked without having to manipulate the handle or tie off the device. Once locked, the rope can be taken up without having to manipulate the handle. The safety gate allows the rope to be installed with the device remaining connected to the anchor. I'D EVAC is compatible with 10 to 11.5 mm ropes and allows handling of loads up to 250 kg.
​
I’D® EVAC
Open auxiliary brake for I’D S, I’D L and I’D EVAC self-braking descenders
The open auxiliary brake is designed for I'D self-braking descenders. It is used to increase the friction depending on the load and the diameter of the rope, and allows the rope to be inserted or removed at any time.
​
Open auxiliary brake for I'D®
Closed auxiliary brake for I’D S, I’D L and I’D EVAC self-braking descenders
The closed auxiliary brake is designed for I'D self-braking descenders. It allows the friction to be
increased depending on the load and rope diameter, and provides a constant redirect of the rope.
​
Closed auxiliary brake for I'D®
Compact self-braking descender for rope access, designed for experienced users
RIG is a compact self-braking descender for rope access, designed for experienced users. It has an ergonomic handle that allows convenient descent control. The AUTO-LOCK system allows users to easily position themselves at the work station without having to manipulate the handle or tie off the device. Once locked, the rope can be taken up without having to manipulate the handle. The safety gate allows the rope to be installed with the device remaining connected to the harness.
​
RIG
• Standard version
The lower attachment hole is fixed to ensure alignment of the device with the axis of the
worker and to optimize grip.
Descenders
• Version with high-efficiency swivel
The lower attachment hole with high-efficiency
swivel ensures stable and correct positioning
of the mechanical Prusik and optimal rope glide
through the device.
Mechanical Prusiks for tree care
Mechanical Prusik for tree care
The ZIGZAG mechanical Prusik allows the user to move around efficiently in a tree using classic Prusik pulley system technique. The friction chain provides precision and fluidity when moving around. The pulley is mounted on sealed ball bearings to allow the slack to be taken up easily. Can be used on either doubled ropes or a single rope, providing great versatility. The lower attachment hole is fixed to ensure alignment of the device with the axis of the worker and to optimize grip.
​
ZIGZAG®
Mechanical Prusik with high-efficiency swivel, for tree care
The ZIGZAG PLUS mechanical Prusik allows the user to move around efficiently in a tree using classic Prusik pulley system technique. The friction chain provides precision and fluidity when moving around. The pulley is mounted on sealed ball bearings to allow the slack to be taken up easily. Can be used on either doubled ropes or a single rope, providing great versatility. The lower attachment hole with high efficiency swivel ensures stable and correct positioning of the mechanical Prusik and optimal rope glide through the device.
​
ZIGZAG® PLUS
Auxiliary brake for mechanical Prusik on single ropes, for tree care
The CHICANE auxiliary braking device allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes. It provides continuous additional friction on descents. The excellent compatibility of the CHICANE and mechanical Prusik as an assembled unit ensures smooth rope glide through the brake during ascents. The ergonomic handle provides excellent grip and facilitates movement while limb walking. Thanks to the openable side plate, installation is quick and easy.
​
CHICANE
KNEE ASCENT LOOP
Knee ascender assembly with foot loop to facilitate ascents on a single rope, for tree care
The KNEE ASCENT LOOP assembly facilitates the arborist's ascent when using the ZIGZAG or ZIGZAG PLUS mechanical Prusik on a single rope. It contains an upper strap, a CROLL L rope clamp, a lower strap with foot loop and an XS size TOOLBAG tool pouch. The system is entirely adjustable and adapts to all shapes and sizes. All components are available separately
KNEE ASCENT CLIP
Knee ascender assembly with connector for boot, facilitating single rope ascents in tree care
The KNEE ASCENT CLIP assembly facilitates the arborist's ascent when using the ZIGZAG or ZIGZAG PLUS mechanical Prusik on a single rope. It contains an upper strap, a CROLL L rope clamp, a lower strap with connector that attaches to the sewn webbing on the top of the arborist's boot, and an XS size TOOLBAG tool pouch. The system is entirely adjustable and adapts to all shapes and sizes. All components are available separately
HUIT
Figure-8 descender
Figure-8 descender, compact and lightweight. Square shape helps reduce rope twist.
RACK
Variable friction descender with brake bars
The design and configuration of the RACK bars make it easy to set up and insert the rope. Compact and lightweight, the device allows the user to adjust the amount of friction during the descent, to adapt to changing conditions
Descenders
Standard descenders
EXO® AP HOOK
Personal escape system with anchor hook
EXO AP HOOK is a personal escape system with HOOK anchor hook adapted for locations where the possibility of finding an anchor point is uncertain. It has a self-braking system with anti-panic function for quickly moving horizontally, climbing through a window and controlling and stopping a descent. If the user pulls too hard on the handle, the anti-panic function brakes and stops the descent automatically. EXO AP HOOK also includes a rope that resists wear and high temperatures, an Am'D connector with CAPTIV positioning bar, as well as a bag for transporting and attaching the system directly to the harness. Other rope lengths and other types of connectors (EASHOOK...) available by special order.
Personal escape system
Optimal locking
Petzl's frame-loaded rope clamps are designed to function optimally under any conditions (wet, frozen, dirty ropes, for example). They are therefore equipped with a special stainless steel cam. Its unique design, the shape of its teeth and its self-cleaning slot allow optimal grip on the rope without damaging it, while reducing the effort required to slide the device up the rope
Rope clamps
Cam-loaded rope clamp
Rope clamp designed for use in haul systems as a tractor or progress capture device.
Rope clamps for progression
Frame-loaded rope clamps are easy to install and specially designed for rope ascents (handled rope clamps, ventral rope clamps and foot-mounted rope clamps).
Versatile rope clamp
Rope clamp that can be used to ascend a fixed rope,
or as progress capture in a hauling system.
Backup rope clamp
Ultra-compact, lightweight rope clamp allows occasional rope ascents and hauling system set-ups.
PROGRESS ADJUST
Double adjustable progression lanyard
Find a description of the PROGRESS ADJUST lanyard on page 86.
PROGRESS
Rope clamps
Rope clamps for progression
ASCENSION
Handled rope clamp for rope ascents
The ASCENSION handled rope clamp is designed for rope ascents and features an overmolded grip and ergonomic upper part for a comfortable and powerful grip when pulling with one or two hands. The ASCENSION handled rope clamp has a wide lower hole for easily attaching two carabiners for a lanyard and foot loop.
​
FOOTAPE
Adjustable webbing foot loop
The adjustable FOOTAPE foot loop is used with an ASCENSION or BASIC rope clamp for rope ascents. A height-adjustable elastic keeps the foot in the loop, regardless of shoe type
FOOTCORD
Adjustable cord foot loop
The adjustable FOOTCORD foot loop is used with an ASCENSION or BASIC rope clamp for rope ascents. Its 100 % Dyneema® construction increases durability. A height-adjustable elastic keeps the foot in the loop, regardless of shoe type.
LOOPING
Four-step etrier
The LOOPING four-step etrier attaches to an ASCENSION rope clamp for rope ascents or directly onto an anchor for progression in overhangs
CROLL®
Ventral rope clamp
Designed for rope ascents, the CROLL ventral rope clamp is simple to use, thanks to its pinch opening system, which is totally integrated in the clamp to avoid any involuntary snagging. The attachment holes ensure efficient positioning during ascents. It is available in two versions to adapt to different rope diameters.
SECUR
Shoulder straps for positioning the CROLL ventral rope clamp
SECUR shoulder straps position the CROLL ventral rope clamp and attach to AVAO SIT, FALCON, FALCON ASCENT and SEQUOIA SRT harnesses.
ASCENTREE
Double handled rope clamp for tree care
Handled rope clamp designed for doubled rope ascents, the ASCENTREE has ergonomic handles allowing a comfortable and powerful grip when pulling. Catch/cam unit is totally integrated to prevent any involuntary snagging.
PANTIN®
Foot ascender
The PANTIN foot ascender is used with the CROLL, ASCENSION or ASCENTREE rope clamps to make rope ascents faster and less tiring. It is available in right- and left-foot versions.
Rope clamps
Versatile rope clamp
BASIC
Compact, versatile rope clamp
The BASIC rope clamp is very compact, making it easy to grip.
The wide lower hole allows lanyard and foot loop carabiners to be easily connected
Backup rope clamp
Cam-loaded rope clamp
ASCENSION
Backup rope clamp
Extremely compact and lightweight, the TIBLOC is a backup rope clamp for ascending ropes or setting up hauling systems
​
RESCUCENDER
Openable cam-loaded rope clamp
Simple to use and ergonomic, the RESCUCENDER is an openable cam-loaded rope clamp designed for use in haul systems as a tractor or progress capture device.
​
Pulleys
High-efficiency pulleys
Versatile, high-performance pulleys adapted for intensive use
Pulley-carabiners
Pulley-carabiners with excellent efficiency
Progress capture pulleys
Pulleys with an integrated progress capture system may be used to replace a traditional pulley/rope clamp set-up in hauling systems.
Prusik pulleys
High-performance pulleys designed for use with a Prusik friction hitch to build a lightweight progress capture system.
The shape of the side plates allows the knot to be released when it stops against the pulley.
Single pulleys
Lightweight, versatile pulleys designed for situations that do not require a high level of efficiency (redirecting the rope...).
Transport pulleys
Pulleys for movement along a rope or cable. Extremely quick and easy to install, these pulleys have fixed side plates and ensure perfect stability with their two aligned sheaves.
Specialized pulleys
Specialized pulleys are designed for particular applications requiring passage of knots or movement along a mechanical lift cable.
Haul kit
Ready-to-use kit, designed to easily pick off and lower - or simply pick off - a victim.
Pulleys
ROLLCLIP A
Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor
ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
ROLLCLIP Z
Pulley-carabiner that facilitates installation on anchors and devices
ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Pulley-carabiners
PRO
Very high-efficiency loss-resistant pulley
Openable even when attached to the anchor, the PRO pulley is designed for maximum simplicity when setting up hauling or load deviation systems. The side plate that locks under load, the large diameter sheave and the very high efficiency sealed ball bearings make a pulley that is well suited for handling heavy loads.
PARTNER
Ultra-compact, high-efficiency pulley
The PARTNER is an ultra compact, extremely lightweight pulley. It is designed for daily tasks
and on-site rescue
RESCUE
High strength, very high efficiency pulley
The very high efficiency RESCUE pulley is designed for intensive use by rescue professionals
PRO TRAXION
Very efficient loss-resistant progress capture pulley
The PRO TRAXION progress capture pulley is designed to allow rope installation while the pulley is connected to the anchor. With its large diameter sheave and great efficiency, it is particularly appropriate for hauling heavy loads. The side plate locks when loaded and prevents opening of the pulley during use. The lower connection point can be used to create different types of hauling systems.
High-efficiency pulleys
MICRO TRAXION
High-efficiency, ultra-compact progress capture pulley
MICRO TRAXION is an ultra-compact, extremely light progress capture pulley that is exceptionally efficient. The cam can be locked in open position so the device can be used as a simple pulley.
MINI
Highly efficient and lightweight Prusik pulley
The MINI compact pulley offers a lightweight solution for setting up progress capture systems.
Pulley-carabiners
GEMINI
Highly efficient and lightweight double Prusik pulley
GEMINI is a compact double pulley that sets up progress capture systems of high mechanical advantage.
MINDER
High strength, very high efficiency Prusik pulley
MINDER is a high-strength pulley designed for rescue professionals to set up progress capture systems.
TWIN
High strength, very high efficiency double Prusik pulley
TWIN is a high-strength double pulley designed for rescue professionals. It is designed to set up progress capture systems of high mechanical advantage.
Pulley-carabiners
MOBILE
Versatile ultra-compact pulley
Compact and extremely lightweight, the MOBILE pulley is designed for a variety of uses.
FIXE
High strength, very high efficiency double Prusik pulley
TWIN is a high-strength double pulley designed for rescue professionals. It is designed
to set up progress capture systems of high mechanical advantage.
TANDEM® / TANDEM® SPEED
Double pulleys for Tyrolean traverses
TANDEM and TANDEM SPEED are designed for Tyroleans and can accept up to three connectors to facilitate maneuvers. TANDEM is used on a rope. TANDEM SPEED can also be used on a cable because of its wear-resistant sheaves mounted on sealed ball bearings
​
KOOTENAY
Knot-passing pulley
KOOTENAY is a knot-passing pulley that allows passage of joining knots. The large diameter sheave mounted on sealed ball bearings ensures excellent efficiency
ROLLCAB
Roller for movement along cable
ROLLCAB is a roller designed for movement and evacuation along mechanical lift cables
JAG SYSTEM
Haul kit
The JAG SYSTEM haul kit is for pickoffs, making a releasable anchor, or tensioning a system,
thanks to its 4:1 mechanical advantage and excellent efficiency (sheaves with sealed ball bearings). The collapsed kit is highly compact, allowing it to be used even when the distance to the anchor is very short. The JAG SYSTEM haul kit is quick and easy to deploy: it is ready to use thanks to the flexible cover that prevents any risk of tangling. The haul end is color-coded for instant identification. It is available in three lengths: 1, 2 and 5 meters.
​
JAG TRAXION
High-efficiency double progress capture pulley
The JAG TRAXION double progress capture pulley is designed for use with the JAG pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency
​
Transport pulleys
Specialized pulleys
Haul kit
JAG
High-efficiency double pulley
The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency
​
Pulleys
Anchors
Rock and concrete anchors
Elements that allow installation of temporary or permanent fixed anchors.
Rigging equipment
Swivels provide a solution to the problems of twisting and tangling ropes, especially when hauling. Rigging plates allow the work station to be organized and increase the number of anchoring options. The rings allow multiple anchors to be organized.
Anchor straps
Slings designed for installation of easily transportable temporary anchors, offering adjustability, or a choice of lengths.
COEUR BOLT STEEL / STAINLESS / HCR
Anchors comprised of a COEUR hanger, a nut and a bolt (pack of 20)
Different steels suited to various environments
Petzl anchors (hangers and bolts) use different types of steels to adapt the anchor to the environment in which it is used:
• Standard steel, designed for interior uses or non-permanent installations: COEUR BOLT STEEL
• 316L high quality stainless steel, designed for typical exterior uses: COEUR BOLT STAINLESS
• HCR 904 (High Corrosion Resistance) stainless steel, designed for ultra-corrosive environments:
COEUR BOLT HCR
Hangers (COEUR STEEL, COEUR STAINLESS and COEUR HCR) and bolts (BOLT STEEL, BOLT STAINLESS and BOLT HCR) are also available separately (pack of 20).
​
Rock and concrete anchors
Anchors
COEUR PULSE
Removable 12 mm anchor with locking function
The COEUR PULSE is a 12 mm removable stainless steel anchor that can be installed and removed very simply and rapidly, without tools. The locking function limits the risk of involuntary removal.
​
COLLINOX
Forged stainless steel glue-in bolt (pack of 10)
​
AMPOULE COLLINOX
Resin glue for COLLINOX (pack of 10)
BAT’INOX
Forged stainless steel glue-in bolt (pack of 10)
AMPOULE BAT’INOX
Resin glue for BAT’INOX (pack of 10)
MICRO SWIVEL
Compact gated swivel
The compact, gated MICRO SWIVEL is designed for attachment to a locking carabiner. It helps prevent twisting of lanyards and allows correct positioning of devices. Its design without bearings allows it to turn freely when not loaded and to stop moving when loaded in order to maintain the devices in position.
​
SWIVEL OPEN
Gated swivel with sealed ball bearings
The SWIVEL OPEN gated swivel features a wide opening and thus can be attached to a range of products (pulleys, lanyards...). It reduces the bulk and weight of component systems and solves the twisting and tangling problems of ropes and lanyards. Sealed ball bearings offer excellent performance and reliability.
​
SWIVEL
Ball bearing swivel
Available in two sizes, the SWIVEL prevents the rope from twisting when the load is turning.
Sealed ball bearings offer excellent performance and reliability.
​
PAW
Rigging plate
Available in three sizes, the PAW rigging plate is for organizing the work station and creating multi-anchor systems.
​
Rigging equipment
RING OPEN
Multidirectional gated ring
See page 102 for details on the RING OPEN multidirectional gated ring.
​
ANNEAU
Open loop sling
ANNEAU is an open loop sling available in four lengths, color-coded for easy identification of length.
​
ST’ANNEAU
Dyneema® webbing sling
ST’ANNEAU is a lightweight alternative to classic slings, available in three lengths, with color coding for easy identification of length.
​
PUR’ANNEAU
Very lightweight sling in high-modulus polyethylene
PUR’ANNEAU is a very lightweight sling with exceptional durability, thanks to its high-modulus polyethylene construction. It is particularly supple, for easy handling. Available in three lengths, color-coded for easy identification of length.
​
RING
Connection ring
The RING connection ring can be used to create multiple anchors or be installed directly onto the SEQUOIA and SEQUOIA SRT harnesses' attachment bridges to improve the arborist's lateral mobility.
​
Anchor straps
CONNEXION FIXE
Anchor strap
Anchor strap with forged steel D-rings on the ends.
​
CONNEXION VARIO
Adjustable anchor strap
Adjustable anchor strap with adjustment buckle and forged steel D-rings on the ends.
​
CONNEXION FAST
Rapid adjustment anchor strap
Rapid adjustment anchor strap with rapid adjustment buckle and forged steel D-rings on the ends.
​
TREESBEE
False crotch for tree care, designed for ropes with spliced terminations
The TREESBEE anchor strap is used to improve rope glide at the anchor while protecting the tree from abrasion. It is designed for ropes with spliced terminations (the splice goes through the small ring).
​
Anchor straps (cont)
TREESBEE SCREWLINK
False crotch for tree care, designed for ropes with sewn terminations
The TREESBEE SCREWLINK anchor strap is used to improve rope glide at the anchor while protecting the tree from abrasion. It is designed for ropes with sewn terminations (the link opens to let the sewn termination through).
​
GRILLON anchor
Quick adjustment anchor
The adjustable GRILLON anchor can be used to quickly set a fixed anchor point. The length of rope required to set it is easily adjusted with the integrated self-locking device. The removable protective sheath allows smoother rope glide while protecting the rope from abrasive surfaces. It is available in four lengths.
​
GRILLON lifeline
Temporary horizontal lifeline
GRILLON allows a horizontal lifeline to be installed quickly when there is a large work surface to cover. The integrated self-locking device allows easy adjustment of length, depending on the distance between two anchor points. It is available in four lengths to adapt to any situation.
​
Quick adjustment anchor
Temporary horizontal lifeline
Ropes
For work at height
Low stretch kernmantel rope with standard diameter ensures good grip for easier handling.
Low stretch kernmantel ropes
For rope access
Low stretch kernmantel rope with small diameter to ensure very good performance in terms of flexibility and weight
For rescue
Low stretch kernmantel rope with a large diameter that ensures great strength and excellent handling when working with heavy loads.
For progression using rock climbing techniques.
Dynamic rope
Cord for creation of Prusik knots, anchors or haul systems.
Technical cord
Cord for guiding a victim during rescue, or for hauling equipment.
Accessory cord
Devices that protect the rope at rub points.
Rope protectors
• For work at height
Low stretch kernmantel rope with standard
diameter ensures good grip for easier handling.
Ropes
• For rope access
Low stretch kernmantel rope with small
diameter to ensure very good performance
in terms of flexibility and weight.
Low stretch kernmantel ropes
• For rescue
Low stretch kernmantel rope with a large
diameter that ensures great strength and
excellent handling when working with heavy
loads.
AXIS 11 mm
Low stretch kernmantel rope with good handling for work at height
The AXIS 11 mm low stretch kernmantel rope is designed for work at height. The standard diameter ensures a good grip for easier handling. The EverFlex construction guarantees great flexibility and consistent performance over time. Rope available in six colors and four lengths.
​
AXIS 11 mm with sewn termination
Low stretch kernmantel rope with sewn termination and good handling, for work at height
The AXIS 11 mm low stretch kernmantel rope with sewn termination is designed for work at height. The standard diameter ensures a good grip for easier handling. The EverFlex construction guarantees great flexibility and consistent performance over time. The sewn termination with protective sheath helps keep the connector in position and facilitates handling. It is suitable for use with an ASAP mobile fall arrester, or in a rescue kit with an I’D S descender. Rope available in six lengths
​
PARALLEL 10.5 mm
Low stretch kernmantel rope, flexible and lightweight for rope access
The PARALLEL 10.5 mm low stretch kernmantel rope is designed for rope access. The small diameter ensures very good performance in terms of flexibility and weight. It has low stretch when put under tension, increasing efficiency at the start of a rope ascent. The EverFlex construction guarantees great flexibility and consistent performance over time. Rope available in six colors and four lengths.
​
VECTOR 12.5 mm
Low stretch kernmantel, high-strength rope with excellent handling, for rescue
The VECTOR 12.5 mm low stretch kernmantel rope is designed for rescue. The large diameter ensures great strength and excellent grip when handling heavy loads. The EverFlex construction guarantees great flexibility and consistent performance over time. Rope available in six colors and four lengths.
​
MAMBO® 10.1 mm
Dynamic rope for progression using climbing techniques
The 10.1 mm diameter MAMBO dynamic rope is designed for work at height professionals
that use climbing techniques for progression. The thick sheath improves abrasion
resistance
​
SEGMENT 8 mm
Technical cord
The SEGMENT 8 mm technical accessory cord is used when creating Prusik knots, anchors
or haul systems. The EverFlex construction guarantees great flexibility and consistent performance over time. Cord available in three lengths.
​
Cords
Accessory cords
These rugged and durable cords are for guiding a victim during rescue, or for hauling equipment. Available in four diameters, in a 120 meter roll.
​
Ropes
Low stretch kernmantel ropes
Technical cord
Accessory cord
PROTEC
Flexible protection
Flexible PROTEC protection helps protect a fixed rope from abrasion. It is quick and easy to install.
​
SET CATERPILLAR
Articulated protector
The SET CATERPILLAR articulated protector helps protect a moving rope from abrasion.
The number of modules can be adapted to the terrain
​
ROLL MODULE
Articulated protector with rollers
ROLL MODULE is an articulated protector with rollers designed to guide a moving rope and
protect it from abrasion. It offers the possibility of adapting the number of modules to the terrain and of minimizing abrasion.
​
Low stretch kernmantel ropes
Ropes
Packs and accessories
Durable packs
Robust and comfortable, these packs are designed for organizing equipment, bringing it to the worksite and carrying it in a vertical
environment.
Upright packs
Placed on the ground, these packs keep their shape, even when empty, and thus facilitate access to their interior.
Tree care accessories
Specific products that help with placing an access rope in a tree.
Gloves
Protective gloves
Accessories
Crampons and knives that facilitate working and moving around.
TRANSPORT 45L
Durable large-capacity bag
The TRANSPORT is an especially comfortable and durable 45 liter backpack.
It is made of PVC-free material, and its welded construction provides great strength.
It is ideal for long-distance carries with its padded back panel, waistbelt and shoulder straps.
It is made for use under difficult conditions, and also has an ID card pocket
PORTAGE 30L
Durable medium-capacity bag
The PORTAGE is a durable and comfortable 30 liter backpack. It is made of PVC-free material, and its welded construction provides great strength. With its padded shoulder straps, it is comfortable during long carries. It is made for use under difficult conditions,
and also has an ID card pocket.
​
PERSONNEL 15L
Durable small-capacity bag
The PERSONNEL is a durable and lightweight 15 liter backpack. It is made of PVC-free material, and its welded construction provides great strength. It is made for use under difficult conditions, and also has an ID card pocket.
​
Durable packs
Packs and accessories
PORTO
Webbing equipment loop
Webbing equipment loop attaches to a pack’s internal loop for organizing equipment.
​
BOLTBAG
Equipment pouch
Equipment pouch for organizing a hammer, bolting gear and other equipment. It has two pockets and exterior holster
​
BUCKET
Fabric pack, remains upright
Simple and durable, the BUCKET bag allows the user to store a rope and any associated
equipment. It remains upright and keeps its shape, even when empty, for easy access to the contents of the bag. It is available in two colors and two versions: 25 and 35 liters.
​
JET
Throw-bag
Double-layer construction gives the JET throw-bag excellent longevity. Streamlined shape facilitates passage through tree branches. It is available in three versions: 250, 300
and 350 g.
​
AIRLINE
Throw-line
The AIRLINE throw-line offers an excellent compromise between flexibility and rigidity, for an accurate throw without the formation of knots as it comes out of the bag. The excellent sheath-core bond maintains a round cross-section, ensuring good rope glide through the tree. It is available in two versions: 60 and 300 meters.
​
Durable packs
ECLIPSE
Storage for throw-line
ECLIPSE provides easy storage for AIRLINE throw-lines and JET throw-bags. The double bottom allows two throw-lines to be stored separately. Once folded into the small bag, it all fits perfectly into the BUCKET pack.
​
Tree care accessories
CORDEX
Lightweight belay/rappel gloves
These lightweight belay/rappel gloves combine the durability of a work glove with the precise fit and dexterity of a thinner glove. Double-layered leather protects the palm and other high-wear areas. The back is made of abrasion resistant, breathable stretch nylon, ensuring comfort and fit. The low profile neoprene cuff with Velcro closure features a reinforced carabiner hole for attaching the gloves to your harness.
​
Gloves
Packs and accessories
CORDEX PLUS
Belay/rappel gloves
These medium weight belay/rappel gloves offer extra protection without sacrificing dexterity. Double-layer leather and padding protect the palm from heat generated during long rappels or lowers. Fingertips and other high-wear areas are reinforced for increased durability. The back is made of leather with abrasion-resistant stretch nylon at key flex areas. The low profile neoprene cuff with Velcro closure features a reinforced carabiner hole for attaching the gloves to your harness.
​
SPATHA
Knife with carabiner hole
The SPATHA knife is designed to accompany the worker at height during all daily tasks. The profile of the blade allows easy cutting of ropes and cords. It has a carabiner hole for easily attaching the knife to the harness. It is easy to manipulate with its textured wheel, even when wearing gloves, and can be locked in the open position.
​
CRAB 6
6-point crampons
Six-point crampons, adaptable to all shoe sizes, used for moving over talus and snow- and ice-covered slopes
​
SPIKY PLUS
Anti-slip soles
Anti-slip soles, adaptable to all shoe sizes, used for moving over snow and frozen or slippery surfaces.
​
Accessories
Kits
Temporary vertical lifelines and fall arrest kits
Temporary vertical lifelines and ready-to-use kits designed for belaying and fall protection.
Rescue kit
Ready-to-use kit, designed to pick off and lower a victim
Fall arrest and work positioning kits
Ready-to-use kit designed to protect against falls and for positioning at a work station
ASAP® FALL ARREST KIT
Kit for protection against falls with NEWTON harness and ASAP mobile fall arrester
ASAP FALL ARREST KIT is a ready-to-use kit designed to protect against falls from height. It contains a NEWTON fall arrest harness, an ASAP mobile fall arrester, an ASAP'SORBER energy absorber, two OK TRIACT-LOCK carabiners, an ANNEAU open sling, an AXIS 11 mm rope with sewn termination, a weight, and a BUCKET bag. The kit is available in two sizes and four lengths.
ASAP® LOCK FALL ARREST KIT
Kit for protection against falls with NEWTON harness and ASAP LOCK mobile fall arrester
ASAP LOCK FALL ARREST KIT is a ready-to-use kit designed to protect against falls from height. It contains a NEWTON fall arrest harness, an ASAP LOCK mobile fall arrester with locking function, an ASAP'SORBER energy absorber, two OK TRIACT-LOCK carabiners, an ANNEAU open sling, an AXIS 11 mm rope with sewn termination, a weight, and a BUCKET bag. The kit is available in two sizes and four lengths.
​
ABSORBICA-Y FALL ARREST KIT
Kit for protection against falls with NEWTON EASYFIT harness and ABSORBICA-Y 150 MGO lanyard
ABSORBICA-Y FALL ARREST KIT is a ready-to-use kit designed to protect against falls. It is optimized for work at height requiring connection to metal structures or large-diameter cables and bars. The kit contains a NEWTON EASYFIT fall arrest harness, a double lanyard with a 150 cm ABSORBICA-Y energy absorber with MGO large-opening connectors, an OK TRIACT-LOCK carabiner, a CAPTIV positioning bar, and a BUCKET bag. It is available in two sizes.
​
Fall arrest and work positioning kit
FALL ARREST AND WORK POSITIONING KIT
Fall arrest and work positioning kit with VOLT harness, ABSORBICA-Y 150 MGO lanyard, and GRILLON HOOK
FALL ARREST AND WORK POSITIONING KIT is a ready-to-use kit designed to protect against falls and for positioning at a work station. It is optimized for work at height requiring connection to metal structures or large-diameter cables and bars. The kit contains a VOLT fall arrest and work positioning harness, a double lanyard with a 150 cm ABSORBICA-Y energy absorber with MGO large-opening connectors, a 2-meter GRILLON HOOK adjustable work positioning lanyard, two OK TRIACT-LOCK carabiners, two CAPTIV positioning bars, and a BUCKET bag. It is available in two sizes.
Temporary vertical lifelines and fall arrest kits
Kits
Temporary vertical lifelines and fall arrest kits
Kits
ASAP® VERTICAL LIFELINE
Vertical lifeline for protection against falls with ASAP mobile fall arrester
ASAP VERTICAL LIFELINE is a temporary vertical lifeline designed for belaying and to protect against falls from height. It contains an ASAP mobile fall arrester, an ASAP'SORBER energy absorber, two OK TRIACT-LOCK carabiners, an ANNEAU open sling, an AXIS 11 mm rope with sewn termination, a weight, and a BUCKET bag. It is available in two lengths.
​
CORDEX PLUS
Vertical lifeline for protection against falls with ASAP LOCK mobile fall arrester
ASAP LOCK VERTICAL LIFELINE is a temporary vertical lifeline designed for belaying and to protect against falls from height. It contains an ASAP LOCK mobile fall arrester with locking function, an ASAP'SORBER energy absorber, two OK TRIACT-LOCK carabiners, an ANNEAU open sling, an AXIS 11 mm rope with sewn termination, a weight, and a BUCKET bag. It is available in two lengths.
JAG RESCUE KIT
Reversible rescue kit with JAG SYSTEM haul kit and I’D EVAC descender
The JAG RESCUE KIT is a ready-to-use reversible rescue kit designed to easily pick off and lower a victim. It contains a JAG SYSTEM haul kit, a RING OPEN gated ring, an I’D EVAC descender with integrated brake, a CONNEXION FIXE 150 cm anchor strap, a BUCKET bag and an AXIS 11 mm rope with two sewn terminations. It is available in three lengths: 30, 60 and 120 m.
​
Rescue kits
Kits
LIGHTING
The Petzl headlamp range covers the full spectrum of professional needs, from intensive to occasional use, and for different work environments that require varying degrees of brightness.
A line for every activity
Come face-to-face without blinding each other, for better teamwork
The Petzl difference
Once activated, the FACE2FACE function triggers a sensor that detects other DUO headlamps within 8 meters and automatically dims the lighting if they face each other. The light returns to its original intensity once the other headlamp is no longer in its line of sight.
Available on DUO S, DUO Z1 and DUO Z2 headlamps.
The HYBRID CONCEPT construction allows Petzl's compact headlamps to run on either the CORE rechargeable battery or three AAA/LR03 batteries, without an adapter.
- CORE rechargeable battery is an economical solution for frequent and/or intensive use
- AAA/LR03 batteries for occasional use, with very long burn time
Available on all TACTIKKA CORE, TACTIKKA +RGB, TACTIKKA + and TACTIKKA headlamps.
Many wear options to meet the specific needs of each work situation
​
All Petzl headlamps are designed to be worn on the head or a helmet, while allowing for tilting of the headlamp
​
on the head with the adjustable headband - on Petzl helmets, using their mounting plates - on other helmets, using adhesive plates,
available as accessories
Choosing the energy source to fit the need
Choosing a Petzl headlamp means selecting a work tool designed to withstand the most severe conditions of use, while ensuring maximum reliability.
Petzl quality
Optical quality for optimal visual comfort
Petzl headlamps ensure maximum visual comfort for the user:
lighting is uniform and has no bright point in the center, no spotting, no dark areas. Each batch of LEDs is tested and selected according to proper color homogeneity, low energy consumption, and high luminous flux. Each Petzl headlamp is individually inspected before leaving the factory. These operations include a test to measure lighting performance and beam homogeneity with the help of a digital camera.
Individual test of each lamp
Each model must pass particularly stringent tests:
- for shock resistance, fall resistance and crushing (including at low temperatures)
- for functional reliability (mechanical endurance)
- individual inspection and test at the end of the assembly line
(final quality check)
- for water resistance
Consideration of photobiological risk
Petzl has chosen to present information in its product instructions about the risks to the eyes associated with LED lighting. For this, the company uses the IEC 62778 and EN 62471: 2008 standards, Photobiological safety of lamps and devices using lamps. This standard classifies lamps according to risk groups.
The risk groups are as follows:
- Risk group 0: no risk
- Risk group 1: low risk. The product presents no risk related to exposure limits under normal usage conditions
- Risk group 2: moderate risk. The reflex to look away from the lamp suffices to reduce the risk
- Risk group 3: high risk. The product can present a risk even with a momentary or short exposure
​
Brightness and burn time
A question of balance
Brightness and burn time are two inextricably linked parameters of any headlamp, regardless of its lighting technology. For a given quantity of energy, increasing the brightness automatically decreases burn time, and vice versa.
• Prioritizing burn time:
STANDARD LIGHTING
Brightness decreases gradually as the batteries are drained. It is the most common technology
​
​
​
​
​
​
• Prioritizing guaranteed brightness over time:
CONSTANT LIGHTING
Brightness stays constant as the batteries drain. When the batteries are almost drained, the headlamp switches automatically to reserve mode, with weaker output that prolongs lighting time.
​
Brightness: the shape of the beam directly affects lighting distance
Lighting distance depends directly on brightness, but mainly on the shape of the beam. In fact, given the same brightness, lighting distance will vary depending on the shape of the beam. Petzl indicates the different lighting modes available for each headlamp. These modes correspond to specific conditions of use: close-range work, moving around, seeing at a distance.
If an explosion hazard is identified in an environment, the hazardous areas are classified as areas at risk, depending on the prevalence and type of combustible, gas, or dust. All of the materials used in these zones must conform with current regulations for this type of zone (ATEX and/or HAZLOC).
​
Hazardous areas
Environments and standards
The IP Protection Index is an international standard. This index classifies the level of protection
offered by equipment against intrusions by solids (e.g. dust) and liquids (e.g. water, oil).
The most frequent indexes for headlamps are:
- IPX4 for water resistant
- IPX7 for waterproof
- IP67 dustproof and waterproof
How do you read the protection index?
​
Classification of ATEX / HAZLOC zones
The IP Protection Index
Choosing your Petzl headlamp for hazardous areas in conformity with regulations
Environments and standards
Headlamp specifications
Headlamp specifications
Durable and powerful, they are designed for intensive use in industry, maintenance and inspection.
Performance headlamps
DUO S
Ultra-powerful, rechargeable multi-beam headlamp, featuring the FACE2FACE anti-glare function. 1100 lumens
​
DUO Z1
Powerful rechargeable multi-beam headlamp with FACE2FACE anti-glare function, certified for use in ATEX hazardous areas. 360 lumens
​
DUO Z2
Powerful multi-beam headlamp that runs on standard batteries, with FACE2FACE anti-glare function, for use in ATEX hazardous areas. 430 lumens
​
Performance headlamps
• Ultra-powerful lighting that
runs on rechargeable battery
• Powerful lighting that
runs on rechargeable battery
• Powerful lighting
that runs on regular batteries
DUO S
Ultra-powerful, rechargeable multi-beam headlamp, featuring the FACE2FACE anti-glare function. 1100 lumens
Ultra-powerful with 1100 lumens in BOOST mode, the DUO S is the most powerful rechargeable headlamp in the Petzl line. It is multi-beam, and has five lighting modes, making it adaptable to every situation: close-range work, proximity, movement, rapid movement and long-range vision. Featuring the FACE2FACE anti-glare function, the DUO S headlamp allows those working in a group to face each other without blinding one another, to work together more effectively. It can be worn on VERTEX and STRATO helmets, thanks to the included mounting plates.
​
DUO Z1
Powerful rechargeable multi-beam headlamp with FACE2FACE anti-glare function,
certified for use in ATEX hazardous areas. 360 lumens
DUO Z1 is a headlamp with a maximum 360 lumens of lighting in BOOST mode that runs on a rechargeable battery. It is multi-beam, and has four lighting modes, making it adaptable to every situation: close-range work, proximity, movement and long-range vision. Featuring the FACE2FACE anti-glare function, the DUO Z1 headlamp allows those working in a group to face each other without blinding one another, enabling them to work more effectively together. It can be worn on VERTEX and STRATO helmets, thanks to the included mounting plates. It meets ATEX zone 1/21 (II 2 GD Ex ib IIB T4 Gb IIIB T135° C Db) certification requirements for work in hazardous areas.
Pack of 5 DUO Z1
Pack of 5 DUO Z1 headlamps with charging rack
Pack of five DUO Z1 headlamps - comes with charging rack that allows simultaneous charging of five batteries.
​
DUO Z2
Powerful multi-beam headlamp that runs on standard batteries, with FACE2FACE
anti-glare function, for use in ATEX hazardous areas. 430 lumens
The DUO Z2 headlamp provides a powerful 430 lumens in BOOST mode, and runs on regular batteries. It is multi-beam, and has four lighting modes, making it adaptable to very situation: close-range work, proximity, movement and long-range vision. Featuring the FACE2FACE anti-glare function, the DUO Z2 headlamp allows those working in a group to face each other without blinding one another, enabling them to work more effectively together. It can be worn on VERTEX and STRATO helmets, thanks to the included mounting plates. It meets ATEX zone 2/22 (II 3 GD Ex ic IIB T4 Gc IIIB T135° C Dc) certification requirements for work in hazardous areas.
​
ACCU 2 DUO Z1
Rechargeable battery for DUO Z1 headlamp, usable in ATEX zone
Very high capacity rechargeable battery, 23.68 Wh, designed for the DUO Z1 headlamp. Durable and ATEX zone 1/21 (II 2 GD Ex ib IIB T4 Gb IIIB T135° C Db) certified, it also features quick connection to the headlamp and an energy gauge for monitoring the battery's charge level.
​
Accessories
ACCU 2
Rechargeable battery for DUO S headlamp
High-performance rechargeable battery designed for the DUO S headlamp. It is durable, and features quick connection to the headlamp and an energy gauge for monitoring the battery's charge level.
​
5 DUO Z1 charging rack
Charging rack, which allows simultaneous charging of five DUO Z1 headlamp batteries
EUR/US/UK compatible charging rack allows simultaneous charging of up to five ACCU 2 DUO Z1 rechargeable batteries.
​
ACCU 2 DUO Z1 charger
Wall charger for ACCU 2 DUO Z1 rechargeable battery
EUR/US compatible quick wall charger for ACCU 2 DUO Z1 rechargeable battery.
​
Quick charger
Quick wall charger for ACCU 2 rechargeable batteries
Compatible quick wall charger for ACCU 2 rechargeable battery. Available in two versions: EUR/US compatible or UK compatible.
​
Extension cord for headlamp
Extension power cable for DUO S headlamp
The extension cord for the DUO S headlamp allows the user to reduce the weight carried on the head by moving the rechargeable battery to a pocket or connecting it to the back of a harness.
​
PRO ADAPT
Adhesive accessory for mounting a DUO headlamp on any type of helmet
PRO ADAPT consists of two adhesive plates for mounting a DUO Z1, DUO Z2, or DUO S headlamp on a helmet, and allows for tilting of the headlamp. The system is especially resistant to impact and moisture.
​
Performance headlamps
Compact, durable headlamps
Headlamps designed for frequent use, for the energy, networks, building, and maintenance markets.
PIXA 3R
Rechargeable headlamp for use in ATEX hazardous areas, suitable for proximity lighting, movement and long-range vision. 90 lumens
​
PIXA Z1
Headlamp for use in ATEX hazardous areas, suitable for proximity lighting, movement and long-range vision. 100 lumens
​
PIXA 3
Headlamp for proximity lighting, movement and long-range vision. Available in ATEX or HAZLOC versions. 100 lumens
​
PIXA 2
Headlamp suitable for proximity lighting and movement. Available in ATEX or HAZLOC versions. 80 lumens
​
PIXA 1
Headlamp suitable for proximity lighting. Available in ATEX or HAZLOC versions. 60 lumens
​
Performance headlamps
• For close-range work, movement, and long-range vision
• For close-range work and movement
• For close-range work
PIXA® Z1
Headlamp for use in ATEX hazardous areas, suitable for proximity lighting, movement and long-range vision. 100 lumens
The PIXA Z1 headlamp is durable and versatile. The multi-beam adapts to all situations:
close-range work, movement, and long-range vision. It meets ATEX zone 1/21 (II 2 GD Ex ib IIB T4 Gb IIIB T135° C Db) certification requirements for work in hazardous areas.
​
PIXA® 3R
Rechargeable headlamp for use in ATEX hazardous areas, suitable for proximity lighting, movement and long-range vision. 90 lumens
The PIXA 3R headlamp is a durable, rechargeable headlamp suitable for frequent use by
professionals. The multi-beam adapts to all situations: close-range work, movement, and long-range vision. CONSTANT LIGHTING technology: brightness does not gradually decrease as the batteries are drained. It meets ATEX zone 2/22 (II 3 GD Ex ic IIB T4 Gc IIIC T135° C Dc) certification requirements for work in hazardous areas.
​
PIXA® 3
Headlamp for proximity lighting, movement and long-range vision. Available in ATEX or HAZLOC versions. 100 lumens
The PIXA 3 headlamp is durable and versatile. The multi-beam adapts to all situations: close-range work, movement, and long-range vision. CONSTANT LIGHTING technology: brightness does not decrease gradually as the batteries are drained. Available in two versions: ATEX zone 2/22 (II 3 GD Ex nA ic IIB T4 Gc tc, IIIC T135° C Dc) or HAZLOC Class 1 Div II and Class 2 Div II.
​
PIXA® 2
Headlamp suitable for proximity lighting and movement. Available in ATEX or HAZLOC versions. 80 lumens
The PIXA 2 is a durable headlamp offering lighting that allows the user to work comfortably
on tasks close at hand or to move around safely. CONSTANT LIGHTING technology: brightness does not decrease gradually as the batteries are drained. Available in two versions: ATEX zone 2/22 (II 3 GD Ex nA ic IIB T4 Gc tc, IIIC T135° C Dc) or HAZLOC Class 1 Div II and Class 2 Div II.
​
PIXA® 1
Headlamp suitable for proximity lighting. Available in ATEX or HAZLOC versions.
60 lumens
The PIXA 1 is a durable headlamp offering lighting that allows the user to work comfortably on tasks close at hand. CONSTANT LIGHTING technology: brightness does not decrease gradually as the batteries are drained. Available in two versions: ATEX zone 2/22 (II 3 GD Ex nA ic IIB T4 Gc tc, IIIC T135° C Dc) or HAZLOC Class 1 Div II and Class 2 Div II.
​
PIXADAPT
Accessory for mounting a PIXA headlamp on a helmet
The PIXADAPT is a piece that allows the user to mount or unmount a PIXA headlamp on a helmet any time, and still keeps the option of adjusting the tilt of the headlamp. PIXADAPT is compatible with Petzl helmets with or without eye shield. For other helmets, verify compatibility with the helmet manufacturer.
​
RUBBER
Rubber headband for PIXA headlamp, compatible with all helmet types
The RUBBER headband adapts to all helmets on the market and holds the PIXA headlamp
securely in position.
​
Rechargeable battery for PIXA® 3R
Rechargeable Lithium-Ion polymer battery, 930 mAh
Rechargeable Lithium-Ion polymer battery, 930 mAh, recharges separately or on the headlamp, for quick charge.
​
POCHE PIXA®
Carry pouch for PIXA headlamp
The POCHE PIXA pouch allows the PIXA headlamp to be carried and protected any time.
The headlamp is thus always readily accessible on the waistbelt.
​
Accessories
Compact, durable headlamps
Ultra-compact headlamps
Practical, lightweight headlamps. Designed for occasional use for shows, the workshop, and for small maintenance jobs.
​
TACTIKKA +RGB
Compact headlamp with white or red/green/blue lighting to preserve night vision and stealth. 250 lumens
​
TACTIKKA +
Compact headlamp with white light and red light to preserve night vision and stealth. 250 lumens
​
TACTIKKA
Compact headlamp with white light and red light to preserve night vision and stealth. 200 lumens
​
e+LITE
Ultra-compact emergency headlamp. 50 lumens
​
TACTIKKA CORE
Compact multi-beam headlamp with red lighting and CORE rechargeable battery. 350 lumens
​
Ultra-compact headlamps
• Very powerful, with rechargeable battery
​
• To preserve night vision and stealth
​
• For emergencies
​
TACTIKKA® CORE
Compact multi-beam headlamp with red lighting and CORE rechargeable battery. 350 lumens
The TACTIKKA CORE headlamp offers 350 lumen brightness. It is ideal for close-range work,
as well as for moving around. Featuring a mixed beam, it provides wide, focused or red stealth lighting. A HYBRID headlamp that comes with CORE, a battery that is rechargeable via standard USB port. It is compatible with standard AAA/LR03 batteries (not included)
without the need for an adapter.
​
TACTIKKA® +RGB
Compact headlamp with white or red/green/blue lighting to preserve night vision and stealth. 250 lumens
Designed for occasional use, the multi-beam TACTIKKA +RGB headlamp offers 250 lumens of power and versatile lighting: comfortable proximity lighting for close-range work, focused lighting for distance vision when moving around, and red, green or blue lighting to ensure stealth and preserve night vision. TACTIKKA +RGB is a HYBRID headlamp that is also
compatible with the CORE rechargeable battery.
​
TACTIKKA® +
Compact headlamp with white light and red light to preserve night vision and stealth. 250 lumens
Designed for occasional use, the multi-beam TACTIKKA + headlamp offers 250 lumens of power and versatile lighting: comfortable proximity lighting for close-range work, focused lighting for distance vision when moving around, and red lighting to ensure stealth and preserve night vision. TACTIKKA + is a HYBRID headlamp that is also compatible with the CORE rechargeable battery.
​
TACTIKKA®
Compact headlamp with white light and red light to preserve night vision and stealth. 200 lumens
Designed for occasional use, the TACTIKKA headlamp offers 200 lumens of power and versatile lighting: comfortable proximity lighting for close-range work and red lighting to preserve night vision and stealth. TACTIKKA is a HYBRID headlamp that is compatible with the CORE rechargeable battery.
​
e+LITE®
Ultra-compact emergency headlamp. 50 lumens
Ultra-lightweight and very compact, the e+LITE emergency headlamp should always be with you. Thanks to its carry case, it is always ready to use and can be stored with its batteries for ten years in a backpack, a vest, or an emergency kit, or used as a back-up headlamp. Its white or red, continuous 50-lumen lighting or strobe lighting helps you to be seen. The whistle integrated in the elastic headband allows the user to signal an emergency. Weighing only 26 grams, e+LITE is an ideal emergency headlamp.
​
CORE
Rechargeable battery compatible with Petzl HYBRID headlamps
Large capacity Lithium-Ion 1250 mAh rechargeable battery guarantees high performance for HYBRID headlamps: TACTIKKA CORE, TACTIKKA, TACTIKKA + and TACTIKKA +RGB, even at low temperatures. It recharges directly with the integrated USB port. The CORE rechargeable battery offers an economical and sustainable solution as the main power supply, or as a back-up battery.
​
FIXATION TACTIKKA®
Kit for mounting a TACTIKKA, TACTIKKA +, TACTIKKA +RGB or TACTIKKA CORE type headlamp on a STRATO or VERTEX helmet
FIXATION TACTIKKA is a kit that allows the user to mount or unmount a TACTIKKA, TACTIKKA +, TACTIKKA +RGB or TACTIKKA CORE headlamp on a helmet any time, and keeps the option of adjusting the tilt of the headlamp. The system is especially resistant to impact and moisture.
​
KIT ADAPT
Kit for mounting a TIKKA type headlamp onto a helmet
The KIT ADAPT allows the user to mount or unmount a TIKKA headlamp on a helmet any time, and keeps the option of adjusting the tilt of the headlamp.
​
Accessories
Ultra-compact headlamps
POCHE
Carrying case for ultra-compact headlamps
The POCHE case is for transport and protection of TACTIKKA, TACTIKKA +, TACTIKKA +RGB and TACTIKKA CORE headlamps in any situation. The headlamp is thus always readily accessible on the waistbelt.
​
Product index
A
ABSORBICA L064AA00 Pg86
ABSORBICA-I L64IA / L64IU Pg85
ABSORBICA-I VARIO L64IAR 150 Pg85
ABSORBICA-Y L64YA / L64YAM / L64YUM Pg85
ABSORBICA-Y FALL ARREST KIT K095AA00 / 01 Pg148
ABSORBICA-Y TIE-BACK L64YUT 150 Pg85
ACCU 2 E80002 Pg168
ACCU 2 DUO Z1 E80001 Pg168
AIRLINE R02Y 060 / 300 Pg141
Am’D M34A Pg99
Am’D PIN-LOCK M34A PL Pg101
AMPOULE BAT’INOX P41 Pg126
AMPOULE COLLINOX P56 Pg126
ANNEAU C40 Pg127
ASAP B71AAA / B071AA00 Pg93
ASAP FALL ARREST KIT K093AA00 / 01 / 02 / 03 Pg147
ASAP VERTICAL LIFELINE K091AA00 / 01 Pg146
ASAP LOCK B071BA00 Pg93
ASAP LOCK FALL ARREST KIT K094AA00 / 01 / 02 / 03 Pg147
ASAP LOCK VERTICAL LIFELINE K092AA00 / 01 Pg146
ASAP’SORBER L71AA / L071BA Pg94
ASAP’SORBER AXESS L071CA00 Pg94
ASCENSION B17A Pg114
ASCENTREE B19AAA Pg115
ASTRO BOD FAST C083AA / C083BA Pg57
ASTRO SIT FAST C085AA00 / 01 / 02 Pg57
AVAO BOD C071AA / CA Pg55
AVAO BOD FAST C071BA / DA Pg55
AVAO SIT C079AA Pg55
AVAO SIT FAST C079BA Pg55
AXIS 11 mm R074AA / R074BA Pg94/133
B
BALACLAVA A016CA00 / 01 Pg76
BASIC B18BAA Pg116
BAT’INOX P57 Pg126
BEANIE A016BA00 / 01 Pg76
BERMUDE C80 Pg62
Bm'D NEW 2019 M032AA00 / 01 Pg100
BOLTBAG C11 A Pg140
BUCKET S41AY / S41AR Pg141
C
CAPTIV M093AA00 Pg102
CARITOOL NEW 2019 P042AA00 / 01 Pg63
CHEST’AIR C98A Pg61
CHICANE NEW 2019 D022CA00 Pg109
COEUR P36AA / P36AS / P36AH Pg126
COEUR BOLT P36BA / P36BS / P36BH Pg126
COEUR PULSE P37S 12 Pg126
COLLINOX P55 Pg126
CONNEXION FAST C42 F Pg128
CONNEXION FIXE C42 100 / 150 / 200 Pg128
CONNEXION VARIO C42 V Pg128
CORDEX K52 Pg142
CORDEX PLUS K53 Pg142
CORE E99ACA Pg180
CRAB 6 64160 Pg142
CROLL S / L B16BAA / B016AA00 Pg115
D
DELTA P11 Pg102
DEMI ROND P18 Pg102
DUO S E80CHR Pg167
DUO Z1 E80BHR Pg167
DUO Z1 (x5) E80DHR Pg167
DUO Z2 E80AHB Pg167
E
e+LITE E02 P4 Pg179
EASHOOK OPEN M043AA00 / 01 Pg88/101
ECLIPSE S03Y Pg141
EXO AP HOOK D30AB 015 Pg110
F
FALCON C038AA00 / 01 / 02 / 03 / 04 Pg61
FALCON ASCENT C038BA00 / 01 Pg61
FALCON MOUNTAIN C038CA00 / 01 Pg61
FALL ARREST AND WORK POSITIONING KIT K096AA00 / 01 Pg148
FIXATION TACTIKKA E093CA00 Pg180
FIXE P05W / P05WN Pg121
FOOTAPE C47A Pg114
FOOTCORD C48A Pg114
FREINO M42 Pg101
G
GEMINI P66A Pg121
GO P15 Pg102
GRILLON L052AA Pg83/128
GRILLON HOOK L052BA / L052CA Pg83
GRILLON MGO L052DA00 / 01 Pg83
GRILLON PLUS L052EA00 / 01 Pg83
I
I’D EVAC NEW 2019 D020CA00 / 01 Pg107
I’D L NEW 2019 D020BA00 / 01 Pg107
I’D S NEW 2019 D020AA00 / 01 Pg107
IGUANE L001AA00 / 01 Pg88
J
JAG P45 Pg122
JAG RESCUE KIT NEW 2019 K090AA00 / 01 / 02 Pg150
JAG SYSTEM P044AA00 / 01 / 02 Pg122
JAG TRAXION P54 Pg122
JANE L50 60 / 100 / 150 Pg86
JET S02Y 250 / 300 / 350 Pg141
K
KIT ADAPT E93001 Pg180
KNEE ASCENT CLIP NEW 2019 D022EA00 Pg109
KNEE ASCENT LOOP NEW 2019 D022DA00 Pg109
KOOTENAY P67 Pg122
L
LEZARD L01 88
LIFT L54 63
LINER A016AA00 / 01 76
LOOPING C25 114
M
MAMBO 10,1 mm R32AB 200 / R32AY 200 134
MGO 110 MGO 110 88/101
MGO OPEN 60 MGOO 60 83/86/88/101
MICRO SWIVEL P58 XSO 127
MICRO TRAXION P53 121
MICROFLIP L33 025 / 040 / 055 87
MICROGRAB B53A 87
MINDER P60A 121
MINI P59A 121
MOBILE P03A 121
N
NEST S61 62
NEWTON C73AAA 51
NEWTON EASYFIT C73JFA / C73JFN 51
NEWTON EASYFIT HI-VIZ C73JFV 1U / 2U 51
O
OK M33A 99
OMNI M37 101
OXAN M72A 100
P
PANTIN B02CLA / B02CRA 115
PARALLEL 10,5 mm R077AA 133
PARTNER P52A 120
PAW P63 127
PERSONNEL 15L S44Y 015 140
PITAGOR C80 BR 62
PIXA 1 E78AHB 2 / 2UL 173
PIXA 2 E78BHB 2 / 2UL 173
PIXA 3 E78CHB 2 / 2UL 173
PIXA 3R E78CHR 2 173
PIXADAPT E78005 174
PIXA Z1 NEW 2019 E78DHB 2 173
POCHE E93990 180
POCHE PIXA E78001 174
PODIUM S071AA00 57
PORTAGE 30L S43Y 030 140
PORTO C33 140
PRO P46 120
PRO ADAPT E80004 168
PRO TRAXION P51A 121
PROGRESS L44A 86/114
PROGRESS ADJUST L44R 86/114
PROGRESS ADJUST-I L44IR 86
PROTEC C45 N 135
PUR’ANNEAU G006AA00 / 01 / 02 127
R
RACK D11 110
RAY 12 mm R091AA00 / 01 / 02 / 03 / 04 94
RESCUCENDER B50A 116
RESCUE P50A / P50AN 120
RIG D021AA00 / 01 107
RING C04620 / C04630 59/127
RING OPEN P28 63/86/102/127
ROLL MODULE P49 135
ROLLCAB P47 122
ROLLCLIP A P74 TL / P74 120
ROLLCLIP Z P75 TL / P75 SL 120
RUBBER E78002 174
S
SECUR C74A 115
SEGMENT 8 mm R076AA00 / 03 / 06 134
SEQUOIA NEW 2019 C069AA00 / 01 / 02 59
SEQUOIA SRT NEW 2019 C069BA00 / 01 / 02 59
SET CATERPILLAR P68 135
Sm’D M39A 100
SPATHA S92AN 142
SPIKY PLUS 79510 / 79520 / 79530 142
ST’ANNEAU C07 24 / 60 / 120 127
STEF S59 62
STRATO NEW 2019 A020AA00 / 01 / 02 / 03 73
STRATO HI-VIZ NEW 2019 A020CA00 / 01 73
STRATO VENT NEW 2019 A020BA00 / 01 / 02 / 03 73
STRATO VENT HI-VIZ NEW 2019 A020DA00 / 01 73
STRING NEW 2019 M090AA00 / 01 102
SWIVEL S / L P58 S / P58 L 127
SWIVEL OPEN P58 SO 127
T
TACTIKKA E93ACA 179
TACTIKKA + E89AAA / E89AAB / E89AAC 179
TACTIKKA +RGB E89ABA / E89ABB / E89ABC 179
TACTIKKA CORE E99ADA 179
TANDEM / TANDEM SPEED P21 / P21 SPE 122
TANGA M92000 102
TIBLOC B01BN 116
TOOLBAG S047AA00 / S47Y S / S47Y L 63
TOP C081AA00 / 01 55
TOP CROLL S / L C081BA00 / C081CA00 57
TRANSPORT 45L S42Y 045 140
TREESBEE C04110 128
TREESBEE SCREWLINK C04110 M 128
TWIN P65A 121
V
VECTOR 12,5 mm R078AA 133
VERTEX NEW 2019 A010AA00 / 01 / 02 / 03 / 04 / 05 / 06 73
VERTEX HI-VIZ NEW 2019 A010DA00 / 01 73
VERTEX VENT NEW 2019 A010CA00 / 01 / 02 / 03 / 04 / 05 / 06 73
VERTEX VENT HI-VIZ NEW 2019 A010EA00 / 01 73
VERTIGO TWIST-LOCK M40A RLA 88/101
VIZEN NEW 2019 A014AA00 74
VIZEN MESH NEW 2019 A021AA00 74
VIZIR NEW 2019 A015AA00 74
VIZIR SHADOW NEW 2019 A015BA00 74
VOLT / VOLT LT C72AFA 53
VOLT WIND / VOLT WIND LT C72WFA 53
VULCAN M73 100
Z
ZIGZAG NEW 2019 D022AA00 109
ZIGZAG PLUS NEW 2019 D022BA00 109
ZILLON L22A 025 / 040 / 055 87
​
From the Deep: the Petzl Adventure
From the Deep: the Petzl Adventure
A story about a company and its environment
Though rarely in the spotlight, climbing equipment represents more than a simple accessory for mountaineers. The evolution of such carefully designed equipment bears witness to the resourcefulness that climbers use to overcome increasingly challenging terrain, and also embodies their ethical choices. The tools that climbers use clearly reflect their approach to the mountain environment.
For forty years, Petzl and its founders have played a major role in the history of mountain exploration. With the golden age of caving as the starting point of its legacy - in which Fernand Petzl played a pioneering role - the manufacturer has explored the different realms of the vertical world: rock, ice, snow, the night... The company has also successfully applied its expertise to rescue and work at height.
To read about the Petzl adventure is to follow women and men committed to the vertical world and to the very heart of exploration. In constant interaction with an ever-evolving world, they create new means of progression.
• Authors: Sophie Cuenot and Hervé Bodeau
• Preface by Lynn Hill
• 272 pages
• Available in several versions:
- French (Z180 FR)
- English (Z180 EN)
- Spanish (Z180 ES)
- gift box (Z18001 FR)
• Editions Guérin - Chamonix Mont-Blanc
SPECIAL INDUSTRIAL SUPPLIES PTY LTD.
Tel National: 0861040506
Tel International: +27117925226
Cell: +27832514312
​
Unit 21, Acacia Industrial Park
17 Arbeid Avenue, Strydom Park.
South Africa.
​
SPECIAL INDUSTRIAL SUPPLIES PTY LTD.
Tel National: 0861040506
Tel International: +27117925226
Cell: +27832514312
​
Unit 21, Acacia Industrial Park
17 Arbeid Avenue, Strydom Park.
South Africa.
​
