SNOWCHAINS - RUD Snowchains

RUD snow chain catalogue 2021-1.jpg

21/22
SNOWCHAINS

SNOWCHAINS

RUD snow chain catalogue 2021-2.jpg

DVSE / Topmotive TecCat Online-Catalogue

RUD snow chains is data supplier for DVSE / Topmotive. Use the RUD snow chains data for your electronic parts catalogue. Easy, fast and uncomplicated!

DVSE / Topmotive TecCat Online-Catalogue

In the RUD snow chains online shop, you will find the right chain for your vehicle or for a specific tyre dimension. www.schneekettenberater.rud.com

Page 2
Contents
RUD snow chain catalogue 2021-4.jpg

Certifications and homologations

Important information

RUD was the first chain factory to gain the German TÜVCERT certificate under DIN EN ISO 9001 for its company management system.

The European standard EN 16662-1 became operative in July 2020 for snow chains for passenger cars up to light duty vehicles in the whole Europe. Some of RUD snow chain models have been already tested and certified according to this standard in general safety and performance requirements.

The snow chains that meet the Austrian standard Ö-Norm V5117 are still recognized in the countries where the Ö-Norm V5117 compliance was required. RUD snow chains fulfil SAE Class “S” (USA standard).

When there is a legal obligation to fit snow chains on heavy duty vehicles, they must comply with the Austrian standard Ö-Norm V5119. RUD snow chains for heavy duty vehicles meet the Austrian standard Ö-Norm V5119.

Laws and regulations can change. Please, always check the local country laws for any obligations, restrictions or limitations regarding the use of snow chains.

All RUD snow chains are engineered in Germany. Major components of RUD chains are objects of German and European patents.

Patents

Trucks and buses:
obligation carrying snow chains - EUROPE

Legal obligation to carry snow chains

Obligation to carry snow chains in winter conditions

No obligation

RUD snow chain catalogue 2021-5.jpg

We all know by now that the impact of plastic on the environment and consequently on the human health is devastating. RUD has decided to make its contribution in reducing the plastic use in its products. Its first step is the packaging, converting the plastic cases of some of its snow chains products in totally recyclable appealing carton boxes that show features, information, image of the contained product. Inside the carton box, a waterproof sack will allow to store the chains once used.

RUD moves towards a sustainable future

Is all the plastic really necessary?

Another important contribution is the introduction of the new RUDcompact© ÖKOmat, the first ECO-Friendly snow chain! All non-metallic components are made of bioplastics produced exclusively in Germany from renewable raw materials with 100% certified green electricity, are completely biodegradable and CO2 neutral.

RUDcompact® ÖKOmat

Page 4
Page 5
RUD snow chain catalogue 2021-6.jpg
Page 6
Page 7
RUD snow chain catalogue 2021-7.jpg

RUD fitting systems at a glance

The simplest and easiest to fit: RUD CENTRAX chains. Everything at a glance. No parts of the chain on the inner side of the wheel.

User-friendly, innovative quick fitting with the unique combination of textile and metal.

Easy fitting thanks to a strong spring-steel hoop. Especially easy to fit on rear-wheel drives.

Practical for front-wheel drives: Compact fitting. Just connect. Easy to tighten.

Page 8
RUD snow chain catalogue 2021-8.jpg

Minis, small, mid-range and top-range cars

SUVs and all-wheel drive vehicles

Camper vans

Transporters and delivery vans

The right RUD chain for your type of vehicle

RUD snow chain catalogue 2021-9.jpg

RUD chains in comparison

Ease of fitting and removal

Suitability for front-wheel drive

Suitability for rear-wheel drive

Suitability on snow

Suitability on ice

Smooth running (comfortable ride)

Body-to-tyre clearance inside the wheel housing

Rim protection

Quantity delivered for box/pair

Page 9
Page 10
RUD snow chain catalogue 2021-10.jpg

RUDcomfort CENTRAX

The automatic snow chain

  • Body-to-tyre clearance 0 mm



  • The chain is completely fitted from the outer side (1.)



  • Simply mount the adapter first



  • The chain can be fitted without any tools (2.)



  • The continuous chain net provides a very smooth ride



  • 3 mm square-section chain links



  • Certifications and Homologations: EN 16662-1 (Class 0-12mm), Ö-Norm V5117, TÜV

  • With 9 sizes to cover everything!

CENTRAX V with reinforced chain links for heavy duty application page 16.

RUD snow chain catalogue 2021-11.jpg

RUDinnov8 HYBRID

With innovative mounting bow

  • Internal body-to-tyre clearance 7mm

  • Perfect combination between textile and steel (1.)



  • Easy straight forward fitting and removal (2.)



  • Space-saving and light-weight



  • Excellent protection for light alloy rims

  • 3 mm square-section chain links



  • New and innovative setup system

  • New ECO-Friendly packaging (3.)



  • Certifications and Homologations: EN 16662-1 (Class 13mm), Ö-Norm V5117, TÜV Mit 13



  • With 13 sizes to cover everything!

Page 11
Page 12
RUD snow chain catalogue 2021-12.jpg

RUDcompact® ÖKOmat

The first ECO-Friendly snowchain

  • 9 mm clearance

  • Self-tensioning with automatic tension ratchet (1.)

  • All non-metallic components are made of bioplastics produced exclusively in Germany from renewable raw materials with 100% certified green electricity, are completely biodegradable and CO2 neutral (2.)

  • NEW integrated rim protection system

  • Cable fitting

  • ECO-Friendly packaging (3.)

  • Certifications and Homologations: EN 16662-1 (Class 9mm), Ö-Norm V5117, TÜV



  • With 15 sizes to cover everything!

RUD snow chain catalogue 2021-13.jpg

RUDcompact® easy2go

With patented permanent tensioning device / SELF TENSIONING

  • Body-to-tyre clearance 9 mm

  • Patented permanent tensioning device (1.)

  • Diagonal configuration track pattern

  • Cable fitting

  • 3 mm square-section chain links

  • NEW integrated rim protection system (2.)

  • No stopping and re-tensioning after fitting

  • New ECO-Friendly packaging (3.)

  • Certifications and Homologations: EN 16662-1 (Class 13mm), Ö-Norm V5117, TÜV

  • With 11 sizes to cover everything!

Page 13
Page 14
RUD snow chain catalogue 2021-14.jpg

RUDcompact® GRIP

  • Body-to-tyre clearance 9 mm

  • Ideal for front and rear-wheel drives

  • Cable fitting (1.)

  • 3 mm square-section chain links

  • NEW integrated rim protection system (2.)

  • New ECO-Friendly packaging (3.)

  • Certifications and Homologations: EN 16662-1 (Class 9mm), Ö-Norm V5117, TÜV

  • With 14 sizes to cover everything!

GRIP V with reinforced square-section chain links for heavy duty page 17.

Practical and robust

Page 15
RUD snow chain catalogue 2021-15.jpg

RUDmatic® CLASSIC

  • Body-to-tyre clearance 14 mm

  • Ideal for both front and rear-wheel drive

  • Easy fitting thanks to a strong spring-steel hoop (1.)

  • 4 mm round chain links with wedge-shaped link

  • Integrated rim protection (2.)

  • Certifications and Homologations: EN 16662-1 (Class 17mm), Ö-Norm V5117, TÜV

  • With 27 sizes to cover everything!

CLASSIC V with reinforced square-section chain links for heavy duty page 18.

Classic comfort hoop chain for quick fitting and removal
under low-clearance wheel housings

RUD snow chain catalogue 2021-16.jpg

RUDcomfort CENTRAX V

No need to reach behind the wheel – the automatic snow chain

  • Body-to-tyre clearance 0 mm

  • The chain is completely fitted from the outer side (1.)

  • Simply mount the adapter first

  • The chain can be fitted without any tools (2.)

  • The continuous chain net provides a very smooth ride

  • 4 mm round chain links

  • Certifications and Homologations: EN 16662-1 (Class 0-16mm), Ö-Norm V5117, TÜV

  • With 7 sizes to cover everything!

Page 16
Page 17
RUD snow chain catalogue 2021-17.jpg

RUDcompact® GRIP V

Practical and robust

  • Body-to-tyre clearance 16 mm

  • Cable fitting (1.)

  • Ideal for both front and rear-wheel drive

  • 4,5 mm square-section chain links (2.)

  • Certifications and Homologations: Ö-Norm V5119, TÜV



  • With 10 sizes to cover everything!

RUD snow chain catalogue 2021-18.jpg

RUDmatic® CLASSIC V

With reinforced square-section chain links for heavy duty

  • Body-to-tyre clearance 16 mm

  • Ideal for both front and rear-wheel drive

  • Easy fitting thanks to a strong spring-steel hoop (1.)

  • Perfect for fitting on the outer tyre of twin wheels

  • From 4,5 mm square-shaped chain links (2.)

  • Certifications and Homologations: Ö-Norm V5119, TÜV

  • With 28 sizes to cover everything!

Page 18
RUD snow chain catalogue 2021-19.jpg

RUDmatic® MAXI

Powerful traction for trucks and buses

  • Body-to-tyre clearance 22 mm

  • Reversible, dense chain mesh

  • Spring steel hoop chain for virtually automatic fitting and removal

  • Two-colour tensioning chain for optimally controlled fitting (1.)

  •

  • 5 mm round chain links with additional traction elements (2.)

  • Perfect for fitting on the outer tyre of twin wheels

  • Homologations: Ö-Norm V5119

  • With 26 sizes to cover everything!

Page 19
Page 20
RUD snow chain catalogue 2021-20.jpg

RUDcomfort CENTRAX

Tyre Sizes

RUD snow chain catalogue 2021-21.jpg
Page 21
Page 22
RUD snow chain catalogue 2021-22.jpg

RUDinnov8 HYBRID

Tyre Sizes

Page 23
RUD snow chain catalogue 2021-23.jpg

RUDcomfort CENTRAX V

Tyre Sizes

Page 24

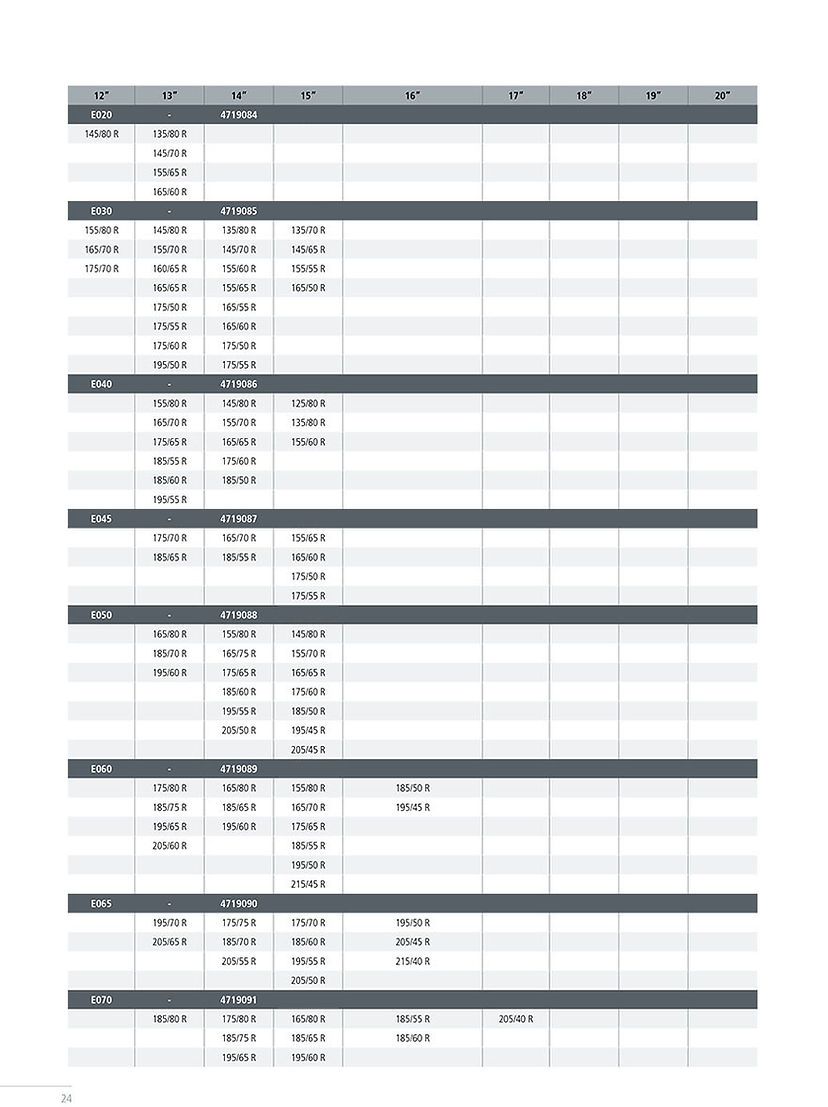

RUD snow chain catalogue 2021-24 .jpg

RUDcompact® ÖKOmat

Tyre Sizes

RUD snow chain catalogue 2021-25.jpg
Page 25
Page 26
RUD snow chain catalogue 2021-26.jpg

RUDcompact® easy go

Tyre Sizes

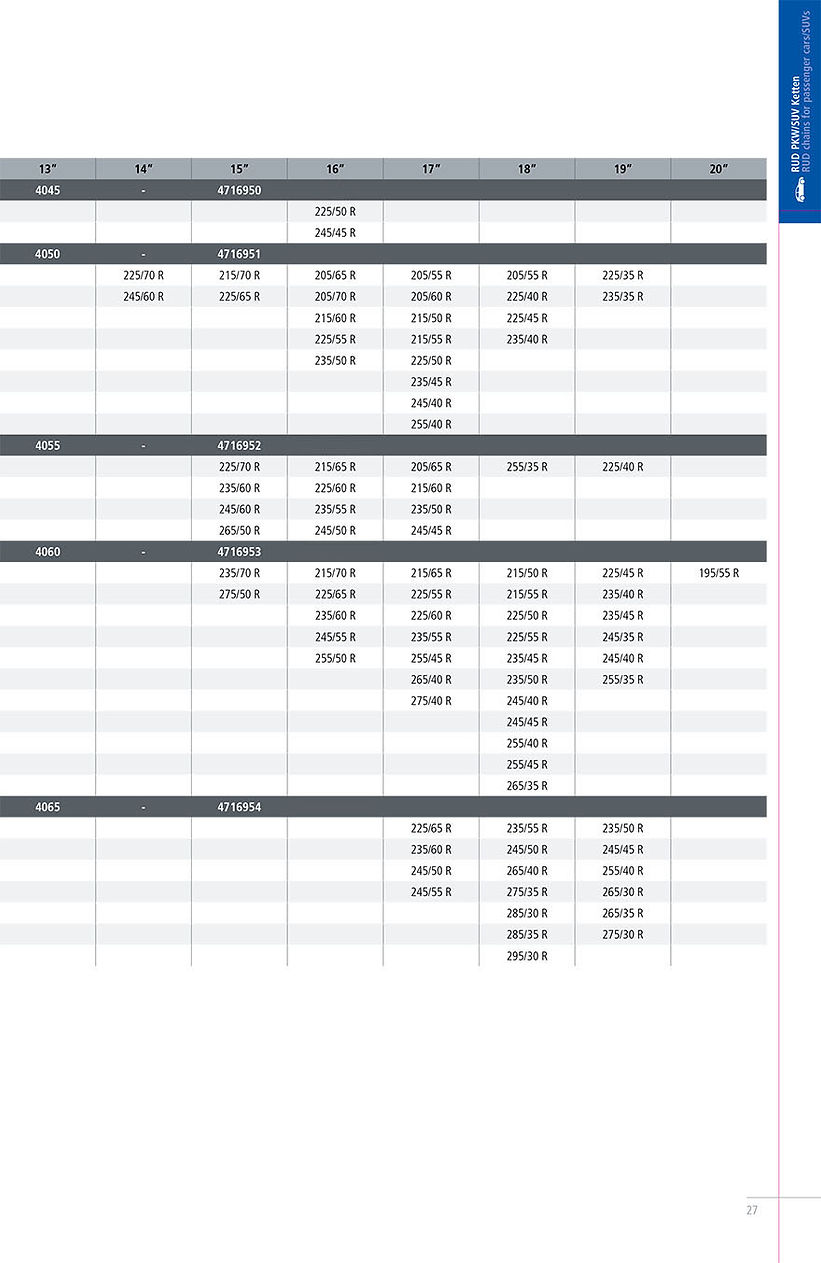

RUD snow chain catalogue 2021-27 .jpg
Page 27
Page 28
RUD snow chain catalogue 2021-28.jpg

RUDcompact® GRIP

Tyre Sizes

RUD snow chain catalogue 2021-29.jpg
Page 29
Page 30
RUD snow chain catalogue 2021-30.jpg

RUDmatic® CLASSIC

Tyre Sizes

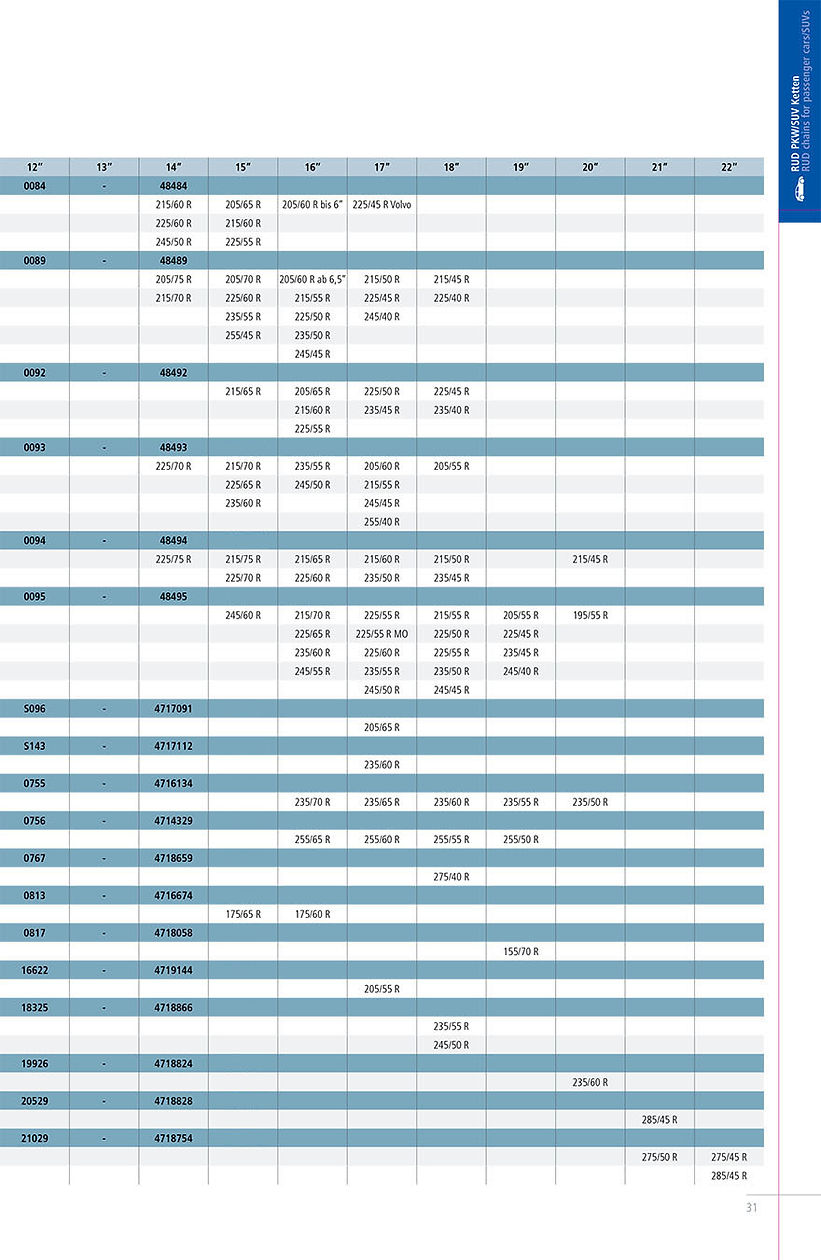

RUD snow chain catalogue 2021-31 .jpg
Page 31
Page 32
RUD snow chain catalogue 2021-32.jpg

RUDcompact® GRIP V

Tyre Sizes

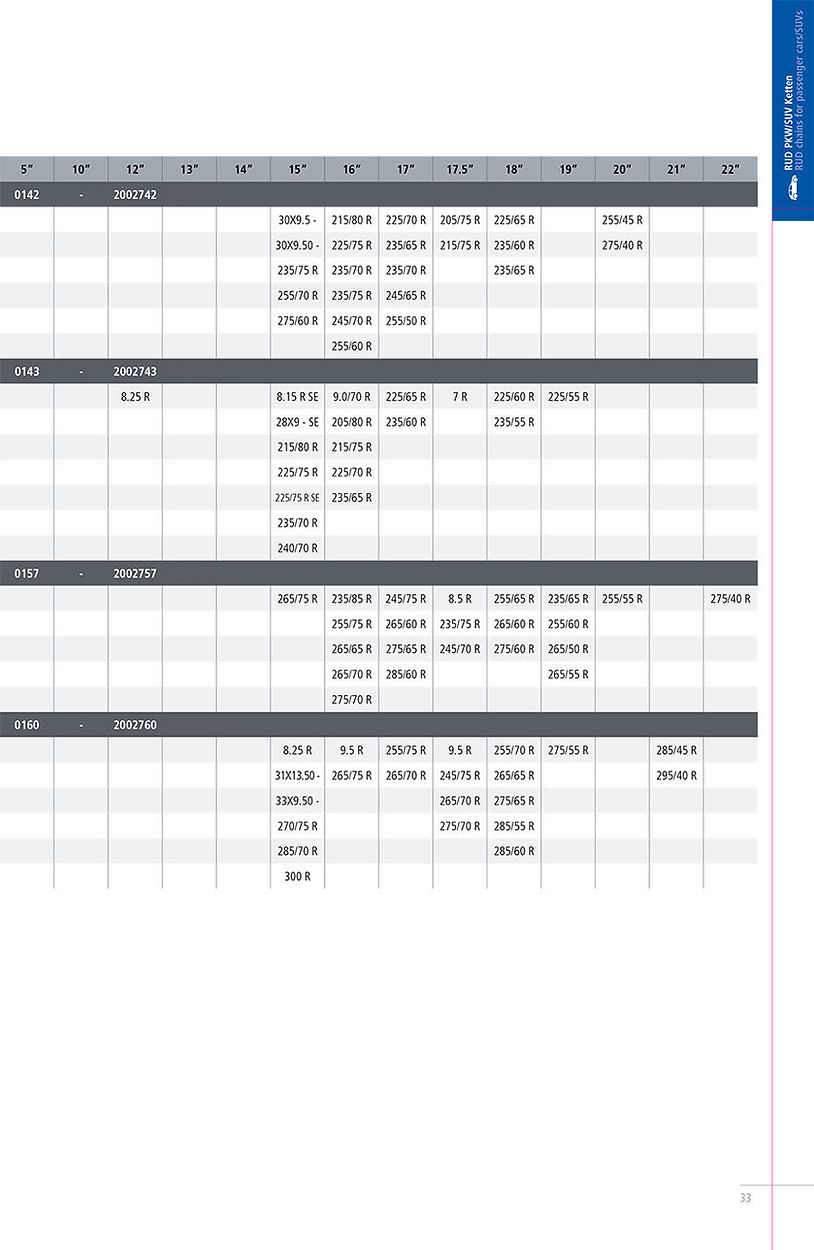

RUD snow chain catalogue 2021-33 .jpg
Page 33
Page 34
RUD snow chain catalogue 2021-34 .jpg

RUDmatic® CLASSIC V

Tyre Sizes

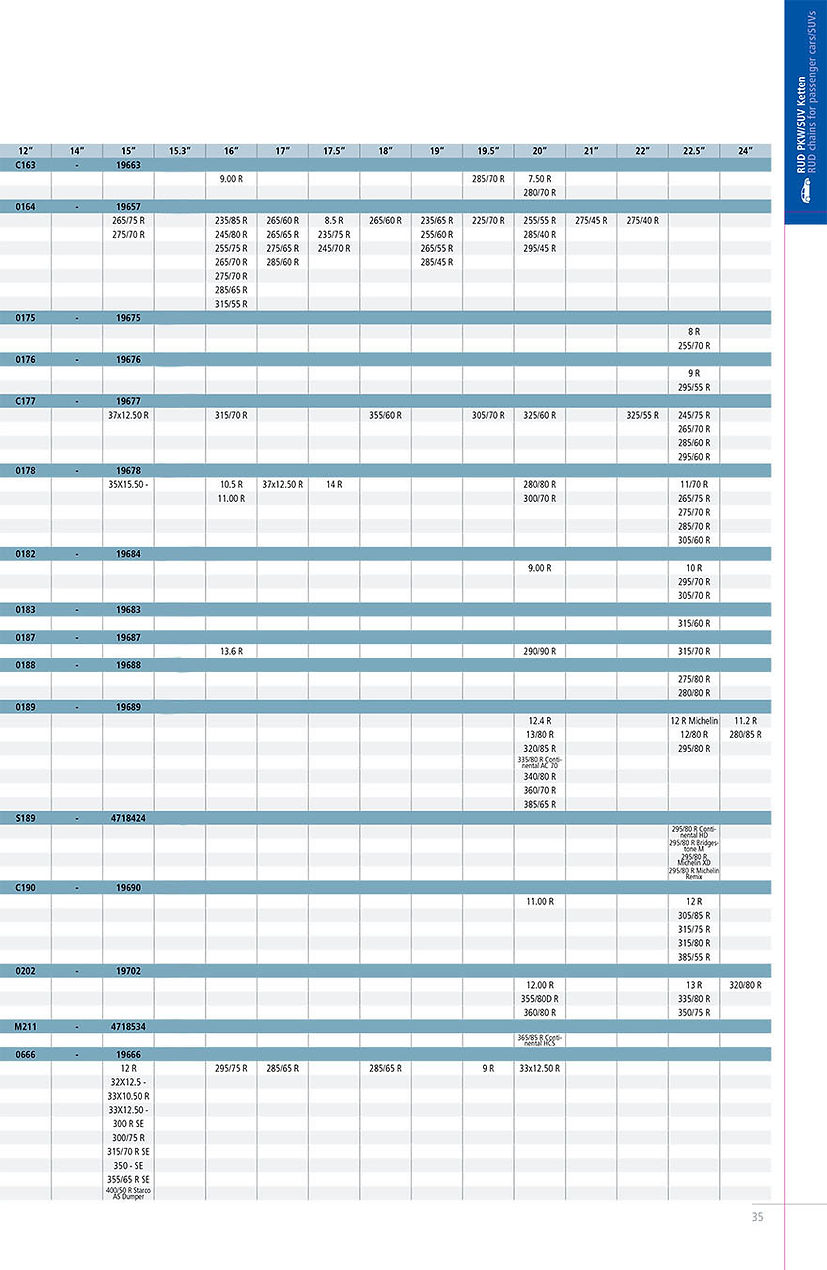

RUD snow chain catalogue 2021-35 .jpg
Page 35
Page 36
RUD snow chain catalogue 2021-36.jpg
RUD snow chain catalogue 2021-37.jpg
Page 37
RUD snow chain catalogue 2021-38.jpg
Page 38
RUD snow chain catalogue 2021-39.jpg
Page 39
RUD snow chain catalogue 2021-40.jpg
Page 40
RUD snow chain catalogue 2021-41.jpg
Page 41
RUD snow chain catalogue 2021-42.jpg
Page 42
RUD snow chain catalogue 2021-43.jpg
Page 43
RUD snow chain catalogue 2021-44.jpg
RUD snow chain catalogue 2021-45.jpg
Page 44
Page 45
RUD snow chain catalogue 2021-46.jpg
RUD snow chain catalogue 2021-47.jpg
Page 46
Page 47
RUD snow chain catalogue 2021-48.jpg
Page 48
RUD snow chain catalogue 2021-49.jpg
Page 49
RUD snow chain catalogue 2021-50.jpg
Page 50
RUD snow chain catalogue 2021-51.jpg
Page 51
RUD snow chain catalogue 2021-52.jpg
Page 52
RUD snow chain catalogue 2021-53.jpg
Page 53
RUD snow chain catalogue 2021-54.jpg
Page 54
RUD snow chain catalogue 2021-55.jpg
Page 55
RUD snow chain catalogue 2021-56.jpg
Page 56
RUD snow chain catalogue 2021-57.jpg
Page 57
RUD snow chain catalogue 2021-58.jpg
Page 58
RUD snow chain catalogue 2021-59.jpg
Page 59
RUD snow chain catalogue 2021-60.jpg
Page 60
RUD snow chain catalogue 2021-61.jpg
Page 61
RUD snow chain catalogue 2021-62.jpg
Page 62
RUD snow chain catalogue 2021-63.jpg
Page 63
RUD snow chain catalogue 2021-64.jpg
Page 64
RUD snow chain catalogue 2021-65.jpg
Page 65
RUD snow chain catalogue 2021-66.jpg
Page 66
RUD snow chain catalogue 2021-67.jpg
Page 67
RUD snow chain catalogue 2021-68.jpg
Page 68
Page 69
RUD snow chain catalogue 2021-69.jpg

RUD chains in comparison

Ease of fitting and removal

Suitable for transporters/ trucks

Suitable for buses

Suitable for trucks/off-road

Suitable for snow clearance

Suitable for tractors/forestry vehicles

4x4

Quad

Forklift

Unimog

Wheel loader

Forestry equipment

Off road truck

Truck

Bus

Tractor

RUD snow chain catalogue 2021-70.jpg

ERLAUprofi® ARKTIK

The high-traction honeycomb chain for snow clearance

  • This link-ring system provides the ultimate traction

  • Extremely dense, honeycomb chain mesh with link-ring system (1.)

  • Effective link height 11 mm and extremely high-traction angle links (2.)

  • Especially quiet running

  • High mileage and service life

  • Continuous closed chain mesh

  • Homologations: Ö-Norm V5119

Page 70
RUD snow chain catalogue 2021-71.jpg

ERLAUprofi® ALLIGATOR PLUS

Unequalled traction for snow clearance and forestry work

  • Link-ring system provides the highest traction

  • Effective link height 11 mm and extremely high-traction angle links

  • High mileage and long service life

  • Two drop forged locking hooks guarantee a sure-footed and smooth drive (1.)

  • Good self-cleaning

  • Chain mesh with link-ring system (2.)

  • Continuous, closed chain mesh

  • Homologations: Ö-Norm V5119

Page 71
RUD snow chain catalogue 2021-72.jpg

RUDprofi® BISON

High-endurance runner for the most difficult terrain and snow clearing service

  • Heavy-duty chain with especially high traction

  • Very dense, double chain mesh configuration for maximum grip

  • Extremely resistant to wear and fracture

  • Reversible chain mesh (1.)

  • Manganese-chrome-nickel alloy steel

  • Available in 9 and 11 mm wire diameters

  • Continuous, closed chain mesh

  • In wire diameter 11 mm chain mesh welded into side chain

Page 72
RUD snow chain catalogue 2021-73.jpg

RUDprofi® PROFILGREIFSTEG PRO

For difficult terrain and extreme snow clearing service

  • Particularly strong heavy-duty chain

  • Very dense chain mesh for the highest possible traction

  • Extremely resistant to wear and fracture

  • Specially developed profile grip links for maximum traction (1.)

  • Longer than average service life

  • Manganese-chrome-nickel alloy steel

  • Continuous, closed chain mesh

  • The particular shape of the closing hook enables a fast, easy and safe hooking of the side chain specially on the rear end of the tyres (2.)

  • Homologations: Ö-Norm V511

Page 73
RUD snow chain catalogue 2021-74.jpg

RUDprofi® PROFILGREIFSTEG

For deep, difficult forest terrain or snow conditions

  • Economical heavy-duty chain

  • Dense, alternating track chain mesh for the highest possible traction

  • Extremely resistant to wear and fracture

  • Specially developed profile grip links for maximum traction (1.)

  • Longer than average service life

  • Manganese-chrome-nickel alloy steel

  • Continuous, closed chain mesh

  • The particular shape of the closing hook enables a fast, easy and safe hooking of the side chain specially on the rear end of the tyres (2.)

  • Homologations: Ö-Norm V5119

Page 74
RUD snow chain catalogue 2021-75.jpg

RUDprofi® SUPERGREIFSTEG

Powerful traction on snow coverings and ice

  • Continuous chain mesh for maximum traction and high mileage

  • Reversible chain with reinforced, crownwelded grip links for maximum traction (1.)

  • Fine-grain, high-grade, manganese-chrome-nickel-alloy steel

  • Continuous, closed chain mesh

  • The particular shape of the closing hook enables a fast, easy and safe hooking of the side chain specially on the rear end of the tyres (2.)

  • Homologations: Ö-Norm V5119

Page 75
RUD snow chain catalogue 2021-76.jpg

RUDprofi® GREIFSTEG

Intelligent chain engineering to combat winter hazards. Available as single or twin chain

  • Diamond pattern chain without connector on the tyre tread

  • Additional grip links increase traction (1.)

  • Economical due to reversible chain mesh

  • Crown-welded, movable grip links

  • Fine-grain, high-grade manganese-chrome-nickel alloy steel

  • Also available as twin chain (2.)

  • Homologations: Ö-Norm V5119

Page 76
RUD snow chain catalogue 2021-77.jpg

RUDprofi® CARGO

Long-life chain for normal and moderately heavy use. Available as single or twin chain

  • Also stands up to heavier use

  • Reversible chain mesh with high-grip, square links (1.)

  • Simple and easy to fit and remove

  • Long service life

  • High-grade steel, hardened for greater wear-resistance

  • High-grip, diamond pattern chain mesh without connector on the tyre tread

  • Also available as twin chain (2.)

  • Homologations: Ö-Norm V5119

Page 77
RUD snow chain catalogue 2021-78.jpg

RUDprofi® ALLIGATOR

For snow clearance and forestry work

  • High-grip, square links

  • Especially quiet running

  • Reversible chain mesh with square links for good traction (1.)

  • High-grade steel, hardened for greater wear-resistance

  • In wire diameter from 8,5 to 10,5 mm chain mesh welded into side chain

  • Continuous, closed chain mesh (2.)

  • Homologations: Ö-Norm V5119

Page 78
RUD snow chain catalogue 2021-79.jpg

RUDprofi® ALLIGATOR 45G

For snow clearance and frequent driving

  • High-grip, square links in 7,5mm diameter wire

  • Chain links in permanent 45° angle, so all links are in constant use (1.)

  • Increased available wear-volume for a longer service life.

  • Especially quiet running

  • Reversible chain mesh

  • High-grade steel, hardened for greater wear-resistance

  • Continuous, closed chain mesh (2.)

  • Homologations: Ö-Norm V5119

Page 79
RUD snow chain catalogue 2021-80 .jpg

RUDprofi® AGRAR DUO

Special chain for agricultural usage

  • Chain mesh with rectangular configuration (1.)

  • Reversible chain with additional grip links for a longer service life (2.)

  • Sure-footed

  • High-grade steel, hardened for greater wear-resistance

Page 80
Page 81

Tyre dimensions for passenger cars

Tyre dimensions for trucks (e.g. 4x4/Bus)

Special vehicles (e.g. forklift)

RUD snow chain catalogue 2021-81.jpg

Description of the tyre size

On the side wall of the tyre you can find all important information like the tyre size or the complete description of the tyre

  • Please check whether the owner’s manual for your vehicle contains any recommendations, specific instructions, or restrictions regarding the use of snow chains.



  • Please read the fitting instructions enclosed with your chains, and observe all warning notices.



  • Please remember that we will not accept any claim under guarantee unless all guidelines and regulations have been observed.



  • Specifications subject to change without notice.

Norm/ Section width in mm

Nominal Aspect

(=High/Section)

Ratio Tyre construction

/Radial

Rim diameter in inches

Norm/ Section width in mm

Nominal Aspect

(=High/Section)

Ratio Tyre construction

/Radial

Rim diameter in inches

Norm/ Section width in mm

Nominal Aspect

(=High/Section)

Ratio Tyre construction

/Radial

Rim diameter in inches

Norm/ Section width in mm

Nominal Aspect

(=High/Section)

Ratio Tyre construction

/Radial

Rim diameter in inches

Norm/ Section width in mm

Nominal Aspect

(=High/Section)

Ratio Tyre construction

/Radial

Rim diameter in inches

Notes

RUD snow chain catalogue 2021-82.jpg
Page 82
RUD snow chain catalogue 2021-83.jpg
Page 83
RUD snow chain catalogue 2021-84.jpg
Page 84
RUD snow chain catalogue 2021-85.jpg
Page 85
RUD snow chain catalogue 2021-86.jpg
Page 86
RUD snow chain catalogue 2021-87.jpg
Page 87

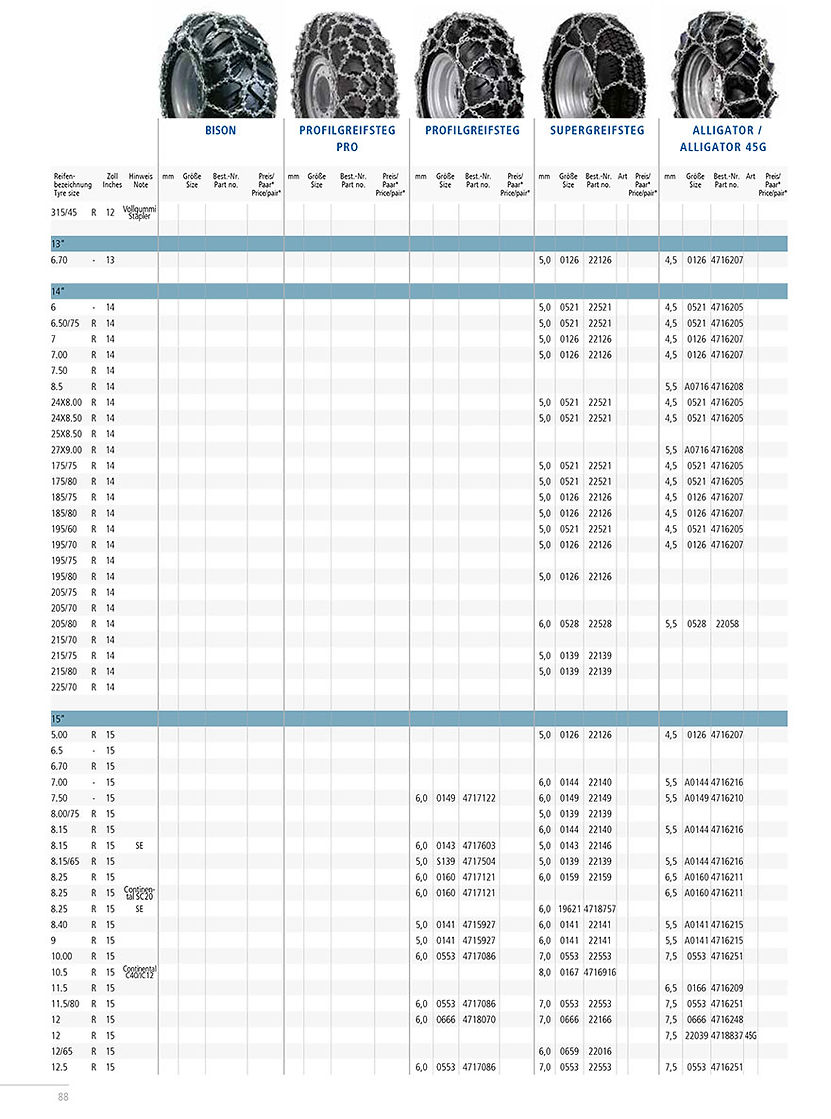

RUD snow chain catalogue 2021-88 .jpg
Page 88
RUD snow chain catalogue 2021-89.jpg
Page 89
RUD snow chain catalogue 2021-90.jpg
Page 90
RUD snow chain catalogue 2021-91.jpg
Page 91
RUD snow chain catalogue 2021-92.jpg
Page 92
RUD snow chain catalogue 2021-93.jpg
Page 93
RUD snow chain catalogue 2021-94.jpg
Page 94
RUD snow chain catalogue 2021-95.jpg
Page 95

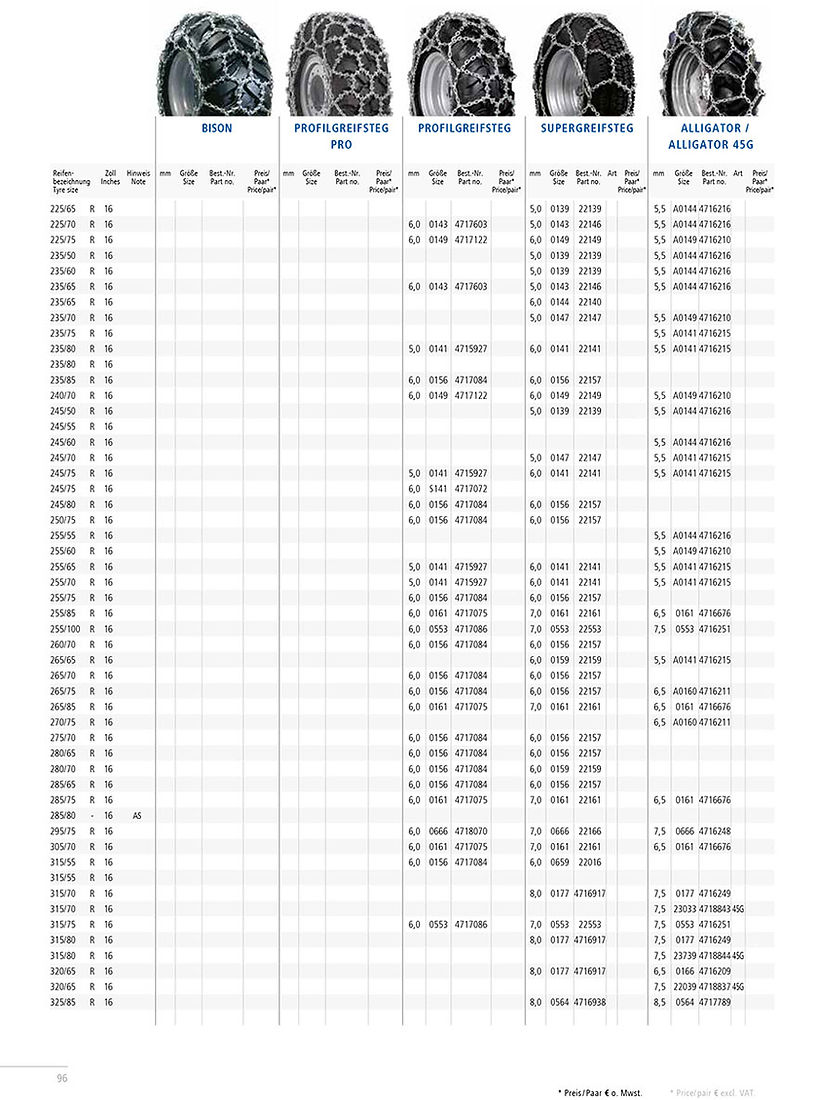

RUD snow chain catalogue 2021-96 .jpg

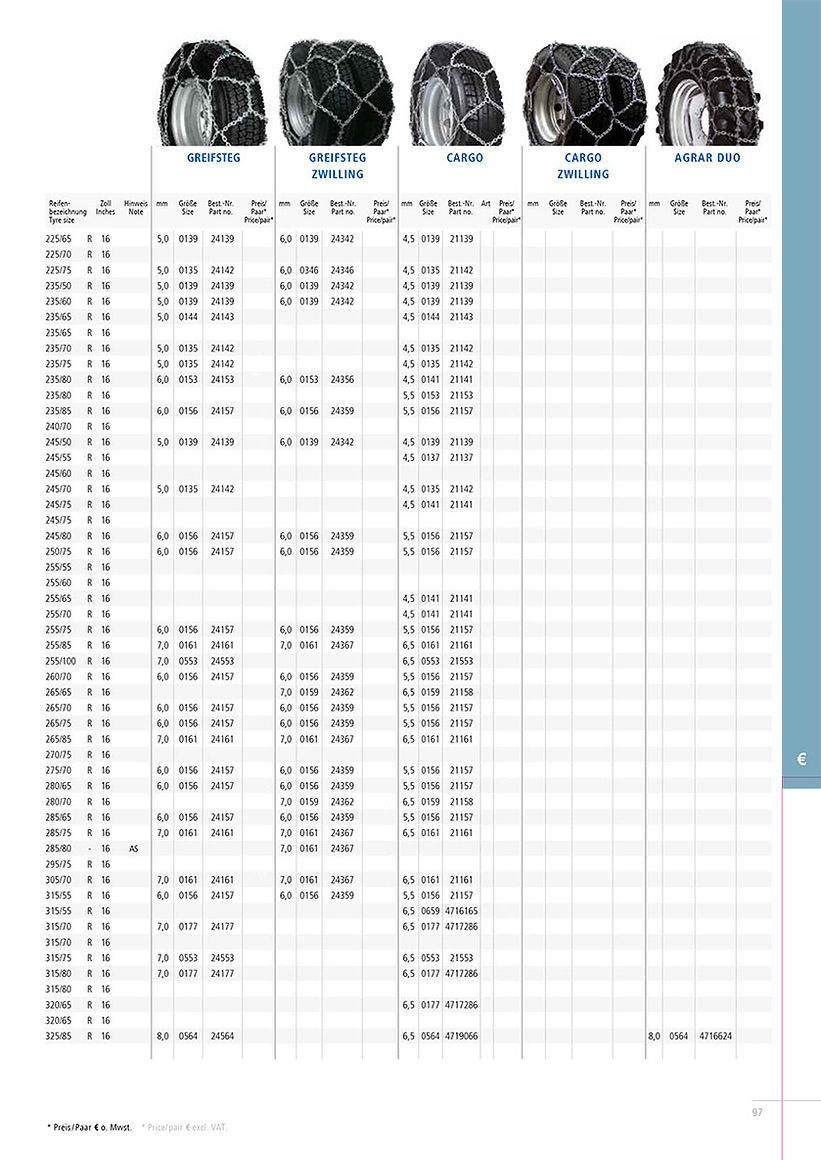

RUD snow chain catalogue 2021-97.jpg
Page 96
Page 97
RUD snow chain catalogue 2021-98.jpg
Page 98
RUD snow chain catalogue 2021-99.jpg
Page 99
RUD snow chain catalogue 2021-100.jpg
Page 100
RUD snow chain catalogue 2021-101.jpg
Page 101
RUD snow chain catalogue 2021-102.jpg
Page 102
RUD snow chain catalogue 2021-103.jpg
RUD snow chain catalogue 2021-104.jpg
Page 103
Page 104
RUD snow chain catalogue 2021-105.jpg
Page 105
RUD snow chain catalogue 2021-106.jpg
Page 106
RUD snow chain catalogue 2021-107.jpg
Page 107
RUD snow chain catalogue 2021-108 .jpg
Page 108
RUD snow chain catalogue 2021-109.jpg
Page 109
RUD snow chain catalogue 2021-110.jpg
Page 110
RUD snow chain catalogue 2021-111.jpg
Page 111
RUD snow chain catalogue 2021-112.jpg
Page 112
RUD snow chain catalogue 2021-113.jpg
Page 113
RUD snow chain catalogue 2021-114.jpg
Page 114
RUD snow chain catalogue 2021-115.jpg
Page 115
RUD snow chain catalogue 2021-116.jpg
Page 116
RUD snow chain catalogue 2021-117.jpg
Page 117
RUD snow chain catalogue 2021-118.jpg
Page 118
RUD snow chain catalogue 2021-119.jpg
Page 119
RUD snow chain catalogue 2021-120 .jpg
Page 120
RUD snow chain catalogue 2021-121.jpg
Page 121
RUD snow chain catalogue 2021-122.jpg
Page 122
RUD snow chain catalogue 2021-123.jpg
Page 123
Page 124
RUD snow chain catalogue 2021-124.jpg
RUD snow chain catalogue 2021-125.jpg
Page 125
RUD snow chain catalogue 2021-126 .jpg
Page 126
RUD snow chain catalogue 2021-127.jpg
Page 127
RUD snow chain catalogue 2021-128.jpg
Page 128
RUD snow chain catalogue 2021-129.jpg
Page 129
RUD snow chain catalogue 2021-130.jpg
Page 130
RUD snow chain catalogue 2021-131.jpg
Page 131
RUD snow chain catalogue 2021-132.jpg
Page 132
RUD snow chain catalogue 2021-133.jpg

Instructions for use and technical information

Chain fitting instructions

The tyre sizes are based on the standard dimensions and standard wheel rims as specified under ETRTO (European standard) at the time of manufacture. Therefore a correct fit cannot always be guaranteed for retreaded tyres and twin tyres with a non-standard spacing. When making a purchase, please follow your vehicle manufacturer’s recommendations concerning the use of snow chains, which you will find in the instruction manuals. Please follow the specific instructions of the vehicle manufacturer. There is a range of different tread depths for earth-moving machines (EM tyres) (L2, L3, L4, L5).



Therefore it is essential to state the tread designation. If in doubt, please state the tyre dimensions: diameter and width of the tyre. This catalogue contains chain types and sizes which fit the most common tyre sizes. Sizes not stated here are available on request. Please tell us the tyre size and manufacturer. To be sure, please also tell us the exact dimensions of the tyre: Diameter and width of tyre (D+W). For vehicles with „low” clearances between tyres and wheel housings, we also need the dimensions F and H. For twin-tyres, please also state dimension R.























Minimum clearances:

Page 133
RUD snow chain catalogue 2021-134.jpg

Instructions for use and technical

The versatile automatic chain – quickly and easily brought into operation at the flick of a switch from driver‘s cab when winter road conditions turn hazardous.



Effective anti-skid device – takes effect even at slow speeds

Automatic safety at the flip of a switch

Driver operated chain wheel Chain wheel with 15- or 18 chain strands

Page 134
RUD snow chain catalogue 2021-135.jpg
  • The action of the springs spreads the chains out efficiently, even at a slow speed

  • The chain strands pass under the tyres like a “chain carpet”

  • Vibration-free operation, which ensures smooth action, and lengthens the service life of both chain wheels, system and tyre

  • Superior grip, even on icy roads



Fields of application:

  • Road haulage

  • Supply and distribution vehicles

  • Municipal vehicles

  • Fire services

  • Vehicles carrying hazardous goods

  • Rescue vehicles

  • Buses

  • Public transport vehicles

Page 135
RUD snow chain catalogue 2021-136.jpg

ROTOGRIP® CS COMPACT SOLUTION

  • Simple, time-saving fittings

  • Low maintenance

  • Low-profile systems with vehicle-specific adapters

  • Extended swivel range to maximize fitting options

  • Compact, forged-steel swivel housing, with patented drive mechanism

  • Pneumatically double driven-action cylinder

  • Traction is provided by a range of chain wheels

The result of systematic improvements of the existing ROTOGRIP-systems

Ease of fitting and removal

Suitable for transporters/trucks

Suitable for trucks/off-road

Suitable for buses

Suitable for snow clearance

Suitable for tractors/forestry vehicles

Page 136
RUD snow chain catalogue 2021-137.jpg
  • Modular system of universal adapters

  • The extension of the piston rod is connected to the swivel arm

  • Single-action pneumatic cylinder

  • Traction is provided by chain wheels of various types

The classic Rotogrip-system

ROTOGRIP® CV
CLASSIC VERSION

  • The swing-arm assembly unit has a compact, weight-saving design, and can swivel through an angle well over 180°

  • Electric linear drive

  • The chain wheel’s flexible spreader ring gives low speed performance, and a more even distribution of the chain strands

  • Adapter with universal mounting hardware

  • Low-profile chain wheel with 8 single strands

  • ROTOGRIP chain wheels are easy to mount

  • The individual parts have a exceptionally long service life, and are easy to replace

  • The special profile on the friction ring reduces icing up

Automatic safety at the flip
of a switch

ROTOGRIP®LT
LIGHT TRUCK

Page 137
RUD snow chain catalogue 2021-138.jpg

For cars, light trucks, trucks or utilities                                                            Description                      Packaging      Part No.

Spare parts and accessories

RUD snow chain catalogue 2021-139.jpg

For cars, light trucks, trucks or utilities                                                           Description                     Packaging        Part No.

Page 138
Page 139
RUD snow chain catalogue 2021-140.jpg

For RUD Centrax                                                                       Description                                   Packaging        Part No.

Page 140
RUD snow chain catalogue 2021-141.jpg
Page 141
bottom of page
